| Model | MAZ-502 |
| Seating | 3 |
| Net-weight, kg [lb] | 7,700 [16,940] |
| Full load weight, kg [lb] | 11,925 [26,235] |
| Load weight, kg [lb] | 4,000 [8,800] |
| Total trailer weight, kg | - |
| Length, mm [in.] | 7150 [281.5] |
| Width, mm [in.] | 2700 [106] |
| Height, mm [in.] | 2725 [107] |
| Base, mm [in.] | 4520 [178] |
| Minimal clearance, mm [in.] | 350 [13.8] (under rear axle) |
| Minimal radius of turn, m [yards] | 12 [13.2] |
| Maximum speed, km/h [mi/h] | 50 [31] |
| Maximum horsepower, hp [kW] | 135 [101] (@ 2,000 rpm) |
| Engine capacity, liters [cm3] | 4.65 [4650] |
| Compression ratio | 17:1 |
| Gear ratios | 6.17/3.40/1.79/1.00/0.78/R-6.69 |
| Main gear ratio | 1.18-high/2.16-low |
| Mileage, liters/100km [mi/gal] | 45 [5.2] (@40 km/h) |
| Breaking distance, m | - |
| Fuel tank capacity, liters [gal] | 225 X 2 [59.4 X 2] |
| Years of production | 1957-1965 |
| Type of engine | YaAZ-M204V, 2-tact, 4 cyl., diesel |
| Wheel formula | 4 X 4 |

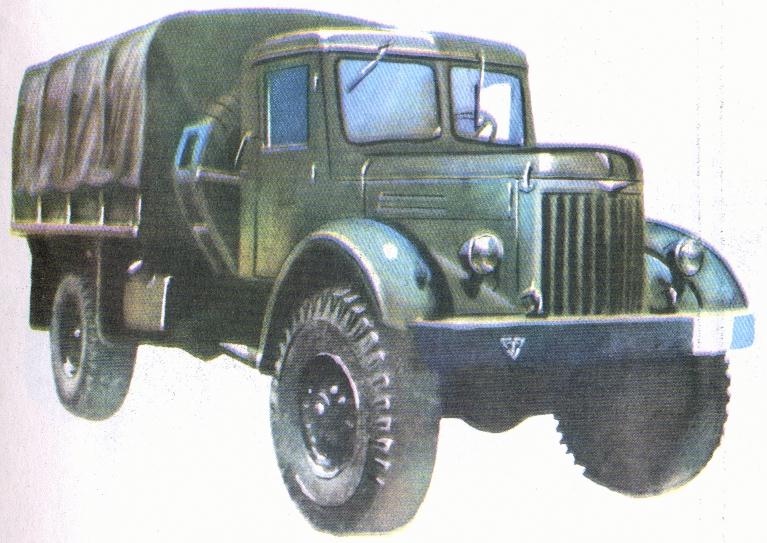

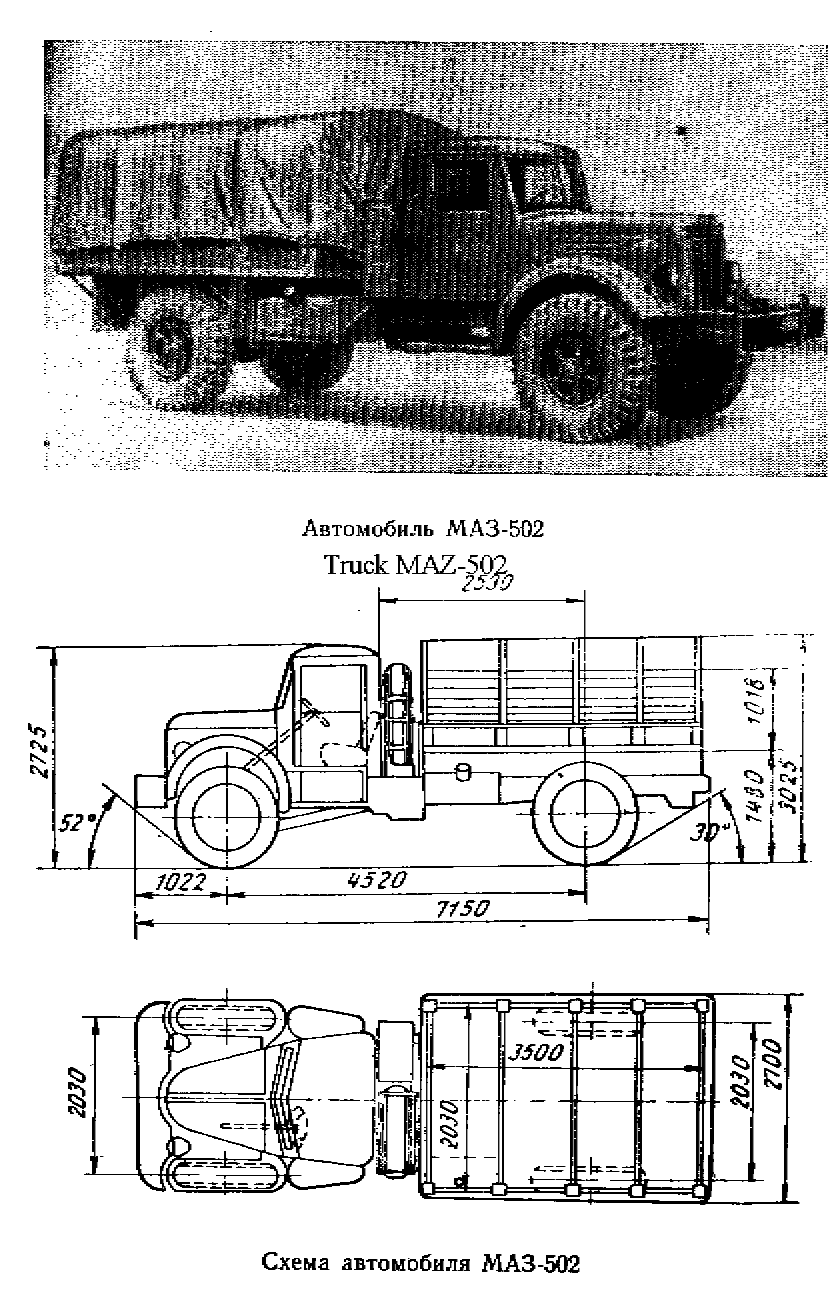

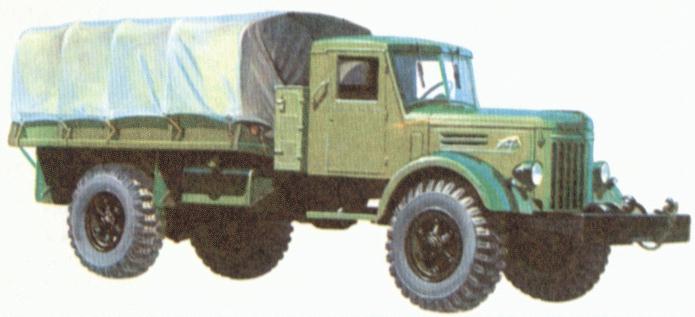

| Pictures | 71 KB (color, side view,
drawing [106]) 51 KB (b/w, side view w/ technical info [1]) 70 KB (color, front view [3]) 27 KB (color, side view, drawing [3]) |
The drivers of these trucks had the comfort of a heated interior, which was a luxury for Soviet trucks in 1950s.
There is also a dump-truck model
MAZ-205,
a tractor model MAZ-501 and a 4 X 2 flatbed
truck MAZ-200.
