MAZ-205

SovAvto Website.



Model  MAZ-205
Seating 3
Net-weight, kg 6600
Full load weight, kg 12825
Load weight, kg 6000 on hard surface roads / 5000 on dirt roads
Total trailer weight, kg -
Length, mm 6065
Width, mm 2640
Height, mm 2430
Base, mm 3800
Minimal clearance, mm 290
Minimal radius of turn, m 9.0
Maximum speed, km/h 52
Maximum horsepower, hp 120 @ 2,000 rpm
Engine capacity, liters 4.65
Compression ratio 17:1
Gear ratios 6.17/3.40/1.79/1.00/0.78/R-6.69
Main gear ratio 9.81
Mileage, liters/100km 35 (at 35 km/h)
Breaking distance, m -
Fuel tank capacity, liters 105L (diesel fuel)
Years of production 1947-1966
Type of engine YaAZ-M204A, 2-tact, 4-cyl diesel
Wheel formula 4 X 2
Pictures  47 KB (b/w, side view, 1948 [3])

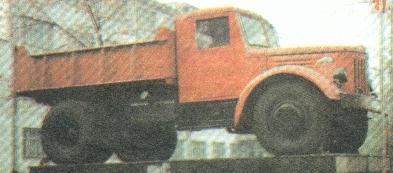

15 KB (color, side view, monument [3])

66 KB (color, side view, drawing [106])

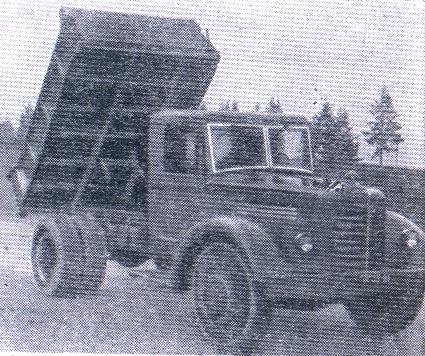

56 KB (b/w, front view, 1947 prototype [91])

11 KB (b/w, side/rear view, MAZes at work [5])

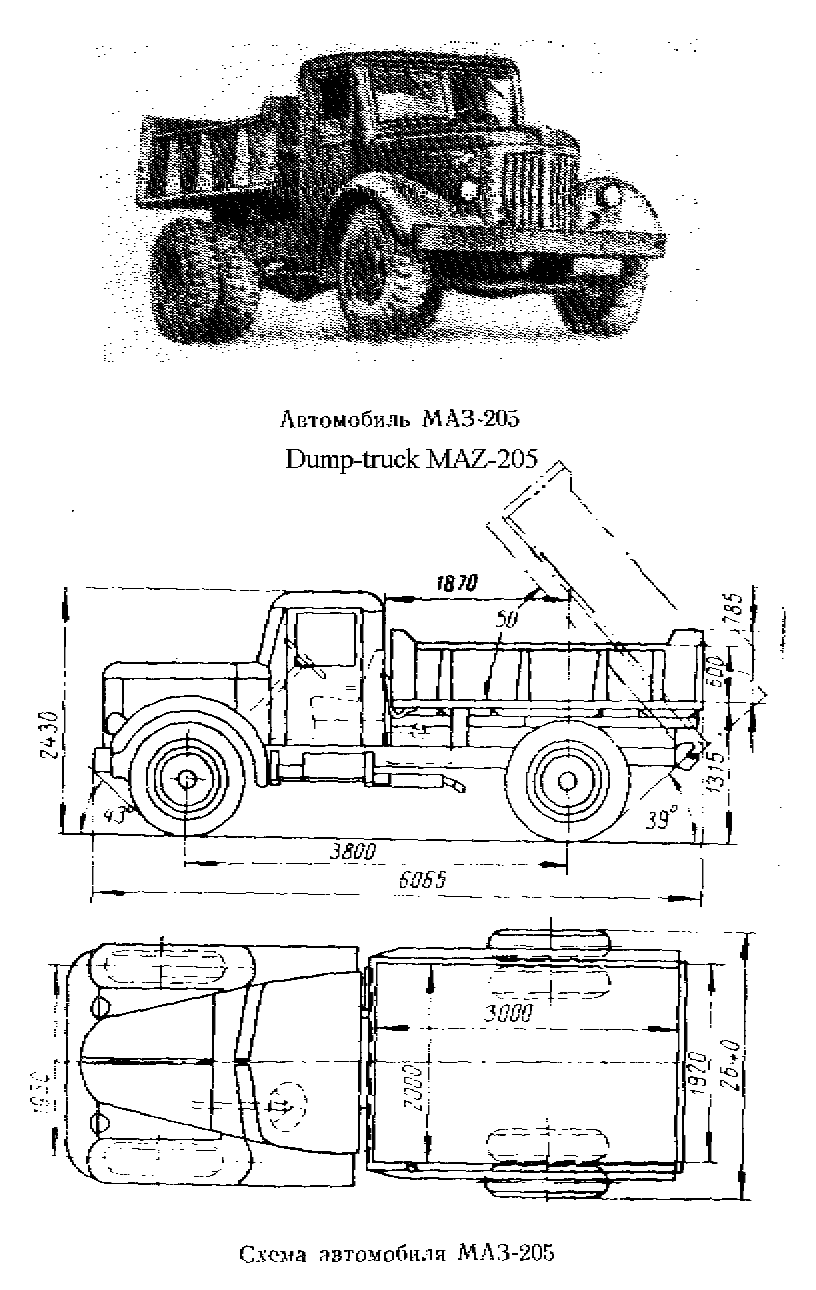

39 KB (b/w, side view, w/ technical info [1])

The fordig depth of this vehicle is 0.8 meters, angle of approach is 43 degrees, angle of departure is also 43 degrees.

There is also a flatbed truck model MAZ-200, a tractor model MAZ-501 and a 4 X 4 flatbed truck MAZ-502.

The only difference this truck had from MAZ-200 was that it did not have a winch, shorter chassis and frame. The dump mechanism was operated from inside the cabin. This vehicle was based on MAZ-200 (from 1947-1950 on YaAZ-200 (10 KB [4]).
