SovAvto Website.
| Model | MAZ-501 |
| Seating | 3 |
| Net-weight, kg [lb] | 7,600 [16,720] |
| Full load weight, kg [lb] | 12,825 [28,215] |
| Load weight, kg [lb] | 5,225 [11,495] |
| Total trailer weight, kg | - |
| Length, mm [in.] | 6700 [263.8] |
| Width, mm [in.] | 2638 [103.8] |
| Height, mm [in.] | 2650 [104.3] |
| Base, mm [in.] | 4520 [178] |
| Minimal clearance, mm [in.] | 290 [11.4] (under rear axle) |
| Minimal radius of turn, m [yards] | 11.5 [12.6] |
| Maximum speed, km/h [mi/h] | 45 [28] |
| Maximum horsepower, hp [kW] | 120 [90] @ 2,000 rpm |
| Engine capacity, liters [cm3] | 4.65 [4650] |
| Compression ratio | 17:1 |
| Gear ratios | 6.17/3.40/1.79/1.00/0.78/R-6.69 |
| Main gear ratio | 1.18-high/2.16-low |
| Mileage, liters/100km [mi/gal] | 60 [3.9] |
| Breaking distance, m | - |
| Fuel tank capacity, liters [gal] | 225 [59.4] |
| Years of production | 1955-1966 |
| Type of engine | YaAZ-M204A, 2-tact, 4 cyl., diesel |
| Wheel formula | 4 X 4 |

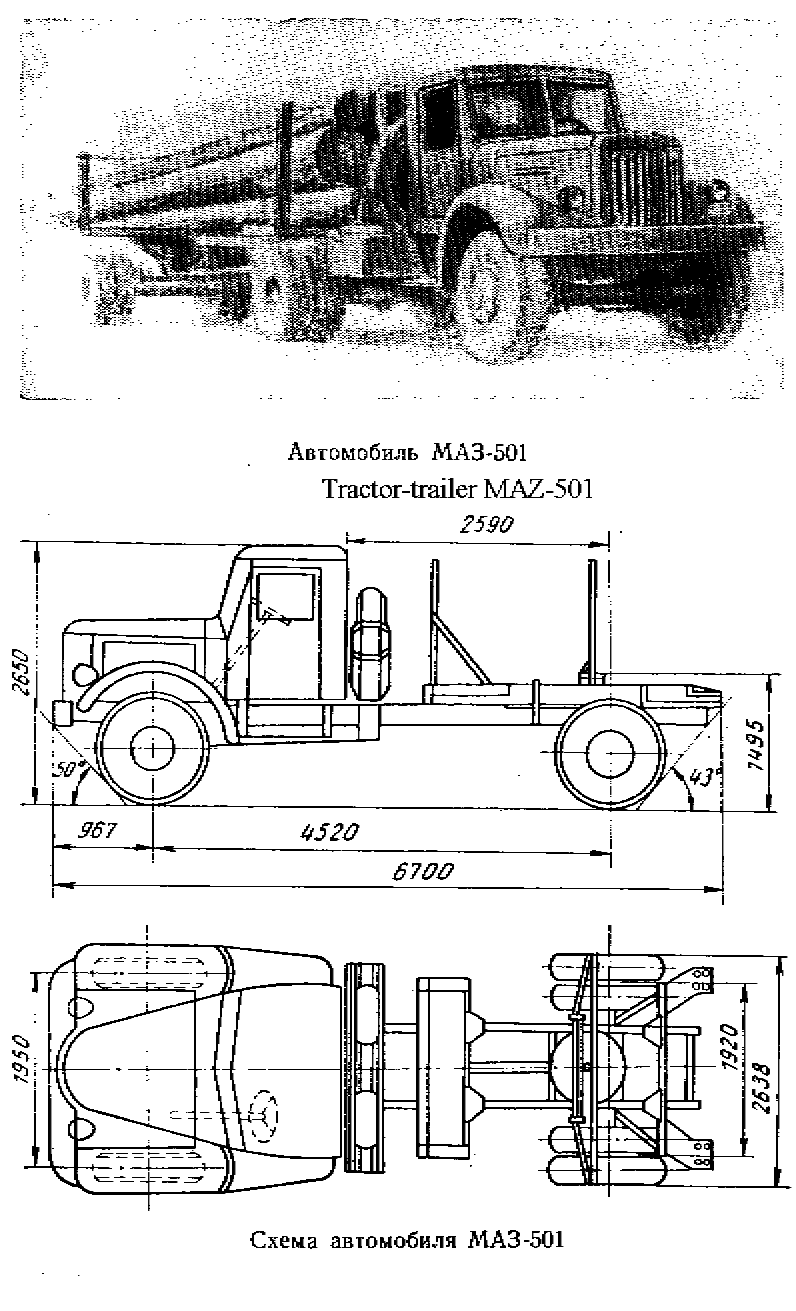

| Pictures | 44 KB (b/w, side view w/

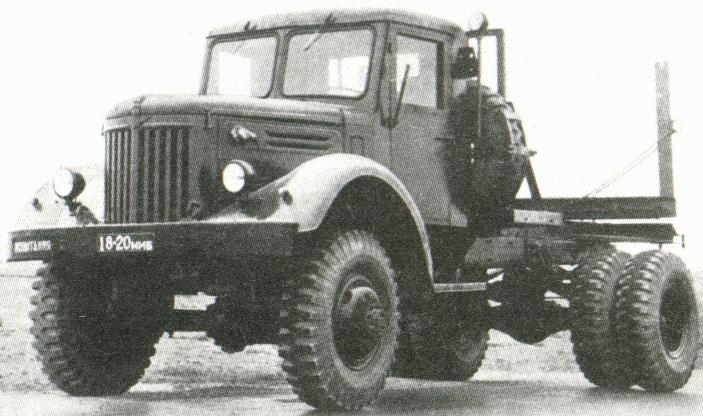

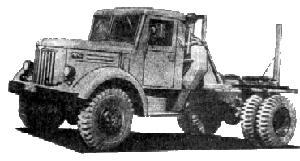

technical info [1]) 58 KB (b/w, front view, timber tractor-trailer [28]) 11 KB (b/w, side view [104]) |
This tractor was intended for hauling semi-trailers to and from places where timber was being cut down.
There is also a dump-truck model
MAZ-205,
a 4 X 2 flatbed truck MAZ-200
and a 4 X 4 flatbed truck MAZ-502.
