GAZ-4

SovAvto Website.



Model  GAZ-4
Seating 2
Curb weight, kg TOTAL 1,120
front axle -
rear axle -
Gross weight, kg TOTAL 1,850
front axle -
rear axle -
Payload [carrying capacity] weight, kg 500 if paved (400 if dirt)
Permissible [semi-]trailer weight, kg -
Length, mm 4080
Width, mm 1710
Height, mm 1825
Wheelbase, mm 2630
Track width, mm front -
rear -
Minimal ground clearance, mm under front axle -
under rear axle 205
Minimal radius of turn, m b/n curbs (outer front wheel) -
b/n walls (extreme exterior dimension -
Maximum speed, km/h 90
Fuel consumption, liters/100km 12
Acceleration time from 0-100 km/h, seconds -
Transmission gearbox 3 gears
gearbox ratios -
main gear ratio singular, pair of bevel gears w/ spiral teeth
transfer case ratio -
clutch single-disk, dry
Wheels number -
tire size 5,5-19
tire pressure, kg/cm2 -
Suspension front on one transverse, overturned semi-elliptical leaf spring
rear on one transverse, overturned semi-elliptical leaf spring
Steering gear worm-and-sector gear
gear ratio -
Brakes braking distance, m -
service (foot) drum brakes w/ mechanical drive to all wheels
parking (hand) belt brake w/ mechanical drive to rear wheels
Filling capacities, liters fuel tank 40
engine cooling system -
engine lubrication system -
gearbox housing  -
axle housing -
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor -
Electric equipment -
Accumulator battery -
Generator [alternator] -
Relay-regulator -
Starter motor -
Timer-distributor -
Spark plugs -
Engine engine type 4 cyl., sv, carb., 4-stroke
cylinder work order -
maximum horsepower, hp 40 @ 2,800 rpm
maximum torque, Nm 15.5
displacement, liters 3.285
compression ratio 4.2:1
bore/stroke, mm 98.43 / 107.95
Years of production 1932-1936
Overall units made 10648
Wheel arrangement 4 X 2

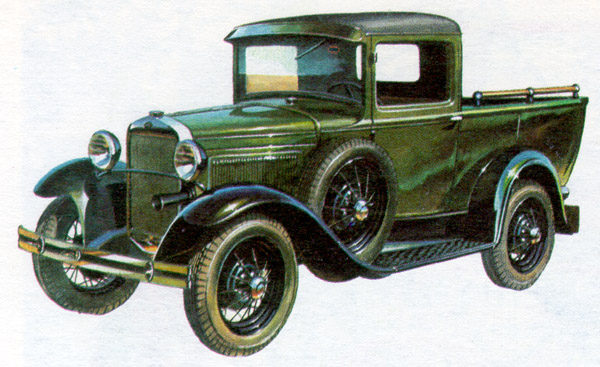

Pictures 22 KB (color, side view [4])

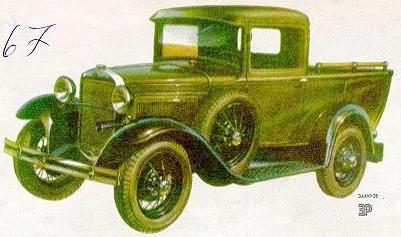

56 KB (color, side view [3])

26 KB (color, side view, drawing [106])

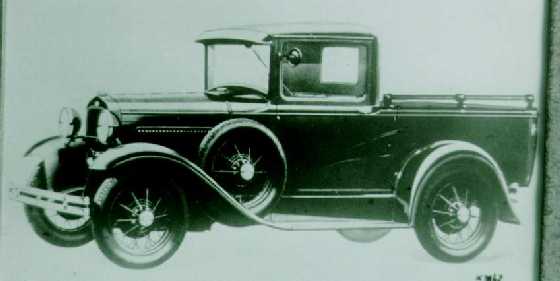

26 KB (b/w, side view [141/134])

15 KB (b/w, side view [142])

This was a GAZ-A based pickup with a GAZ-AA cabin. Not many GAZ-4 were made, so they are rare. A few or even one GAZ-21 was made (not to be confused with GAZ-M-21 "Volga"). The only difference of GAZ-21 from GAZ-4 was its powerful 6 X 4 wheel formula.
