| Model | GAZ-A | |
| Seating | 5 | |
| Curb weight, kg | TOTAL | 1,080 |
| front axle | - | |
| rear axle | - | |
| Gross weight, kg | TOTAL | 1,430 |
| front axle | - | |
| rear axle | - | |
| Payload [carrying capacity] weight, kg | - | |
| Permissible [semi-]trailer weight, kg | - | |
| Length, mm | 3875 | |
| Width, mm | 1710 | |
| Height, mm | 1780 | |
| Wheelbase, mm | 2630 | |
| Track width, mm | front | - |
| rear | - | |
| Minimal ground clearance, mm | under front axle | - |
| under rear axle | 205 | |
| Minimal radius of turn, m | b/n curbs (outer front wheel) | - |
| b/n walls (extreme exterior dimension | - | |
| Maximum speed, km/h | 90 | |
| Fuel consumption, liters/100km | 12.0 | |
| Acceleration time from 0-100 km/h, seconds | - | |
| Transmission | gearbox | 3 speed |
| gearbox ratios | - | |
| main gear ratio | singular, pair of bevel gears w/ spiral teeth | |
| transfer case ratio | - | |
| clutch | single-disk, dry | |
| Wheels | number | - |
| tire size | 5,5-19 | |
| tire pressure, kg/cm2 | - | |
| Suspension | front | transverse semi-elliptic overturned leaf spring |
| rear | transverse semi-elliptic overturned leaf spring | |
| Steering | gear | worm-and-sector |
| gear ratio | - | |
| Brakes | braking distance, m | - |
| service (foot) | drum brakes to all wheels w/ mechanical drive | |
| parking (hand) | belt brake to rear wheels w/ mechanical drive | |
| Filling capacities, liters | fuel tank | 40 |
| engine cooling system | - | |
| engine lubrication system | - | |
| gearbox housing | - | |
| axle housing | - | |
| steering system cylinder | - | |
| shock absorbers | - | |
| hydraulic brake drive | - | |
| air filter | - | |
| Carburetor | - | |
| Electric equipment | - | |
| Accumulator battery | - | |
| Generator [alternator] | - | |
| Relay-regulator | - | |
| Starter motor | - | |
| Timer-distributor | - | |
| Spark plugs | - | |
| Engine | engine type | carb., 4-stroke, 4 cyl., sv, inline |
| cylinder work order | - | |
| maximum horsepower, hp | 40 @ 2200 rpm | |
| maximum torque, N·m | 15.2 | |
| displacement, liters | 3.285 | |
| compression ratio | 4.2:1 | |
| bore/stroke, mm | 98.43 / 107.95 | |
| Years of production | 1932-1936 | |
| Total units made | 41,917 | |
| Wheel arrangement | 4 X 2 | |
| Pictures | 21 KB (color, front view,

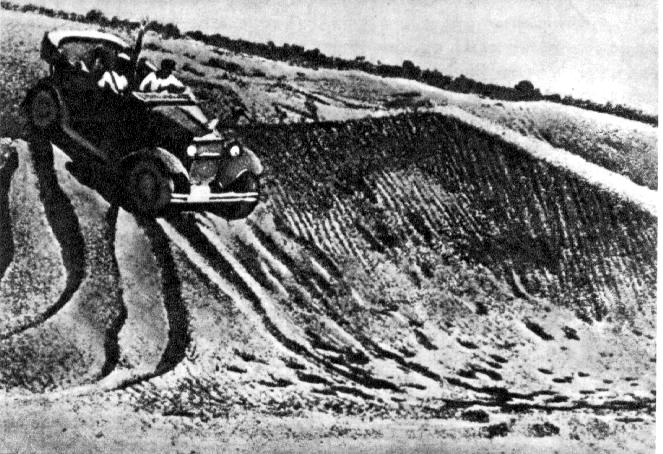

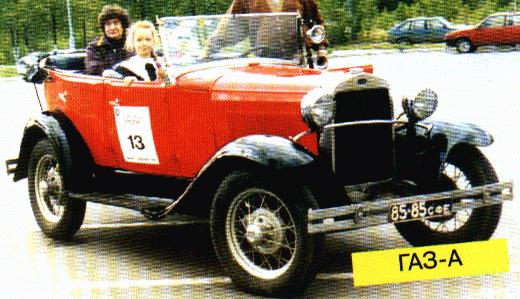

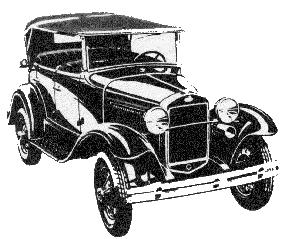

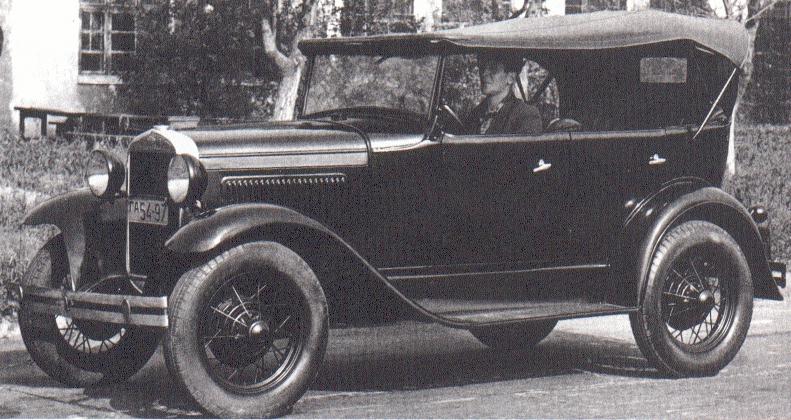

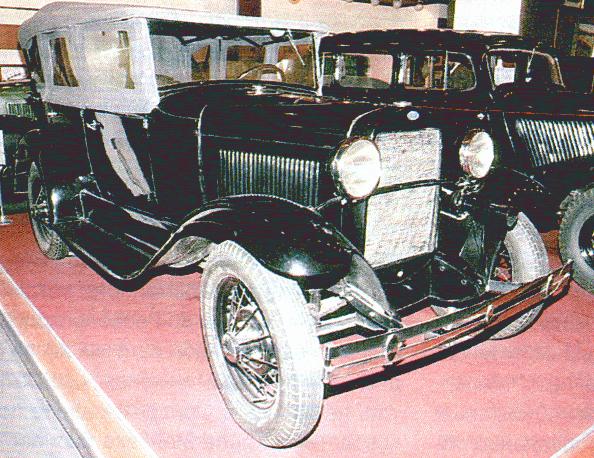

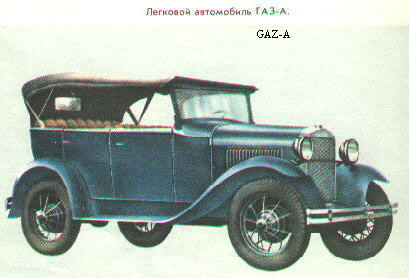

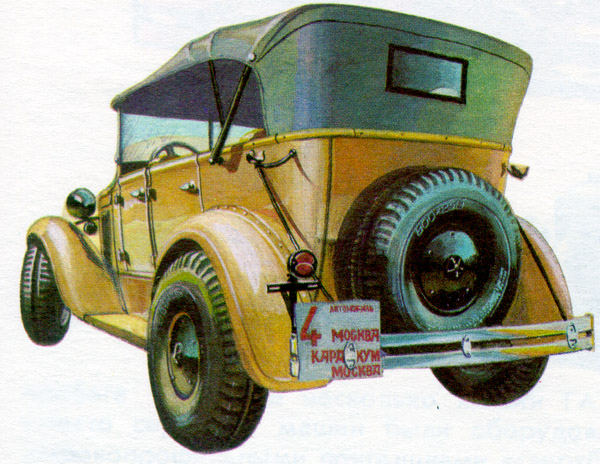

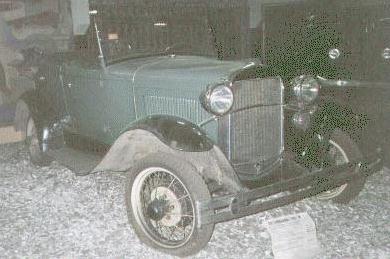

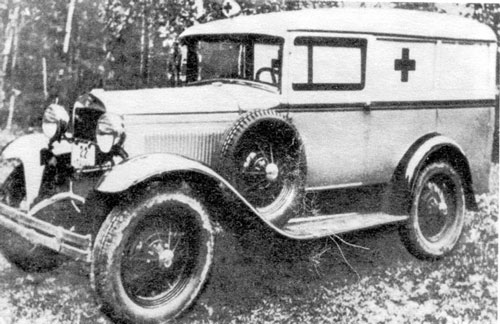

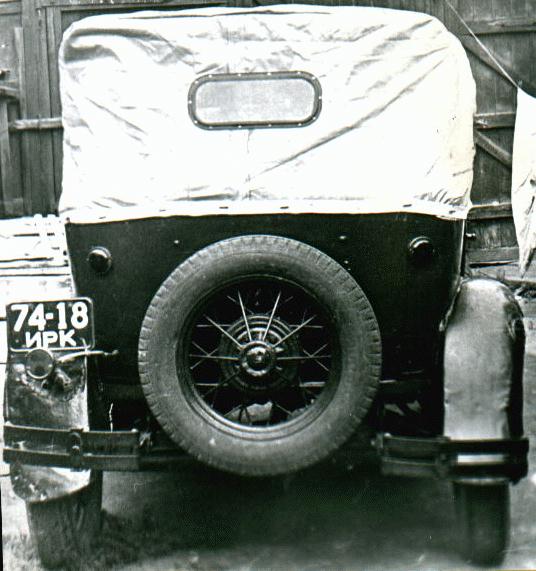

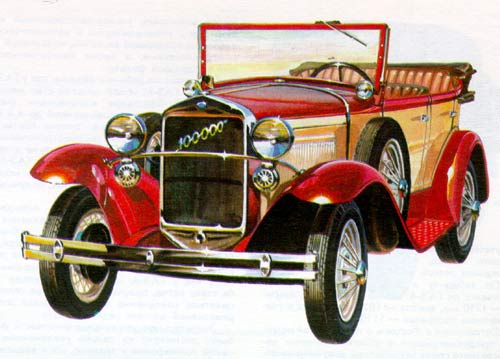

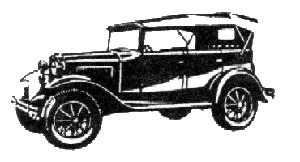

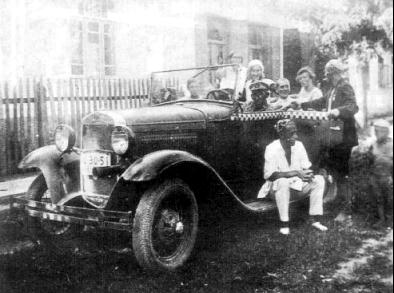

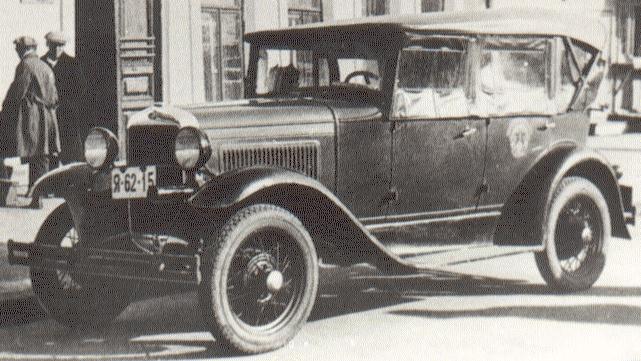

taxi version [7]) 40 KB (color, side/front view [7]) 73 KB (color, side/front view [4?]) 91 KB (color, side view, drawing [106]) 81 KB (b/w, side view, post-war model [7/28]) 55 KB (b/w, side view, 1935 taxi [7/28]) 49 KB (b/w, rear view [7]) 83 KB (b/w, front view, in Karakum desert [103]) 24 KB (b/w, side view, taxi [104]) 120 KB (color, rear view, drawing [3]) 179 KB (color, front view, drawing [3]) 19 KB (b/w, front view, drawing [103]) 10 KB (b/w, side view, drawing [105]) 89 KB (b/w, side view, ambulance [3]) |
|
This 5 seat, 4 door car is almost an exact copy of American 1930 Ford-A. Officially GAZ-A is the first serial passenger vehicle in the Soviet Union. In parallel with GAZ-A few pieces of 4-door, 6-light saloon GAZ-6 have been built. Also, Moscow plant "Aremkuz" built a few different hard-top modifications of bodies for GAZ-A. Take a look at these photos of GAZ-AAAA (32 KB [7], 34 KB [7], 67 KB [3]), which is a 3 axle modification of GAZ-A.
