ZIL-4331, ZIL-4333, ZIL-5343, ZIL-133, ZIL-4334

SovAvto Website.

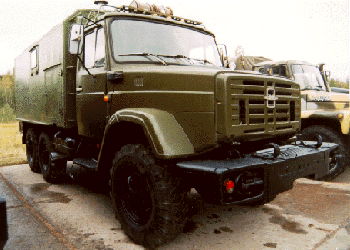

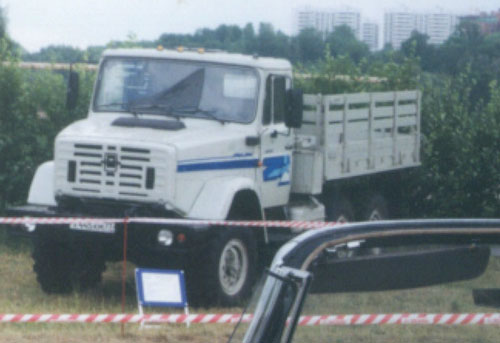

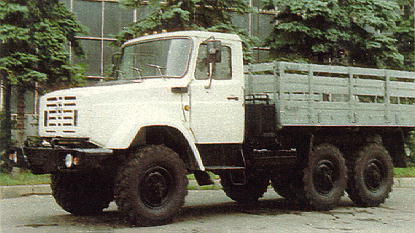

Model ZIL-4331 ZIL-4333 ZIL-5343 ZIL-133 ZIL-4334
Seating 3 3 3 3 3
Net-weight, kg [lb] 4,825 [10,615] - - - -
Full load weight, kg [lb] 12,000 [26,400] - 14,500 [31,900] - 11,170 [24,574]
Load weight, kg [lb] 6,000 [13,200] 6,000 [13,200] 8,000 [17,600] 10,000 [22,000] -
Total trailer weight, kg [lb] 11,500 [25,300] - 11,500 [25,300] 25,800 [56,760] -
Length, mm [in.] 7645 [300] 6755 [266] 7695 [303] 9037 [356] 7195 [283]
Width, mm [in.] 2500 [98] 2500 [98] 2500 [98] 2500 [98] 2500 [98]
Height, mm [in.] 2660 [105] 2660 [105] 2700 [106] 2760 [109] 2700 [106]
Base, mm [in.] 4500 [177] 3800 [150] 4500 [177] 4610+1400 [181+55] 3400+1250 [134+49]
Minimal clearance, mm [in.] - - - - -
Minimal radius of turn, m [yards] 8 [8.8] 6.9 [7.6] 8 [8.8] 10.5 [11.5] 10.2 [11.2]
Maximum speed, km/h [mi/h] 95 [59] 90 [56] 115 [71] 85 [53]] 85 [53]
Maximum horsepower, hp [kW] 185 [138] @ 2,800 rpm 150 [112] @ 3,200 rpm 195 [145] @ 2,100 rpm 185 [138] @ 2,800 rpm 170 [127] @ 2,800 rpm
Maximum torque, Nm [lbft] 52 [337] @ 1,400-1,600 rpm 41 [266] @ 1,800-2,000 rpm 73 [474] @ 1,200-1,400 rpm 52 [337] @ 1,400-1,600 rpm 50 [325] @ 1,400-1,600 rpm
Engine displacement, liters [cc] 8.74 [8,740] 6.0 [6,000] 11.15 [11,150] 8.74 [8,740] 8.74 [8,740]
Compression ratio 18.5:1 7.1:1 16.5:1 18.5:1 18.5:1
Gear ratios - - - - -
Main gear ratio - - - - -
Mileage, liters/100km [mi/gal] 17.5 [13.4] 25 [9.4] 23 [10.2] 23.7 [9.9] 24 [9.8]
Acceleration time from 0-60 km/h [37 mi/h], seconds 33 - - 50 31.5
Breaking distance, m [yards] - - - - -
Fuel tank capacity, liters [gal] - - - - -
Years of production 1985-present 1992-present 1997-present 1989-present 1994-present
Type of engine ZIL-645, V8, diesel ZIL-508.10, carb., 6 cyl. YaMZ-236A, V6, diesel ZIL-645, V8, diesel ZIL-6451, V8, diesel
Bore/Stroke, mm [in.] - - - - -
Wheel formula 4 X 2 4 X 2 4 X ? 6 X 4 6 X 6
Pictures 21 KB (color, front view [73])

12 KB (color, front view [73])

9 KB (color, side view [73])

9 KB (color, side view [10])

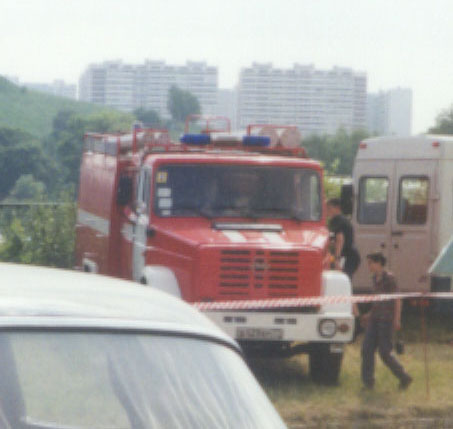

30 KB (color, fire-truck, front view [122])

12 KB (color, front view [73])

10 KB (color, front view, ZIL-5344 [10])

10 KB (color, front view [10])

21 KB (color, side view [73])

13 KB (color, side view [73])

13 KB (color, garbage truck, side view [7])



22 KB (color, front view [19/57])

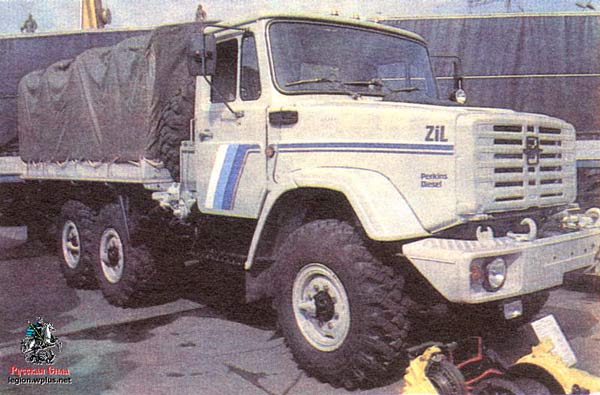

48 KB (color, side view, ZIL-131D with english Perkins diesel [19/4])

11 KB (color, front view [73])

28 KB (color, side view [10])

32 KB (color, front view [122])

9 KB (color, front view, fire truck [10])

Below are some more ZIL models.

Model Description Photo

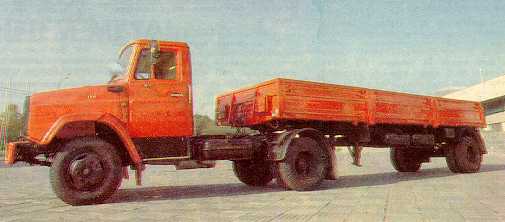

ZIL-4421 4 X 2, tractor for semi-trailers 15 KB (color, side view [10])

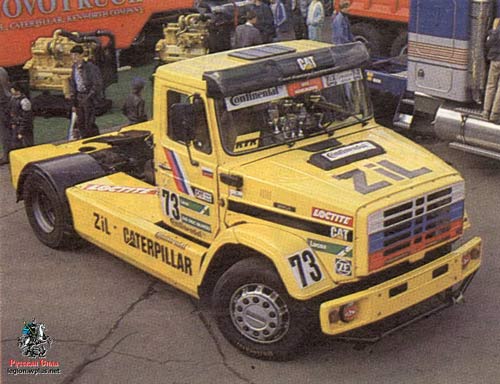

ZIL-4421 4 X 2, tractor for semi-trailers 42 KB (color, side view [19/4])

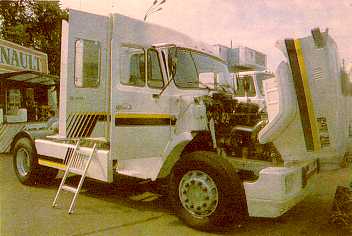

ZIL-4423 4 X 2, w/ sleeping cabin, tractor for semi-trailers 14 KB (color, side view [10])

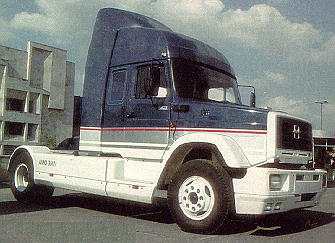

ZIL-5423 4 X ?, w/ sleeping cabin, tractor for semi-trailers 23 KB (color, side view [10])
ZIL-4514 6 X ?, dump-truck 8 KB (color, side view [10])

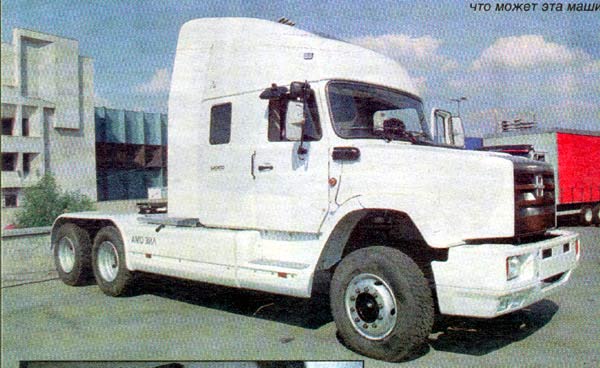

ZIL-6404 6 X 4, w/ sleeping cabin, tractor for semi-trailers 44 KB (color, side view [13])

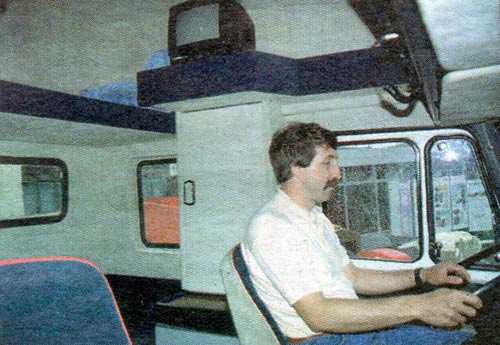

ZIL-6404 6 X 4, w/ sleeping cabin, tractor for semi-trailers 40 KB (color, interior view [13])
ZIL-6404 6 X 4, w/ sleeping cabin, tractor for semi-trailers 9 KB (color, front view [10])

These vehicles, although with different engines, clearly form a closely related family. They, in fact, replaced the previous ZIL-130 (4 X 2) and ZIL-131 (6 X 6) models. Lets look at these trucks in more detail. ZIL-4331 was first developed in 1980, while ZIL-130 was still at the height of its production. In 1985/1986 ZIL-4331 was put on the conveyer, but ZIL-130 was continued to be made at ZIL factory until late 1980's. Then ZIS-130 production line was moved to Ekaterinburg where it became called ZIL-UAmZ-130 [Uralsky Automobile Plant]. Now, the (6 X 4) ZIL-133 that is presented on this page replaced the previous (6 X 4) ZIL-133. In 1995 ZIL-133GYa was replaced by ZIL-133-05A and ZIL-6404-30 with a new driver's cabin and a ZIL produced diesel engine [ZIL-645 and ZIL-645.1].

The parameters in the above table are given primarily for board platform trucks. The AMO ZIL also sells these trucks as chassis, tractor trailers, isothermal vans, dump-trucks, fire-trucks, etc. The above data, with the exception of very few series with Caterpillar engines, holds for all of those models. Obviously, the mass and dimensions vary, but not dramatically.
