ZIL-131

SovAvto Website.



Model  ZIL-131
Seating 3
Net-weight, kg [lb] 6,714 [14,770]
Full load weight, kg [lb] 11,724 [25,790]
Load weight, kg [lb] 5,010 [11,020] (3,500 [7,700] if unpaved)
Total trailer weight, kg [lb] 5,000 [11,000] (4,000 [8,800] if unpaved)
Length, mm [in.] 7036 [277]
Width, mm [in.] 2500 [98]
Height, mm [in.] 2480 [98] (2975 [117] w/ tent)
Base, mm [in.] 3975[156]
Minimal clearance, mm [in.] 330 [13]
Minimal radius of turn, m [yards] 10.2 [11.5]
Maximum speed, km/h [mi/h] 80 [50]
Maximum horsepower, hp [kW] 150 [112] @ 3,200 rpm
Maximum torque, N·m [lb·ft] 36 [235] @ 1,800-2,000 rpm
Engine displacement, liters [cc] 6.0 [5,969]
Compression ratio 6.5:1
Gear ratios 5 gears
Main gear ratio 2 step distributing gearbox
Mileage, liters/100km [mi/gal] 65 [3.6]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] 122 [134] @ 30 km/h [20 mi/h]
Fuel tank capacity, liters [gal] 2 X 170 [2 X 45]
Years of production 1967-1991
Type of engine ZIL-131, 4-tact, V8, carb., ohv
Bore/Stroke, mm [in.] 100 [3.94]/ 95 [3.74]
Wheel formula 6 X 6

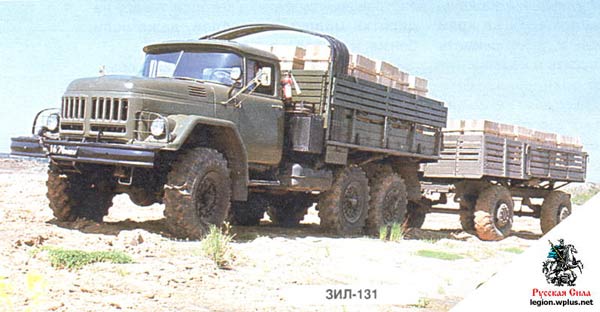

Pictures 37 KB (color, front view with a trailer [19/4])

49 KB (color, front view [19/4])

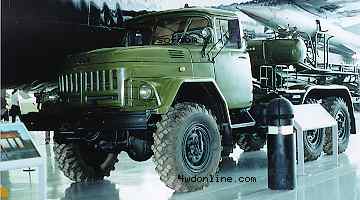

14 KB (color, w/ SA-2 surface to air missile at Duxford museum, front view [37])

9 KB (color, side view, military truck [99])

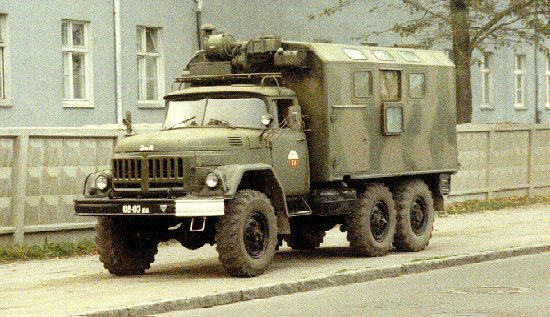

64 KB (color, Soviet army truck in Germany in 1990, front view [102])

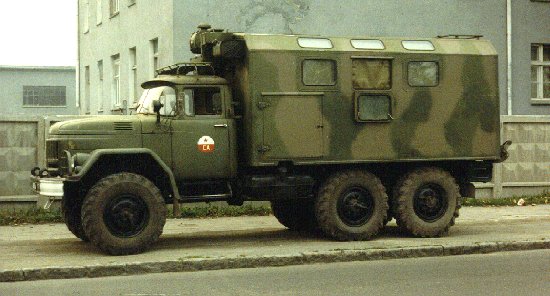

47 KB (color, same as above, side view [102])

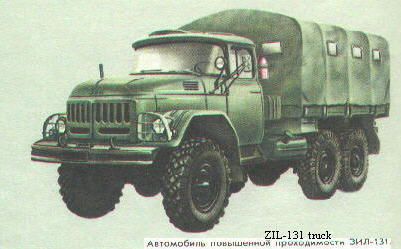

29 KB (color, side view, drawing [106])

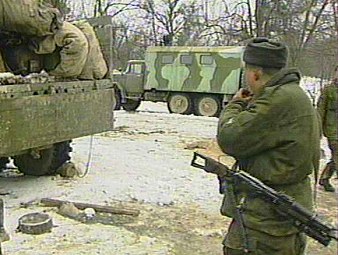

36 KB (color, side view, military truck in Chechnya [125])

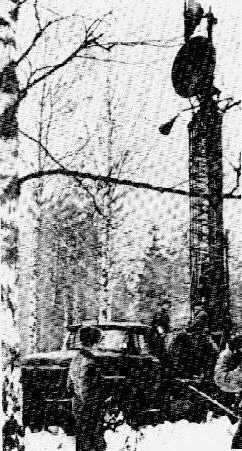

26 KB (b/w, side view, radio relay station [108])

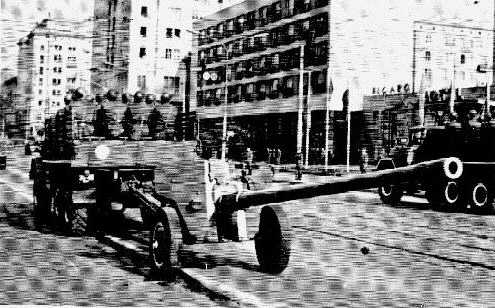

34 KB (b/w, rear view, military trucks parading [108])

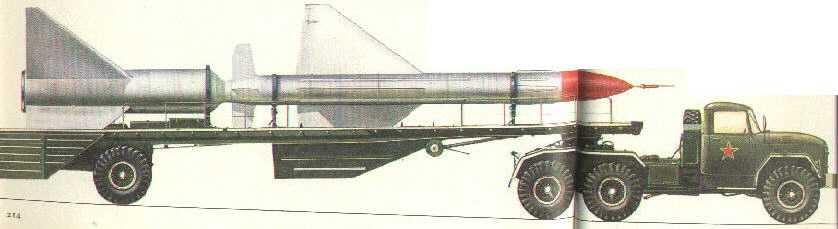

20 KB (color, side view, drawing, [ZIL-131V tractor]* [108])

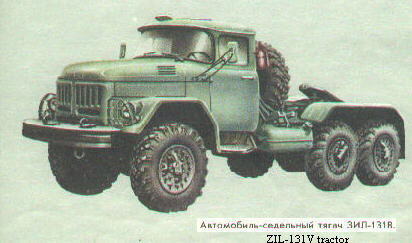

26 KB (color, side view, drawing [ZIL-131V tractor] [106])

53 KB (color, side view [AC-40-7 on ZIL-131 chassis]** [152])

ZIL-131 succeeded ZIL-157. ZIL-131 is a military/off-road counterpart of a 4 X 2 ZIL-130. It is one of the most abundant vehicle in the Russian Army, approximately 40% of army's vehicles are ZIL-131. This typically military cabin can also be seen on ZIL-UAmZ-130 which you can find on ZIL-130 page. But that is very rare. Most of ZIL-131 are painted in dark green color and serve either in military or in the forest districts. In late 1980's ZIL-131 was replaced by a modernized 6 X 6 ZIL-4334.

* The ZIL-131V tractor in this drawing is the carrier (not launcher) of SA-5 Gammon missile. SA-5 Gammon has a length of 16.5 m, diameter (1.1 m boost) 850 mm missile, main wing span 3.96 m, launch mass 10,000 kg and estimated range 250 km.

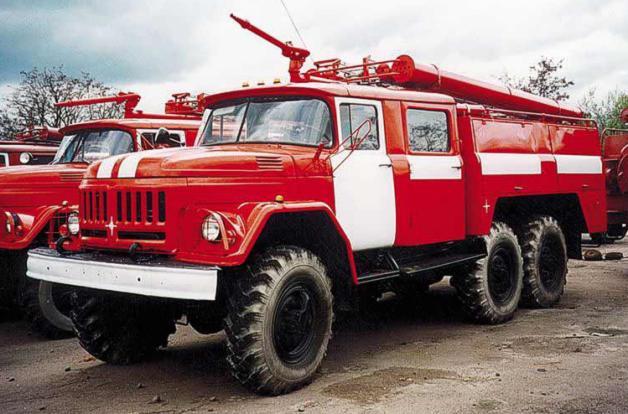

**This fire engine AC-40-7 is manufactured by Ukrainian fire fighting plant, PozhMashina, on ZIL-131 chassis.  It is AC-40(131)-137, the pump is capable of pumping 40 liters of water per second.  The cab fits 7 firefighters.  The water tank holds 2,400 liters of water and 150 liters of foam.  It is equipped with a station monitor.

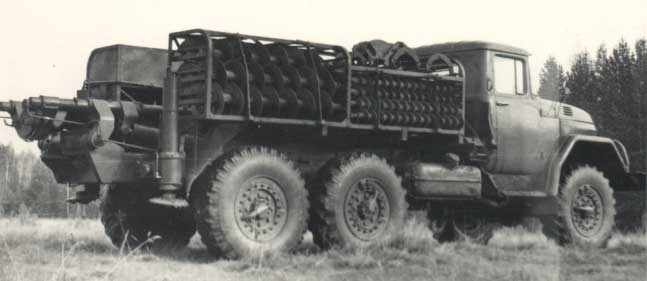

19 KB (color, side view [ZIL-131 BGM-1] [162]). This car was in the East German army, used for digging.

Once, I have ridden in a ZIL-131 with a group of foresters [including Alexander Rudolfovich Keler] who were on their way to plant young fir trees in place of construction timbers that have been cut down.
