| Model | UAZ-69 (UAZ-69A)* |
| Seating | 8 or 2 + 500 kg [1,100 lbs] (5) |
| Net-weight, kg [lb] | 1,525 [3,355] (1,535 [3,377]) |
| Full load weight, kg [lb] | 2,175 [4,785] (1,960 [4,312]) |
| Load weight, kg [lb] | 500 [1,100] |
| Total trailer weight, kg [lb] | only one-axle semi-trailer up to 850 [1,870] |
| Length, mm [in.] | 3850 [152] |
| Width, mm [in.] | 1850 [73] (1750 [69]) |
| Height, mm [in.] | 2030 [80] (1920 [76]) |
| Base, mm [in.] | 2300 [91] |
| Minimal clearance, mm [in.] | 210 [8.3] |
| Minimal radius of turn, m [yards] | 6.5 [7.2] |
| Maximum speed, km/h [mi/h] | 90 [56] |
| Maximum horsepower, hp [kW] | 55 [41] @ 3,600 rpm |
| Maximum torque, N·m [lb·ft] | 12.5 [81] @ 2,000-2,200 rpm |
| Engine displacement, liters [cc] | 2.12 [2,112] |
| Compression ratio | 6.2:1 |
| Gear ratios | I-3.115/II-1.772/III-1.00/R-3.738 |
| Main gear ratio | 5.125 |
| Transfer box ratios | lower-2.78, higher-1.15 |
| Mileage, liters/100km [mi/gal] | 14 [17] (@ 40 km/h [25 mph]) |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - |
| Breaking distance, m [yards] | - |
| Fuel tank capacity, liters [gal] | 48 main + 27 additional [13+7] (60 [16]) |
| Years of production | 1954-1972 |
| Type of engine | UAZ-69 [copy of M-20], carb., 4-tact, 4 cyl., sv |
| Bore/Stroke, mm [in.] | 82 [3.23]/ 100 [3.94] |
| Wheel formula | 4 X 4 |

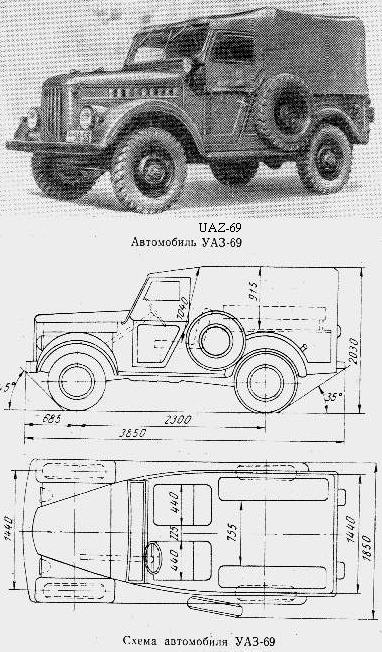

| Pictures | 226 KB (b/w, side view w/ tech

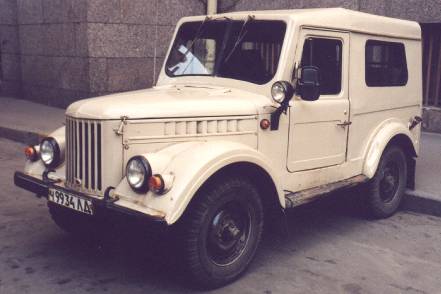

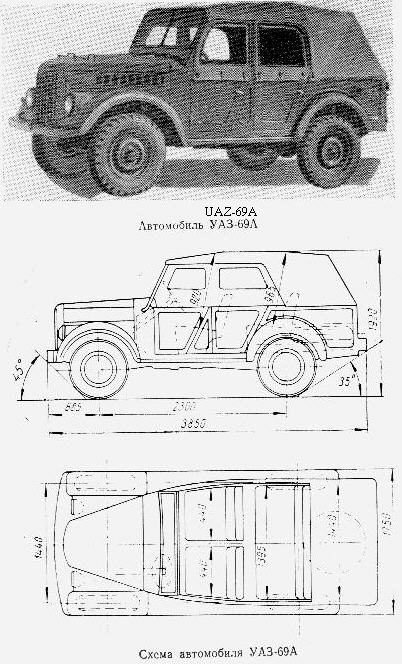

info [UAZ-69] [1]) 202 KB (b/w, side view w/ tech info [UAZ-69A] [1]) 19 KB (color, front view [UAZ-69] [40/41]) |
* (parenthesis) indicate technical parameters of UAZ-69A that are different from those of UAZ-69.
UAZ-69 can seat 8 people or the rear benches can be folded up in which case it seats 2 people and has a capacity to trasport 500 kg [1,100 lbs]. UAZ-69 is an all-time 5 seat jeep.
First year these jeeps were produced in Gorky (so called from
1930 to 1992, right now renamed into its Russian name [as opposed
to Soviet] - Nizhniy Novgorod). Then, at the end of 1954
production of
GAZ-69 was transferred to Ulianovsk,
and from then on GAZ-69 was known as UAZ-69. Production of GAZ-69
in Gorky ceased in 1956 (3 years after it was began). Even though
GAZ-69 technically became known as UAZ-69, the new title was not
widely used by people nor in official papers, that's why this car
is generally considered to be a GAZ. The engine of the car was
taken from the well known GAZ-M-20 "Pobeda". There
are no side view mirror on this car, and the only small mirror
secured at the center of the windshield was not very practical
bacause of the tarpauline covering that had only a small window
in the back. In 1970, however, 2 window appeared on each side of
the tarpauline tent.

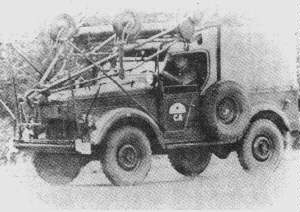

Vehicle-mounted magnetic mine detector is mounted on a UAZ-469 or UAZ-69 truck. The detection element fastens on a frame on the front of the vehicle. When the vehicle approaches a metallic mine, a signal light appears on the dash and, simultaneously, the system applies compressed air into the brake cylinders, halting the detector. (12 KB b/w, side view [100]).

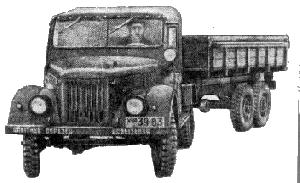

UAZ-456 tractor with UAZ-749 trailer. (13 KB b/w, front view [104])
