UAZ-450D, UAZ-451D, UAZ-452D

SovAvto Website.



Model  UAZ-450D (UAZ-450)* UAZ-451D UAZ-452D (UAZ-452)**
Seating 2 2 2
Net-weight, kg [lb] 1,700 [3,740] (1,745 [3,839]) 1,500 [3,300] 1,660 [3,652] (1,710 [3,762])
Full load weight, kg [lb] 2,650 [5,830] (2,645 [5,819]) 2,450 [5,390] 2,610 [5,742] (2,660 [5,852])
Load weight, kg [lb] 800 [1,760] (750 [1,650]) 800 [1,760] 800 [1,760]
Total trailer weight, kg [lb] - - -
Length, mm [in.] 4405 [173] (4360 [172]) 4460 [176] 4460 [176] (4360 [172])
Width, mm [in.] 2040 [80] (1940 [76]) 2044 [80] 2044 [80] (1942 [76])
Height, mm [in.] 2070 [81] (2050 [81]) 2020 [80] 2040 [80] (2090 [82])
Base, mm [in.] 2300 [91]
Minimal clearance, mm [in.] 220 [8.7] under rear axle
Minimal radius of turn, m [yards] 6.8 [7.5]
Maximum speed, km/h [mi/h] 90 [56] 95 [59]
Maximum horsepower, hp [kW] 62 [46] @ 3,800 rpm 70 [52] @ 4,000 rpm
Maximum torque, N·m [lb·ft] 15.2 [99] @ 2,000 rpm 17 [110] @ 2,000 rpm
Engine displacement, liters [cc] 2.43 [2,430] 2.445 [2,445]
Compression ratio 6.6:1
Gear ratios I-3.115/II-1.772/III-1.00/R-3k.738 I-4.124/II-2.651/III-1.58/IV-1.00/R-5.23
Main gear ratio 5.125
Transfer box ratio 1.15 and 2.78 n/a 1.94
Mileage, liters/100km [mi/gal] 14 [17] 12 [20] 13 [18]
Acceleration time from 0-100 km/h [62 mi/h], seconds - - -
Breaking distance, m [yards] - - -
Fuel tank capacity, liters [gal] 55 [14.6] A-72 60 [16] A-72
Years of production 1958-? 1961-? ?
Type of engine M-20, carb., hv, 4I-cyl., 4-tact M-21, carb., ohv, 4I-cyl., 4-tact
Bore/Stroke, mm [in.] 88 [3.46]/ 100 [3.94] 92 [3.62]/ 92 [3.62]
Wheel formula 4 X 4 4 X 2 4 X 4
Pictures  225 KB (b/w, side view, w/ tech info [1])

90 KB (b/w, side view [1])

37 KB (b/w, side view [7])

118 KB (color, side view [25])

19 KB (b/w, side view [16])

198 KB (b/w, front view, w/ tech info [1])

70 KB (color, side view, drawing, modern cabin design [106])

220 KB (b/w, side view, w/ tech info [1])

101 KB (b/w, side view [1])

81 KB (color, front view, drawing, modern cabin design [106])

100 KB (color, side view, drawing, modern design [UAZ-452V] [106])

* (parenthesis) indicate technical parameters of UAZ-450 (van) that are different from those of UAZ-450D (mini-truck).

** (parenthesis) indicate technical parameters of UAZ-452 (van) that are different from those of UAZ-452D (mini-truck).

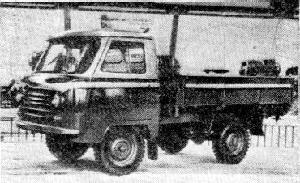

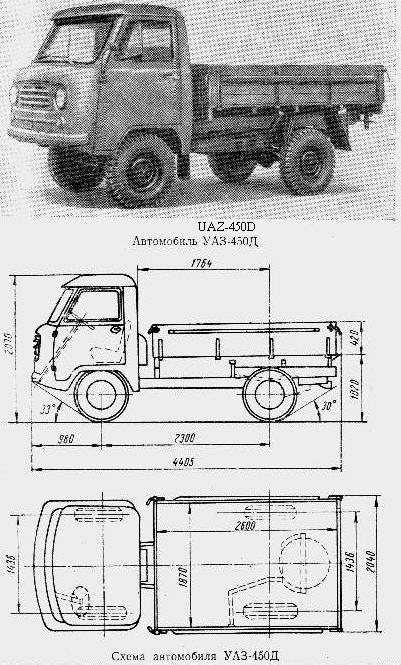

UAZ-450D has wooden flatbed body with 3 opening sides. Fully metallic, 2-seat cabin is located above the engine and equipped with heater and defroster of windshield with hot air. This model has M-20 engine, same as used on GAZ-M-20 "Pobeda".

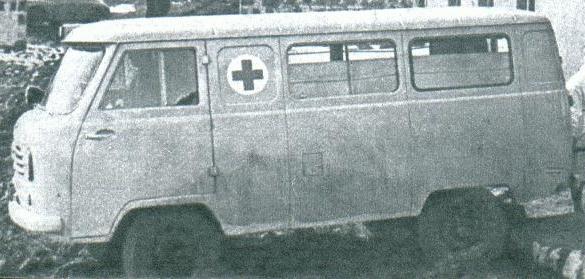

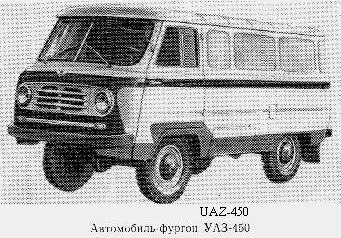

UAZ-450 has a loading height of 685 mm [27 in]. This cargo van is intended for transport of food and production items. Fully metallic body, with two side doors in the cabin and rear double door. An ambulance of this modification also exists.

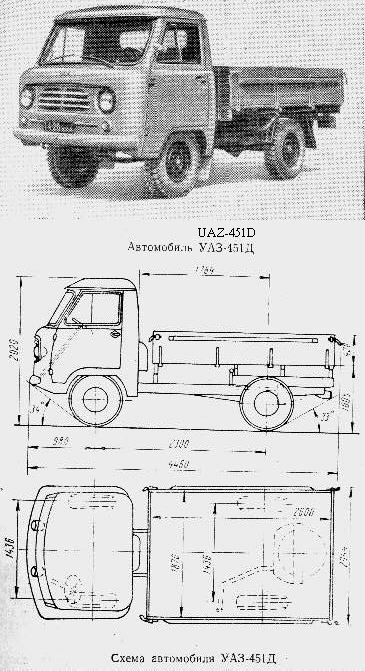

UAZ-451D has wooden flatbed body with 3 opening sides. Fully metallic, 2-seat cabin is located above the engine. This model has the same engine as UAZ-452D but for some reason it is referred to as UAZ-451 engine, rather then M-21 which it really is.

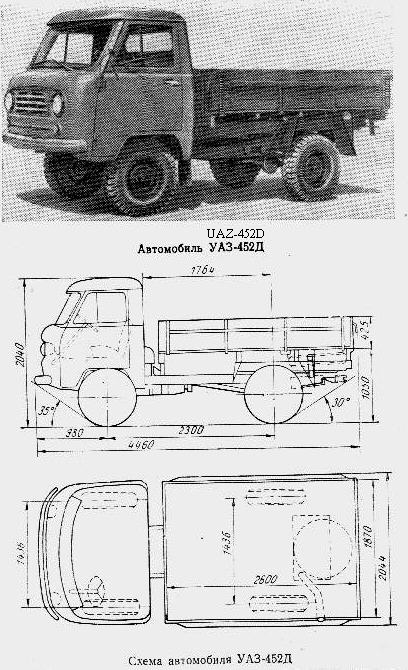

UAZ-452D has wooden flatbed body with 3 opening sides. Fully metallic, 2-seat cabin is located above the engine and equipped with heater and defroster of windshield with hot air. This model has the same engine as GAZ-M-21 "Volga"

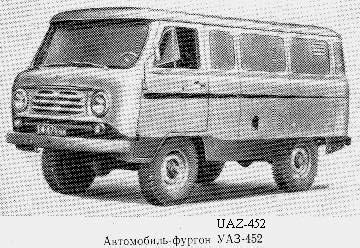

UAZ-452 has three side doors and rear double door, fully metallic body.

UAZ-452V is a mini-bus model.

This family of UAZes developed into a large number of different models UAZ-3303, UAZ-2923, UAZ-2746(4 X 4 flatbed trucks), UAZ-3741, UAZ-2206, UAZ-3962, UAZ-3909 (vans, minibuses and ambulances) and UAZ-39094, UAZ-39095 (4 X 4 flatbed trucks).
