| Model | KrAZ-260* (KrAZ-260V**) | KrAZ-260G | |
| Seating | 3 | ||
| Net-mass, kg [lb] | TOTAL | 12,250 [26,950] (10,900 [23,980]) | 11,130 [24,486] |
| front axle | 5,880 [12,936] (-) | 5,750 [12,650] | |
| trolley | 6,370 [14,014] (-) | 5,380 [11,836] | |
| Full load mass, kg [lb] | TOTAL | 21,475 [47,245] (20,265 [44,583]) | 21,355 [46,981] |
| front axle | 6,440 [14,168] (5,895 [12,969]) | 6,355 [13,981] | |
| rear trolley | 15,035 [33,077] (14,730 [32,406]) | 15,000 [33,000] | |
| Load mass, kg [lb] | 9,000 [19,800] (9,500 [20,900] on coupling mech.) | 10,000 [22,000] | |
| Total trailer mass, kg [lb] | gravel | 10,000 [22,000] | |
| highway | 30,000 [66,000] (27,500 [60,500]) | ||
| airport runway | 75,000 [165,000] | ||
| Length, mm [in.] | - | - | |
| Width, mm [in.] | - | - | |
| Height, mm [in.] | - | - | |
| Base, mm [in.] | - | - | |
| Minimal clearance, mm [in.] | - | - | |
| Minimal radius of turn, m [yards] | 13.5 [14.9] | ||
| Maximum ascent (grade) when loaded, degrees | 58 (36) | 58 | |
| Maximum speed, km/h [mi/h] | 80 [50] (75 [47]) | 80 [50] | |
| Maximum horsepower, hp [kW] | 288 [212] @ 2,100 rpm | 318 [234] @ 2,100 rpm | |
| Maximum torque, N·m [lb·ft] | 106 [688] @ 1,250-1,450 rpm | 121 [785] @ 1,200-1,400 rpm | |
| Engine displacement, liters [cc] | 14.86 [14,860] | ||
| Compression ratio | - | - | |
| Gear ratios | 7.73/ 5.52/ 3.94/ 2.80/ 1.96/ 1.39/ 1.00/ 0.71/ R1-11.79/ R2-2.99 | ||
| Main gear ratio | 8.173 | ||
| Transfer box ratio | high-1.013/ low-1.31 | ||
| Clutch | 2 disc, dry | ||
| System voltage, v | 24 | ||
| Suspension | front | dependent, 2 half-elliptical springs, work together w/ 2 hydraulic shock absorbers | |
| rear | dependent, balanced on 2 half-elliptical springs | ||
| Steering mechanism | mechanical w/ hydraulic facilitator | ||
| Brakes | working | drum type wheel braking w/ internal shoe | |
| parking | wheel brake mechanism used, pneumatic drive w/ energy accumulators | ||
| auxiliary | throttle type, pneumatic drive, installed in exhaust system | ||
| Wheels | number of | 6 + 1 | |
| tires | 1300x530-533, wide profile | ||
| rim size | 440-533 | ||
| Mileage, liters/100km [mi/gal] | 35.5 [6.6] | ||
| Acceleration 0-100 km/h [62 mi/h], seconds | - | - | |
| Breaking distance, m [yards] | - | - | |
| Fuel tank capacity, liters [gal] | 165 x 2 + 45 x 1 (375 total) [43 x 2 + 12 x 1 (99)] | ||
| Years of production | 19??-present | 19??-present | |
| Type of engine | YaMZ-238B, diesel w/ turbo, V8 | YaMZ-238BL, diesel w/ turbo, V8 | |
| Bore/Stroke, mm [in.] | 130 [5.12] / 140 [5.51] | ||
| Wheel formula | 6 X 6 | ||

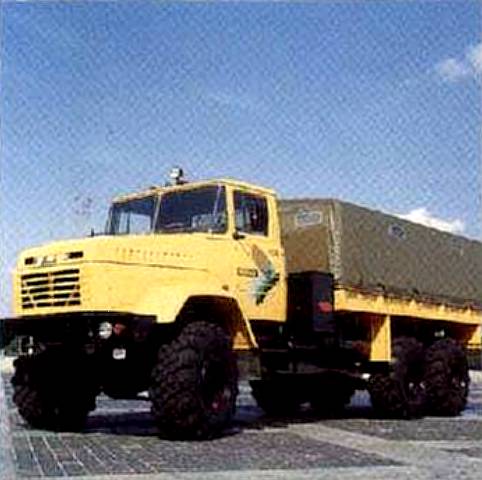

| Pictures | 32 KB (color, side view [KrAZ-260]
[109])

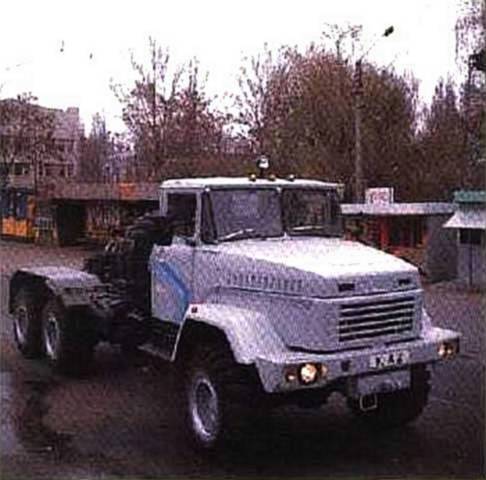

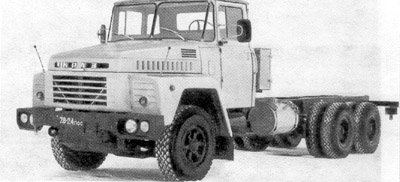

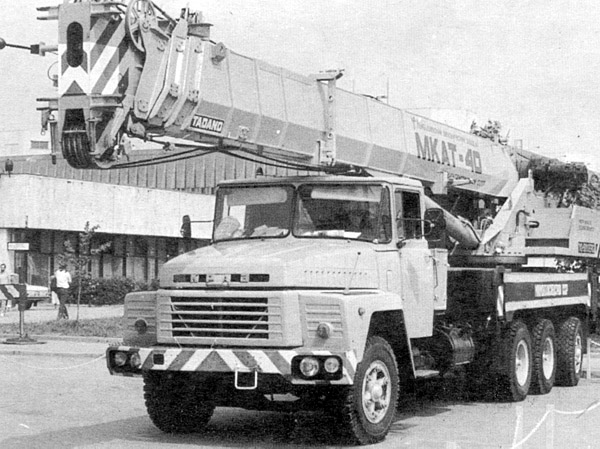

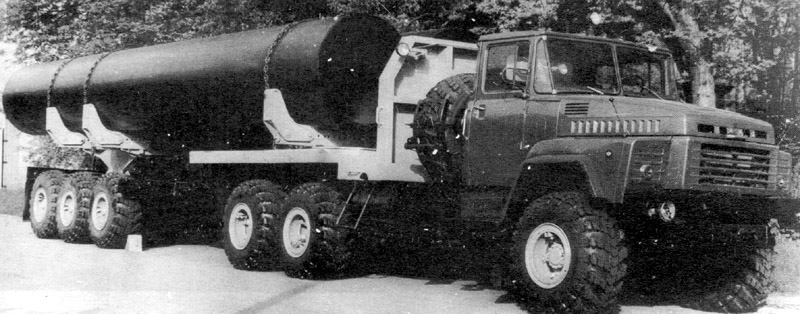

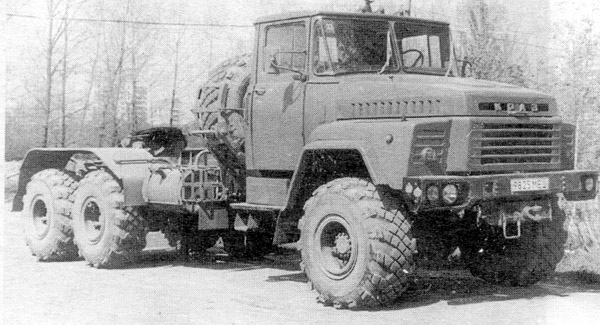

34 KB (color, front view [KrAZ-260V] [109]) 93 KB (b/w, side view [KrAZ-260V] [3]) 76 KB (b/w, side view [KrAZ-260V] [3]) 27 KB (b/w, side view [KrAZ-250] [3]) 92 KB (b/w, front view [KrAZ-250 crane] [3]) |
- | |
* In recent years, KrAZ-260 seems to have been renamed into KrAZ-6322. Also, it has been equipped with a more powerful YaMZ-238BL engine as the one on KrAZ-260G.
** (parenthesis) specify technical parameters of KrAZ-260V that are different from those of KrAZ-260.
This family of diesel trucks succeeded
KrAZ-255 series.
KrAZ-260 is a flatbed truck with folding benches and a 53 meter long, 22 mm diameter, 118 N·m winch. KrAZ-260V is a tractor for work with semi-trailers. KrAZ-260G is a chassis can be used with different equipment.
