YaAZ-210, YaAZ-218

SovAvto Website.

Model  YaAZ-210
Seating 3
Net-weight, kg [lb] 10,000 [22,000]
Full load weight, kg [lb] -
Load weight, kg [lb] 12,000 [26,400]
Total trailer weight, kg [lb] -
Length, mm [in.] -
Width, mm [in.] -
Height, mm [in.] -
Base, mm [in.] -
Minimal clearance, mm [in.] -
Minimal radius of turn, m [yards] -
Maximum speed, km/h [mi/h] 55 [34]
Maximum horsepower, hp [kW] 165 [123]
Maximum torque, N·m [lb·ft] 70.5 [458]
Engine displacement, liters [cc] 6.97 [6,970]
Compression ratio 16.0:1
Gear ratios -
Main gear ratio -
Mileage, liters/100km [mi/gal] 60 [3.9]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] -
Years of production 1951-1958
Type of engine 6 cyl., diesel, 2-tact
Bore/Stroke, mm [in.] 108.0 [4.25]/ 127.0 [5.00]
Wheel formula 6 X 4
Pictures  see below

Below are modifications:

Model Year of prod. Type of body Distinguishing technical parameters Photos

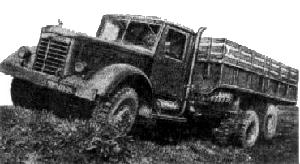

YaAZ-210A 1951-1958 flatbed truck (info given above) 12 KB b/w, front view [104]

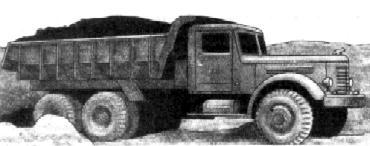

YaAZ-210E 1951-1957 dump-truck net mass 12,000 kg [26,400 lbs], load mass 10,000 kg [22,000 lbs], 45 km/h [28 mph], 80L/100 km [2.9 m/gal] 12 KB b/w, side view [104]

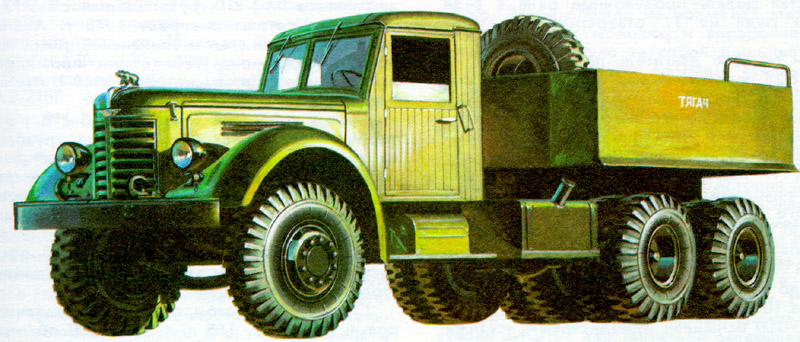

YaAZ-210G 1951-1958 tractor net mass 12,360 kg [27,192 lbs], load mass 8,000 kg [17,600 lbs] + trailer mass 30,000 kg [66,000 lbs], 45 km/h [28 mph], 85L/100 km [2.8 m/gal] 132 KB color, side view [3], 8 KB b/w, side view [7]
YaAZ-210D 1951-1958 tractor

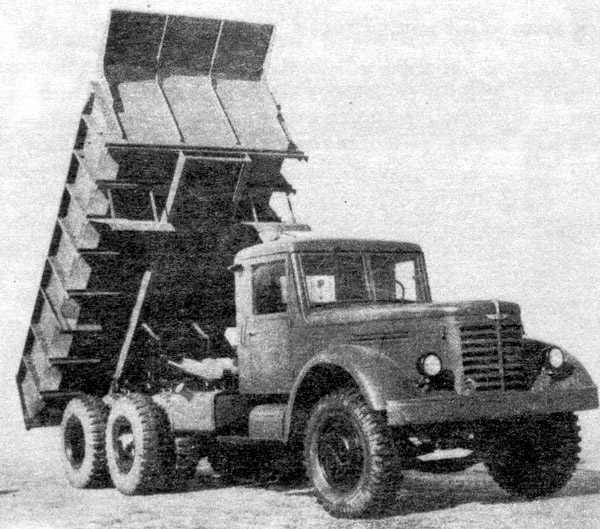

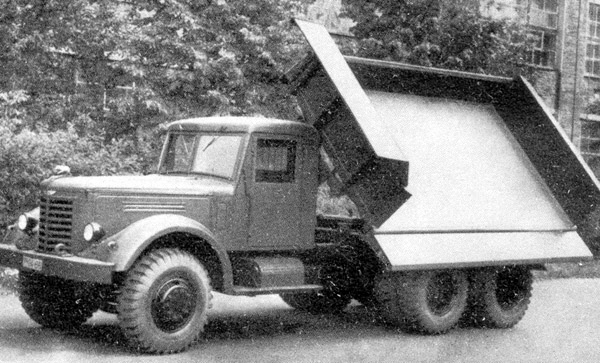

YaAZ-218 experimental 1957 dump-truck same technical parameters as YaAZ-210E 117 KB b/w, front view [3], 90 KB b/w, side view [3]

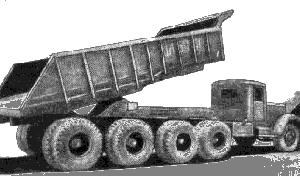

5 axle YaAZ-210E experimental dump-truck maximum load 25,000 kg [55,000 lbs] 13 KB b/w, side view [104]

This family of diesel trucks was succeeded by KrAZ-214 series.
