| Model | AZLK-2140 (AZLK-2137)* | |
| Seating | 5 | |
| Curb weight, kg [lb] | TOTAL | 1,080 [2,376] (1,120 [2,464]) |
| front axle | - | |
| rear axle | - | |
| Gross weight, kg [lb] | TOTAL | 1,480 [3,256] (1,520 [3,344]) |
| front axle | - | |
| rear axle | - | |
| Payload [carrying capacity] weight, kg [lb] | - | |
| Permissible [semi-]trailer weight, kg [lb] | - | |
| Length, mm [in.] | 4250 [13' 11 5/16"] (4210 [13' 9 3/4"]) | |
| Width, mm [in.] | 1550 [5' 1"] | |
| Height, mm [in.] | 1480 [4' 10 1/4"] (1525 [5' 0"]) | |
| Wheelbase, mm [in.] | 2400 [7' 10 1/2"] | |
| Track width, mm [in.] | front | - |
| rear | - | |
| Minimal ground clearance, mm [in.] | 173 [6 13/16"] (175 [6 14/16"]) | |
| Minimal radius of turn, m [yards] | - | |
| Maximum speed, km/h [mi/h] | 142 [88] (135 [84]) | |
| Fuel consumption, liters/100km [mi/gal] | 10 [23] (city cycle)/ 8.8 [27] (@ 90 km/h [56 mph]) | |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | 19 (22) | |
| Transmission | gearbox | 4 speed manual |
| gearbox ratios | - | |
| main gear ratio | - | |
| transfer case ratio | - | |
| clutch | - | |
| Wheels | number | - |
| tire size | - | |
| tire pressure, kg/cm2 | - | |
| Suspension | front | - |
| rear | - | |
| Steering | gear | - |
| gear ratio | - | |
| Brakes | braking distance, m [yards] | - |
| service (foot) | - | |
| parking (hand) | - | |
| Filling capacities, liters [gal] | fuel tank | 46 [12] (Ai-93) |
| engine cooling system | - | |
| engine lubrication system | - | |
| gearbox housing | - | |
| axle housing | - | |
| steering system cylinder | - | |
| shock absorbers | - | |
| air filter | - | |
| Carburetor | - | |
| Electric equipment | - | |
| Accumulator battery | - | |
| Generator [alternator] | - | |
| Relay-regulator | - | |
| Starter motor | - | |
| Timer-distributor | - | |
| Spark plugs | - | |
| Engine | engine type | UZAM-412, carb., 4-stroke, 4 inline cyl., OHV |
| cylinder work order | - | |
| maximum horsepower, hp [kW] | 75 [56] @ 5,800 | |
| maximum torque, N·m [lb·ft] | 11.2 [73] @ 3,000-3,800 rpm | |
| displacement, liters [cc] | 1.48 [1,478] | |
| compression ratio | 8.8:1 | |
| bore/stroke, mm [in.] | 82 [3.23]/ 70 [2.76] | |
| Years of production | 1976-1986 | |
| Wheel arrangement | 4 X 2 | |
| Pictures | see below | |
* parameters of AZLK-2137 (station wagon) that are different from those of AZLK-2140 (sedan) are given in (parenthesis).
In 1976, as a result of more changes to the Moskvich-408 and
412 family, AZLK-2140 came into existence. For some time (1969-1976)
transitional models sedan Moskvich-412IE and station wagon
Moskvich-427IE with 412 engine and sedan Moskvich-408IE and
station wagon Moskvich-426IE with 408 engine were made. These
transitional cars had a few changes done to their body and a
different braking system. Even when 2140 was in full scale
production, some of the cars were still equipped with
408 engines. This family of AZLK-2140 was
produced until 1986.
| Model | Specifications | Pictures |

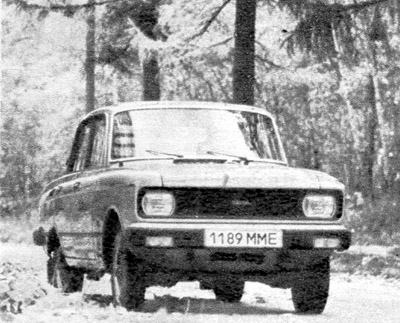

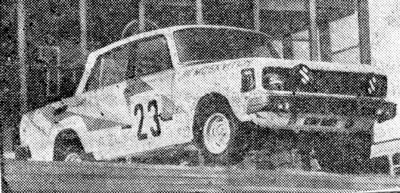

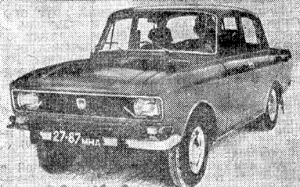

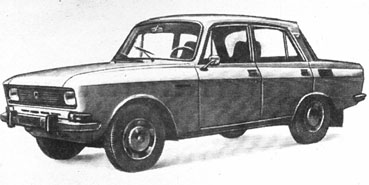

| AZLK-2140 | sedan | (52 KB b/w, side view, racing car [16]), (58 KB b/w, front view [16]), (36 KB b/w, front view [16]), (20 KB b/w, side view [86]), (16 KB b/w, side view [116]) |

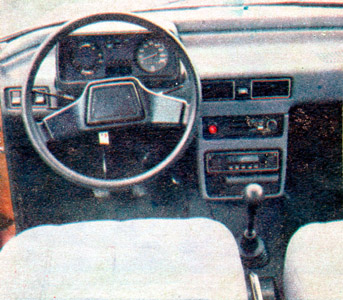

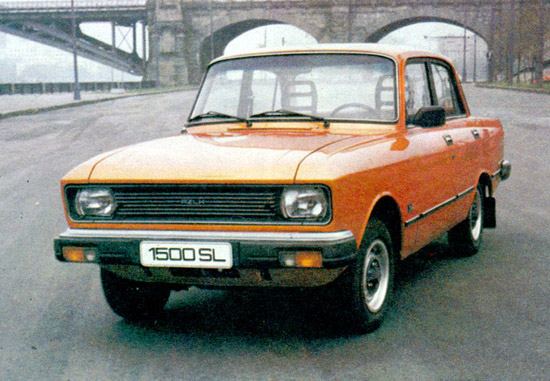

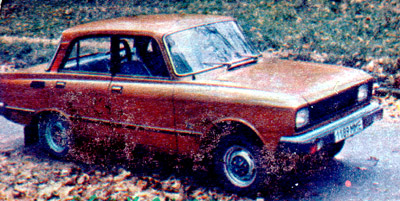

| AZLK-2140 SL | luxury sedan | (35 KB color, inscription on trunk [4]), (59 KB color, interior view [4]), (69 KB color, side view [4]), (96 KB color, front view [3]) |
| AZLK-21406 | rural sedan w/ 412D engine (compr. 7.2:1, 68 h.p., A-76 fuel) | same as AZLK-2140 |

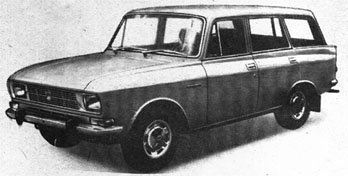

| AZLK-2137 | station wagon | (20 KB b/w, side view [86]) |

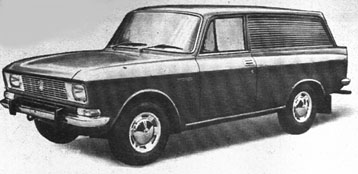

| AZLK-2734 | van w/ 400 kg [880 lb] load capacity | (19 KB b/w, side view [86]) |
| AZLK-2138 | sedan w/ 408 engine | same as AZLK-2140 |
| AZLK-2136 | station wagon w/ 408 engine | same as AZLK-2137 |
| AZLK-2733 | van w/ 400 kg [880 lb] load capacity w/ 408 engine | same as AZLK-2734 |
