| Model | ZIL-164 (ZIL-164A)* | ZIL-MMZ-585L (ZIL-MMZ-585M)** | ZIL-164N (164AN)*** |
| Seating | 3 | ||
| Net-weight, kg [lb] | 4,100 [9,020] | 4,175 [9,120] (4,300 [9,460]) | 3,825 [8,415] (3,775 [8,305]) |
| Full load weight, kg [lb] | 8,325 [18,315] | 7,900 [17,380] (8,025 [17,655]) | 7,890 [17,358] (7,840 [17,248]) {with 3,840 [8,448] on the supporting device} |
| Load weight, kg [lb] | 4,000 [8,800] | 3,500 [7,700] | - |
| Total trailer weight, kg [lb] | 6,400 [14,080] | - | 9,500 [20,900] |
| Length, mm [in.] | 6700 [264] | 6035 [238] (6040 [238]) | 5680 [224] |
| Width, mm [in.] | 2470 [97] | 2290 [90] (2450 [96]) | 2300 [91] |
| Height, mm [in.] | 2180 [86] | ||
| Base, mm [in.] | 4000 [157] | ||
| Minimal clearance, mm [in.] | 265 [10.4] | ||
| Minimal radius of turn, m [yards] | 8.5 [9.3] (outermost point) | ||
| Maximum speed, km/h [mi/h] | 75 [47] (70 [43]) | 65 [40] | 55 [34] |
| Maximum horsepower, hp [kW] | 97 [72] @ 2,600 rpm (100 [75] @ 2,800 rpm) | 100 [75] @ 2,800 rpm | 104 [78] @ 2,800 rpm |
| Maximum torque, N·m [lb·ft] | 33 [214] @ 1,100-1,400 rpm | 34 [221] @ 1,100-1,400 rpm | |
| Engine displacement, liters [cc] | 5.55 [5,555] | ||
| Compression ratio | 6.2:1 | ||
| Gear ratios | 6.24/3.32/1.90/1.00/0.81/R-6.70 (7.44/4.1/2.29/1.47/1.00/R-7.90) | 7.44/4.1/2.29/ 1.47/1.00/R-7.90 | 6.24/3.32/1.90/1.00/0.81/R-6.70 (7.44/4.1/2.29/1.47/1.00/R-7.90) |
| Main gear ratio | 7.63 (6.45) | 6.67 | 9.28 (6.97) |
| Mileage, liters/100km [mi/gal] | 27 [8.7] @ 30-40 km/h [19-25 mi/h] | ||
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - | - | - |
| Breaking distance, m [yards] | - | - | - |
| Fuel tank capacity, liters [gal] | 150 [40] (A-66) | 2 X 150 [2 X 40] (A-66) | |
| Years of production | 1957-1961 (1961-1964) | 1961-1964 | 1957-1961 (1961-1964) |
| Type of engine | ZIL-164, carb., 4-tact, 6 cyl., sv (ZIL-164A, carb., 4-tact, 6 cyl., sv) | ZIL-164A, carb., 4-tact, 6 cyl., sv | ZIL-164 (forcified), carb., 4-tact, 6 cyl., sv |
| Bore/Stroke, mm [in.] | 101.6 [4.00]/ 114.3 [4.50] | ||
| Wheel formula | 4 X 2 | ||
| Pictures | see below | see below | see below |
* in (parenthesis) are given technical parameters of ZIL-164A that are different from ZIL-164.
** in (parenthesis) are given technical parameters of ZIL-MMZ-585M that are different from ZIL-MMZ-585L.
*** in (parenthesis) are given technical parameters of ZIL-164AN that are different from ZIL-164N.
Basically, ZIL-164 replaced the previous
ZIL-150 based trucks. Their only outward
difference was that ZIS-150 had a horizontal radiator grill
design while ZIL-164 had a vertical one; however, many functional
parts were different. Then, from 1961-1964 the base truck ZIL-164A
came to the assembly line. Also, dump trucks in Mytishchi Machine-building
Plant (Zavod) [near Moscow], [1961-1964] were made on the chassis
of ZIL-164A. This family of vehicles [1957-1964] was in 1964
replaced by ZIL-130.
See below for a detailed list of ZIL-164 family trucks.
| Model | Years of prod. | Features | Parameters | Pictures |

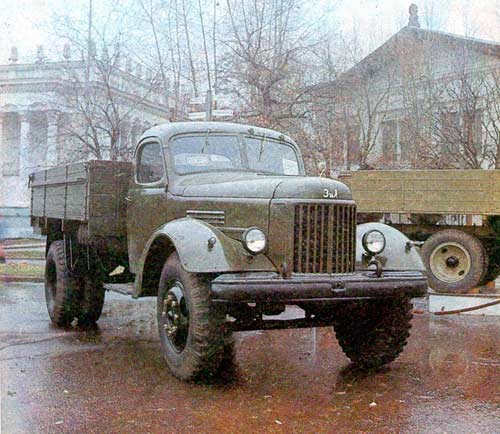

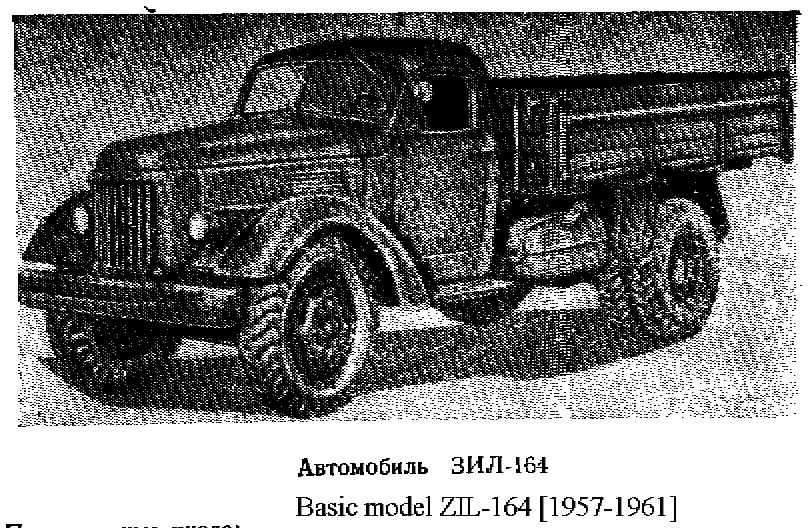

| ZIL-164 | 1957-1961 | basic board platform truck | see above | (10 KB color, front view [67]), (36 KB b/w, side view [1]), (12 KB color, side view, crane [67]), (44 KB color, front view [3]) |

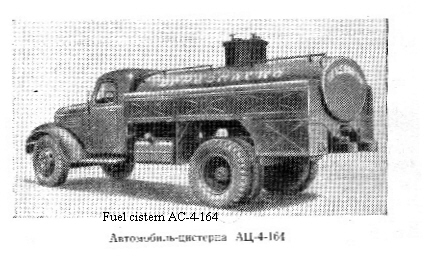

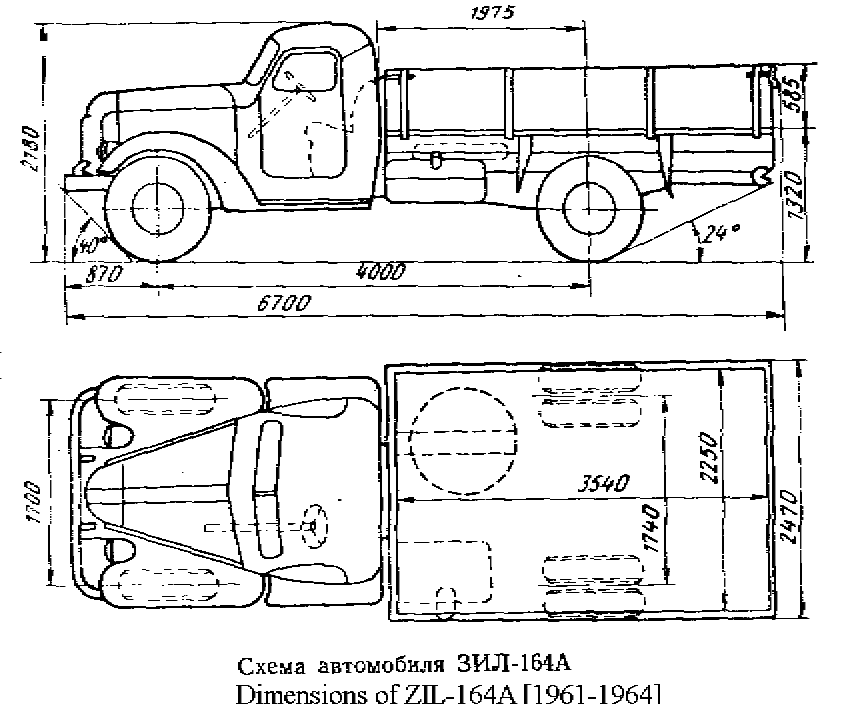

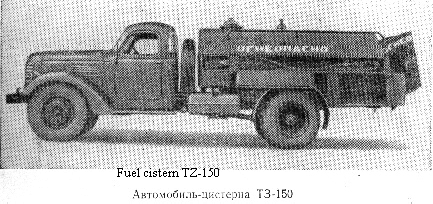

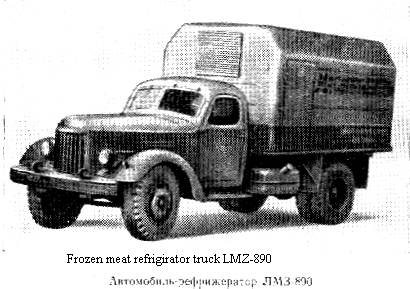

| ZIL-164A | 1961-1964 | basic board platform truck | ZIL-164 based but had different transmission, new braking system, and telescopic shock absorbers for the front wheels | (65 KB color, front view, drawing [106]), (78 KB b/w, side view, frozen meat transport, [LMZ-890] [1]), (20 KB b/w, dimensions [1]), (87 KB b/w, side view, fuel cistern, TZ-150 [1]), (98 KB b/w, side view, fuel cistern, [AC-4-164] [1]) |

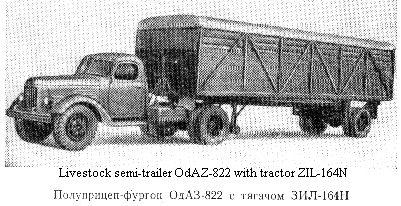

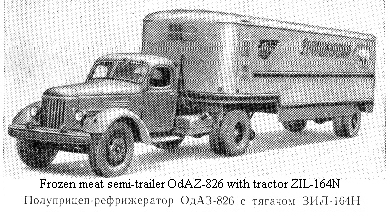

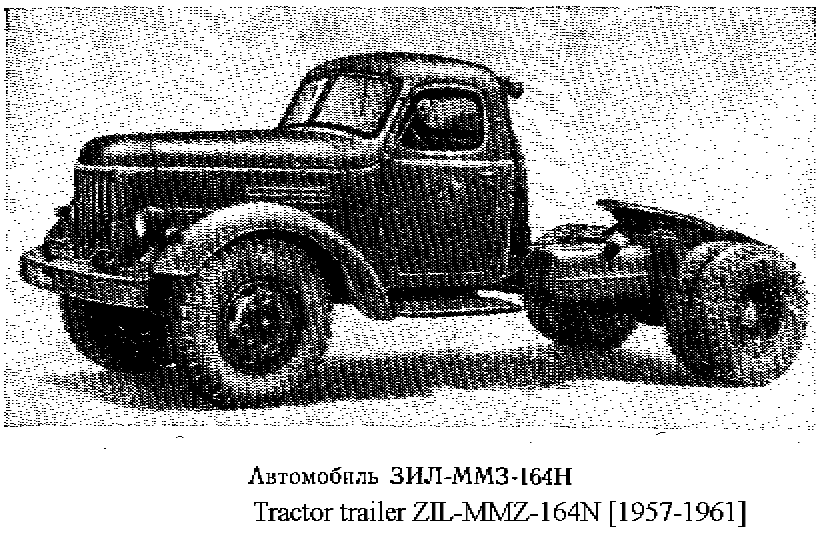

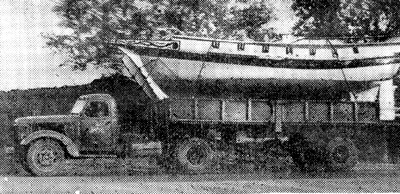

| ZIL-MMZ-164N | 1957-1961 | ZIL-164 based tractor trailer | see above | (29 KB (b/w, side view [1]), (68 KB b/w, side view, w/ OdAZ-822 semi-trailer, livestock transport [1]), (74 KB b/w, side view, w/ OdAZ-826 semi-trailer, frozen meat transport [1]), (49 KB b/w, side view, w/ boat [79]) |

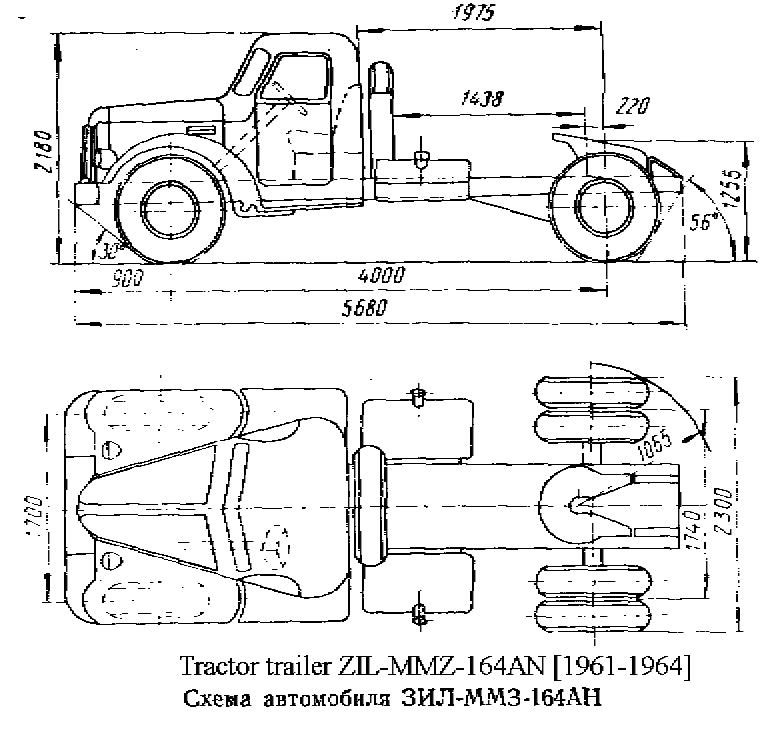

| ZIL-MMZ-164AN | 1961-1964 | ZIL-164A based tractor trailer | see above | (73 KB color, front view, drawing [106]), (19 KB b/w, dimensions [1]) |
| ZIL-MMZ-585I | 1957-1961? | ZIL-164 based construction dump truck | slightly longer but with lower sides then ZIL-MMZ-585L | - |

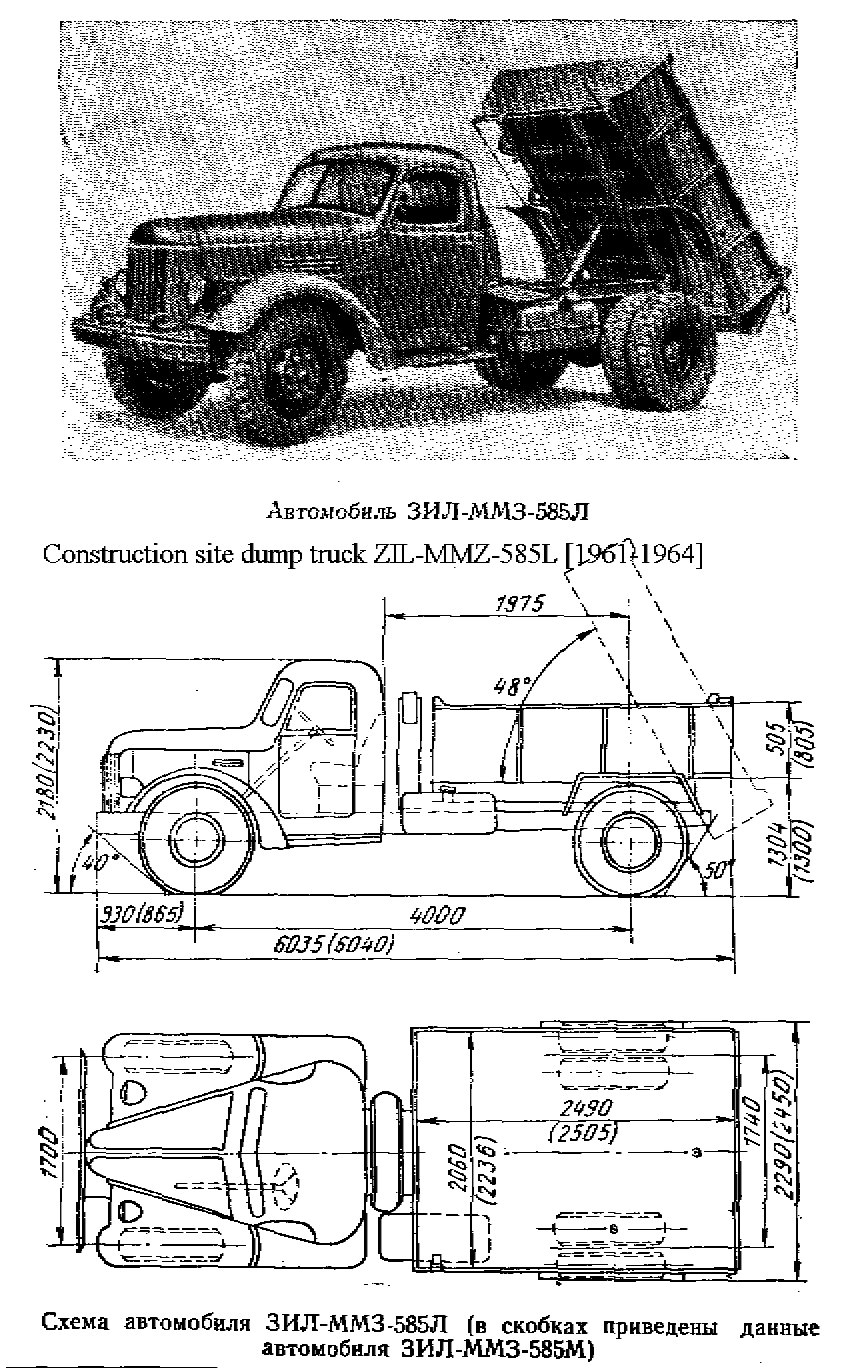

| ZIL-MMZ-585L | 1961-1964 | ZIL-164A based construction dump truck | see above | (62 KB color, side view, drawing [106]), (59 KB b/w, side view, w/ dimensions [1]) |
| ZIL-MMZ-585K | 1957-1961? | ZIL-164 based farm dump truck | slightly longer but with lower sides then ZIL-MMZ-585M | - |
| ZIL-MMZ-585M | 1961-1964 | ZIL-164A based farm dump truck | see above | - |
| ZIL-166A | 1957-1961 | ZIL-164 based gas cylinder truck | 280 kg [616 lb.] larger mass, in addition to petrol tank also 225L [60 gal.] liquid gas tank. slightly less power and torque in liquid gas mode | - |

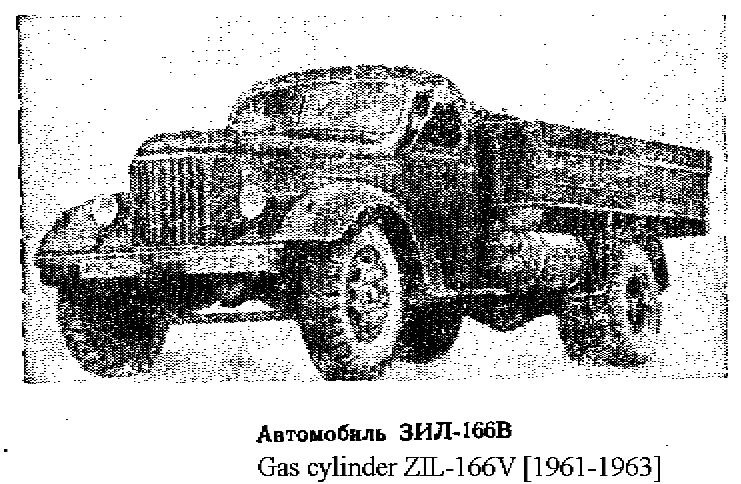

| ZIL-166V | 1961-1964 | (25 KB b/w, side view [1]) |
Page created on Monday, March 15, 1999. Page last updated on Sunday, February 10, 2002 02:02:01 AM EST.
