| Model | ZIS-150 | ZIS-120N | ZIS-156 (ZIS-156A)* |
| Seating | 3 | ||
| Net-weight, kg [lb] | 3,900 [8,580] | 3,815 [8,393] | 4,600 [10,120] |
| Full load weight, kg [lb] | 7,900 [17,380] | 13,315[29,293] | 8,100 [17,820] (8,600 [18,920]) |
| Load weight, kg [lb] | 4,000 [8,800] | - | 3,500 [7,700] (4,000 [8,800]) |
| Total trailer weight, kg [lb] | - | 9,500 [20,900] | - |
| Length, mm [in.] | 6720 [265] | - | - |
| Width, mm [in.] | 2385 [94] | - | - |
| Height, mm [in.] | 2180 [86] | - | - |
| Base, mm [in.] | 4000 [157] | - | - |
| Minimal clearance, mm [in.] | 265 [10.4] | - | - |
| Minimal radius of turn, m [yards] | 8 [8.8] | - | - |
| Maximum speed, km/h [mi/h] | 65 [40] | 55 [34] | 60 [37] (65 [40]) |
| Maximum horsepower, hp [kW] | 90 [67] @ 2,400 rpm | 74 [55] (85 [63]) | |
| Maximum torque, N·m [lb·ft] | 31 [201] | 27 [175] (28 [182]) | |
| Engine displacement, liters [cc] | 5.55 [5,555] | ||
| Compression ratio | 6.0:1 | 6.2:1 | 7.0:1 |
| Gear ratios | 5 speeds | - | - |
| Main gear ratio | - | - | - |
| Mileage, liters/100km [mi/gal] | 32.5 [7.2] | 38 [6.2] | - |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - | - | - |
| Breaking distance, m [yards] | - | - | - |
| Fuel tank capacity, liters [gal] | 150 [40] | - | - |
| Years of production | 1946-1957 | 1956-1957 | 1949-195? (1953-1957) |
| Type of engine | ZIS-150, 6 cyl., 4-tact, carb. | gas, 4-tact, 6 cyl. | |
| Bore/Stroke, mm [in.] | 101.6 [4.00]/ 114.3 [4.50] | ||
| Wheel formula | 4 X 2 | ||
| Pictures | 9 KB (b/w, side view, drawing,

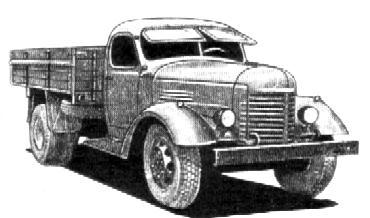

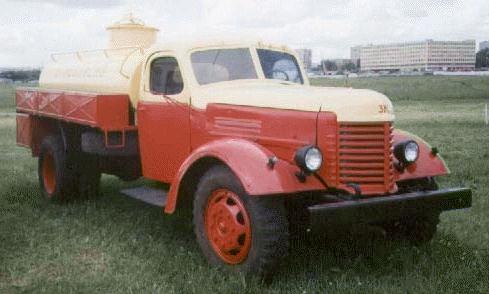

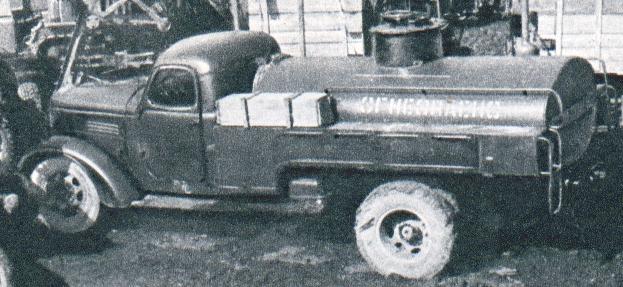

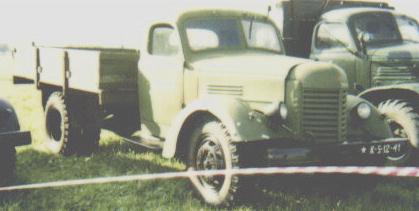

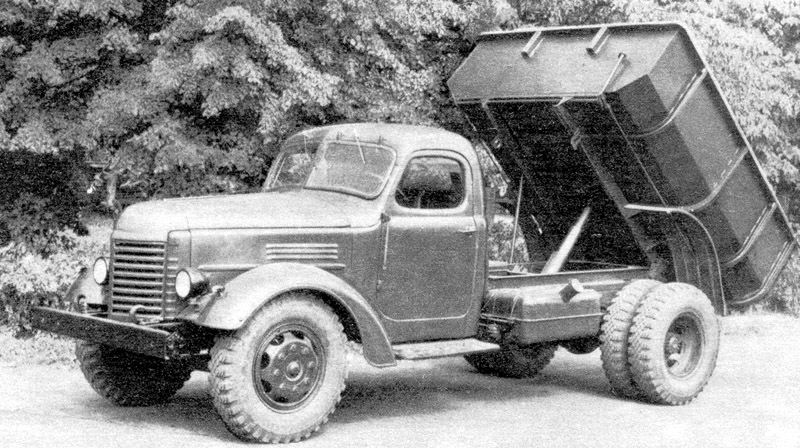

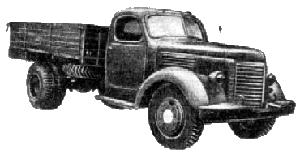

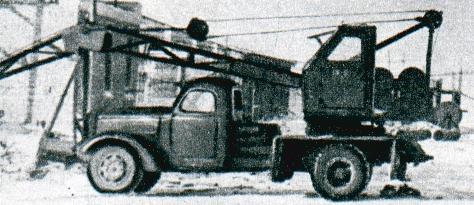

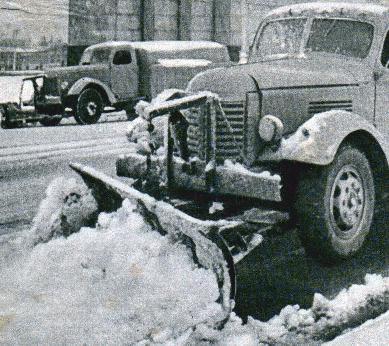

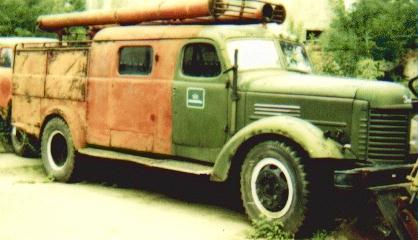

prototype [104]) 15 KB (color, front view, board platfrom [28]) 15 KB (b/w, front view, drawing [104]) 24 KB (color, front view, cistern truck [28]) 21 KB (color, side view, long cabin, fire-truck [28]) 11 KB (b/w, front view, wooden cabin-early variant [67]) 41 KB (b/w, front view, snow-plough truck [28]) 21 KB (b/w, side view, contact line repair [28]) 45 KB (b/w, side view, cistern truck [28]) 29 KB (b/w, side view, crane [28]) 14 KB (b/w, front view, dump-truck [ZIS-MMZ-585] [28]) 2 KB (b/w, front view, dump-truck [ZIS-MMZ-585] [28]) 152 KB (b/w, side view, lifted dump-truck [ZIS-MMZ-585E] [3]) |
- | |
* in (parenthesis) are given technical parameters of ZIS-156A that are different from ZIS-156.
Basically, ZIS-150 replaced the popular
ZIS-5 based trucks. ZIS-150 was, for the first
few years of production [1946-1948], made with a wooden cabin,
later changed to fully metal cabin. ZIS-120N is a tractor version
of ZIS-150 (similar in terms of most features and technical
parameters). ZIS-156 is a gas generator model of ZIS-150. This
family of vehicles [1946-1957] was in 1957 replaced by ZIL-164. Their
only outward difference was that ZIS-150 had a horizontal
radiator grill design while ZIL-164 had a vertical one.
