VAZ-2121 "Niva", VAZ-2131 "Niva", VAZ-2328 "Niva"

SovAvto Website.



Click here or scroll down to see info on modifications: VAZ-21213, VAZ-21214, VAZ-21217, VAZ-21219; VAZ-VIS-2346, VAZ-VIS-23461, VAZ-VIS-23461A; VAZ-2329

Model  VAZ-2121 "Niva" VAZ-2131 "Niva" VAZ-2328
Seating 5 5 2
Net-weight, kg [lb] 1,150 [2,530] 1,370 [3,014] 1,200 [2,640]
Full load weight, kg [lb] 1,550 [3,410] 1,870 [4,114] -
Load weight, kg [lb] - - 450 [990]
Total trailer weight, kg [lb] - - -
Length, mm [in.] 3720 [146] 4240 [167]
Width, mm [in.] 1680 [66]
Height, mm [in.] 1640 [65]
Base, mm [in.] 2200 [87] 2700 [106]
Minimal clearance, mm [in.] 220 [8.7]
Minimal radius of turn, m [yards] - - -
Maximum speed, km/h [mi/h] 132 [82]
Maximum horsepower, h.p. [kW] 75 [56] @ 5,400 rpm 81 [60] @ 5,200 rpm 79 [59] @ 5,400 rpm
Maximum torque, N·m [lb·ft] 18 [116] @ 3,000 rpm 20 [127] @ 3,200 rpm 20 [127] @ 3,200 rpm
Engine capacity, liters [cm3] 1.6 [1,569] 1.7 [1,690] 1.7 [1,690]
Gear ratios 4 gears 5 gears 5 gears
Main gear - - -
Mileage, liters/100km [miles/gal] 11.6 [20] city cycle 11.9 [20] city cycle -
Breaking distance, m [yards] - - -
Fuel tank capacity, liters [gal] 42 [11] 65 [17] 2 X 42 [2 X 11]
Years of production 1977-1993 1993-present 1993-present
Type of engine VAZ-2106, carb, 4 lin. cyl., ohc, 8.5:1 VAZ-21213, fuel injector, 4 lin. cyl., ohc, 9.3:1
Bore/Stroke, mm [in.] 79 [3.11]/ 80 [3.15] 82 [3.23]/ 80 [3.15]
Acceleration from 0-100 km/h [0-62 mi/h], sec. 23 25 25
Wheel formula 4 X 4
Pictures  see below see below see below

Top of page

Here is info on VAZ-21213, VAZ-21214, VAZ-21217, VAZ-21219; VAZ-VIS-2346, VAZ-VIS-23461, VAZ-VIS-23461A; VAZ-2329
Model Net/Full Mass, kg [lb] Max speed, km/h [mi/h] Engine, h.p. [kW] other info (wheel base, mm [in.]) Pictures , descriptions

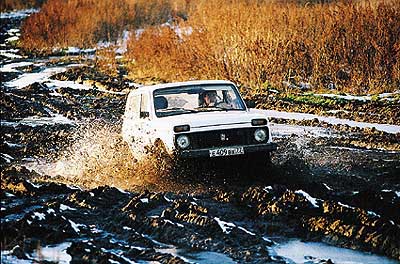

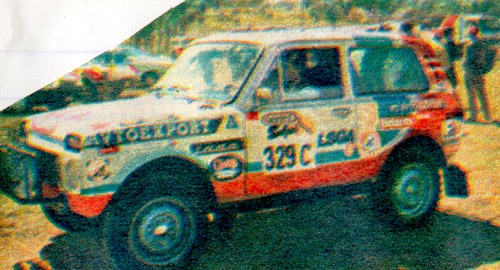

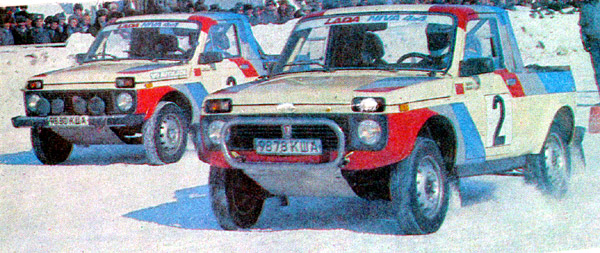

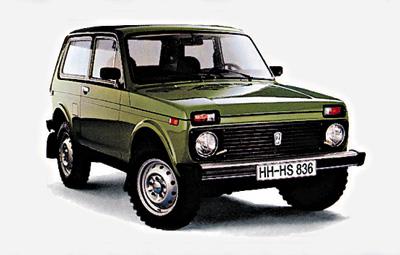

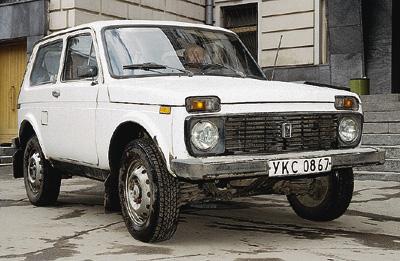

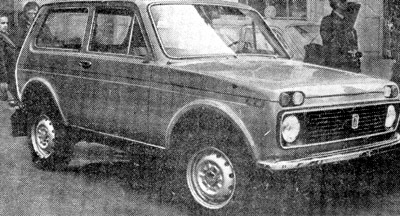

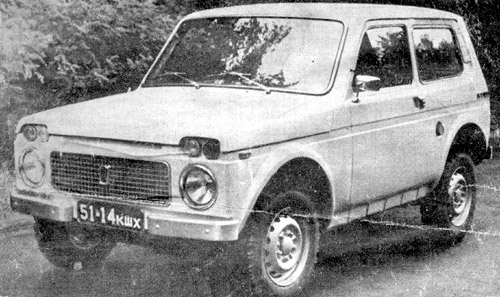

VAZ-2121 "Niva" 1,150 [2,530]/ 1,550 [3,410] 132 [82] VAZ-2106, carb, 4 lin. cyl., ohc, 8.5:1, 75 [56] @ 5,400 rpm 1977-1993 this is the first "Niva" (seats 5) (2200 [87]) 3 doors 27 KB (color, front view [4])/ 18 KB (color, front view [4])/ 57 KB (color, front view, in mud [4]), 9 KB (color, front view [12]), 45 KB (b/w, side view view [16]), 66 KB (b/w, front view, unusual radiator [16]), 91 KB (color, side view, racing car [4]), 113 KB (color, front view, 2 racing cars, w/ cut-off bodies [4])

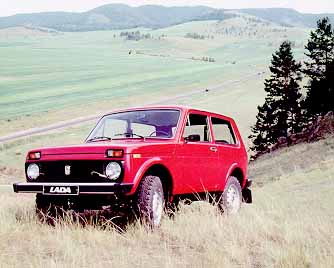

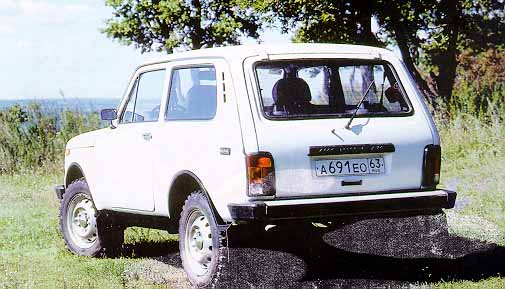

VAZ-21213 "Niva" 1,212 [2,666]/- 120 [74]-137 [85] 1.6L carb. (132 km/h, 72 [53.7]), 1.7L [VAZ-21213] carb. (137 km/h, 78 [58]), 1.7L fuel inj.(137 km/h, 78 [58]), 1.9L diesel (120 km/h, 62 [46]) 1993-present (seats 5) (2200 [87]) 3 doors 104 KB (color, front view, in Trubnikovo [Len. obl.] [30]), 37 KB (color, rear view [53]), 18 KB (color, front view [53]), 10 KB (color, engine [53])

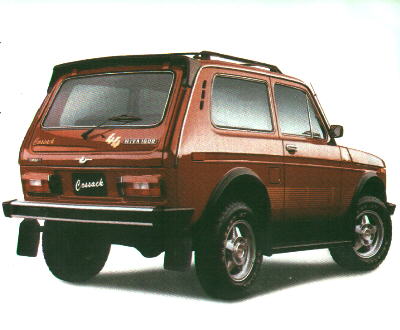

VAZ-21214 "Niva" 1,212 [2,666]/ 1,610 [3,542] 137 [85] VAZ-21213, fuel injector, 4 lin. cyl., ohc, 9.3:1, 78 [58] 1993-present, along with standard model, more luxurious "Cossack" is available (seats 5) (2200 [87]) 3 doors 22 KB (color, rear view of "Cossack" [12])/ 28 KB (color, side view [12])
VAZ-21217 "Niva" 1,212 [2,666]/ 1,610 [3,542] 132 [82] VAZ-2106, carb, 4 lin. cyl., ohc, 8.5:1, 75 [56] @ 5,400 rpm 1993-present (seats 5) (2200 [87]) 3 doors same as VAZ-21214 "Niva"

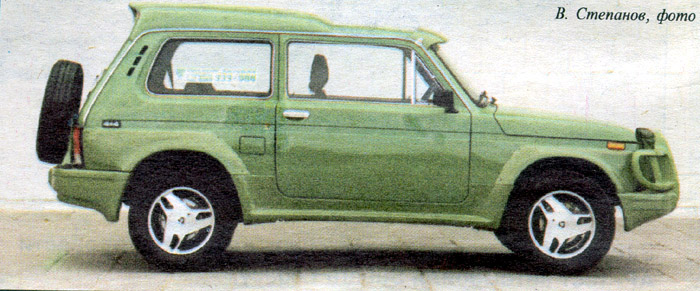

VAZ-212180 "Fora" - - - more comfortable then VAZ-21213 94 KB (color, side view [13])
VAZ-212182 "Force" - - - armored vehicle [for banking purposes] 9 KB (color, front view [53])
VAZ-21219 "Niva" 1,180 [2,596]/ 1,640 [3,608] 125 [78] Peugeot XUD 9A, 1.905L, fuel inj., 65 [48] @ 4,600 rpm (Ai-93) 1985-present (seats 5) (2200 [87]) 3 doors -
VAZ-2129 1,350 [2,970]/ 1,750 [3,850] 132 [85] VAZ-21213, carb., 4 lin. cyl., ohc, 9.3:1, 78 [58] 1993-present (seats 4) (2700 [106]) 3 doors, 42L [11 gal.] tank -
VAZ-2130 1,350 [2,970]/ 1,800 [3,960] 132 [85] VAZ-21213, carb., 4 lin. cyl., ohc, 9.3:1, 78 [58] 1993-present (seats 5) (2700 [106]) 3 doors, 2 X 42L [2 X 11 gal.] tanks -

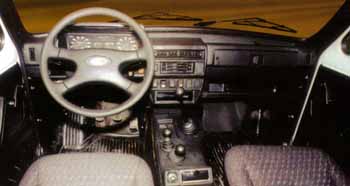

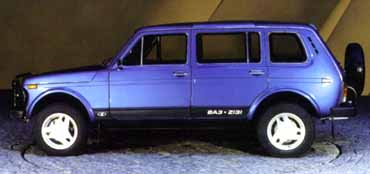

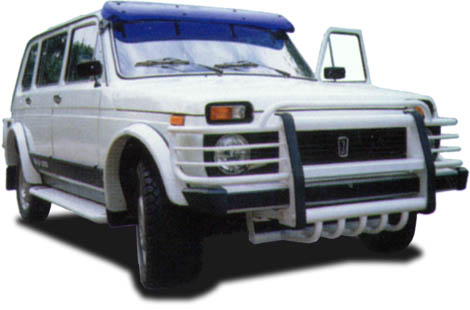

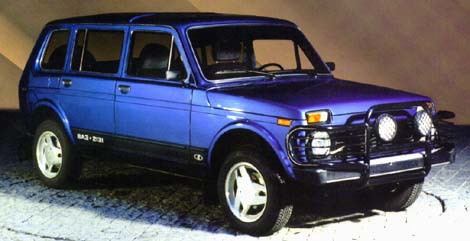

VAZ-2131 "Niva" 1,370 [3,014]/ 1,870 [4,114] 132 [85] VAZ-21213, carb., 4 lin. cyl., ohc, 9.3:1, 78 [58] 1993-present (seats 5) (2700 [106]) 5 doors, 65L [17 gal.] tank 19 KB (color, front view [7])/ 22 KB (color, side view [4])/ 10 KB (color, interior view [53]), 9 KB (color, side view [53]), 22 KB (color, side view [53]), 29 KB (color, front view [12])
VAZ-21312 "Niva" 1,370 [3,014]/ 1,870 [4,114] 132 [85] VAZ-2130, carb., ohc, 4 lin. cyl., 9.4:1, 82 [61] @ 5,200 rpm, 1.774L 1993-present (seats 5) (?2700 [106]?) 5 doors, 65L [17 gal.] tank similar to VAZ-2131 "Niva"

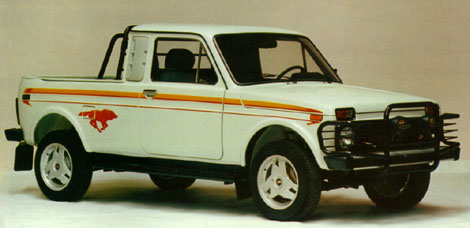

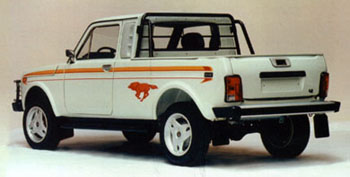

VAZ-2328 1,200 [2,640]/- 132 [85] VAZ-21213, carb., 4 lin. cyl., ohc, 9.3:1, 78 [58] 199?-present (seats 2 + 450 kg [990 lb.]) (2700 [106]) 2 doors, 2 X 42L [2 X 11 gal.] tanks 27 KB (color, side view [12])/ 17 KB (color, rear view [12])

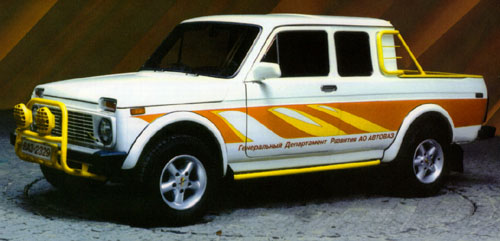

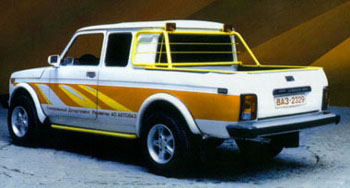

VAZ-2329 1,200 [2,640]/- 132 [85] VAZ-21213, carb., 4 lin. cyl., ohc, 9.3:1, 78 [58] 199?-present (seats 4 + 300 kg [660 lb.]) (2700 [106]) 2 doors, 2 X 42L [2 X 11 gal.] tanks 34 KB (color, side view [12])/ 21 KB (color, rear view [12]), 20 KB (color, front view, 2 doors but not truck version [53])

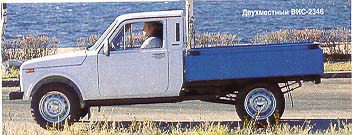

VAZ-VIS-2346 1,280 [2,816]/ 1,930 [4,246] - probably VAZ-21213 199?-present (seats 2 + 490 kg [1,078 lb.]) (2850 [112]) 2 doors, 42L [11 gal.] tank 23 KB (color, side view [12])

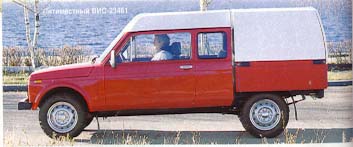

VAZ-VIS-23461 1,320 [2,904]/ 1,970 [4,334] - probably VAZ-21213 199?-present (seats 5 + 265 kg [583 lb.]) (2850 [112]) 2 doors, 42L [11 gal.] tank 18 KB (color, side view [12])

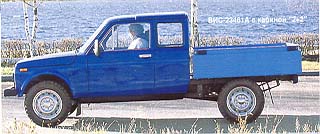

VAZ-VIS-23461A 1,300 [2,860]/ 1,950 [4,290] - probably VAZ-21213 199?-present (seats 4 + 340 kg [748 lb.]) (2850 [112]) 2 doors, 42L [11 gal.] tank 20 KB (color, side view [12])

All of the above cars are 4 X 4 and run on Ai-93 gasoline. Many are available for sale from Avto-VAZ for a very moderate price. VAZ-2131 chassis is also used to make VAZ-2120 van.
