Scroll down or click here to see info on about 20 Urals
| Model | Ural-4320 |
| Seating | 3 |
| Net-weight, kg | - |
| Full load weight, kg | - |
| Load weight, kg | - |
| Total trailer weight, kg | - |
| Length, mm | - |
| Width, mm | - |
| Height, mm | - |
| Base, mm | - |
| Minimal clearance, mm | - |
| Minimal radius of turn, m | - |
| Maximum speed, km/h | - |
| Maximum horsepower, hp | 240 |
| Engine capacity, liters | - |
| Gear ratios | - |
| Main gear ratio | - |
| Mileage, liters/100km | - |
| Breaking distance, m | - |
| Fuel tank capacity, liters | - |
| Years of production | - |
| Type of engine | YaMZ-238M2, V8 Diesel |
| Wheel formula | 6 X 6 |
| Pictures | 54 KB (color, side view [19/4]) |
| Model | Wheel Formula | Full Mass, kg | Max speed, km/h | Engine, h.p. | other info | Pictures , descriptions |

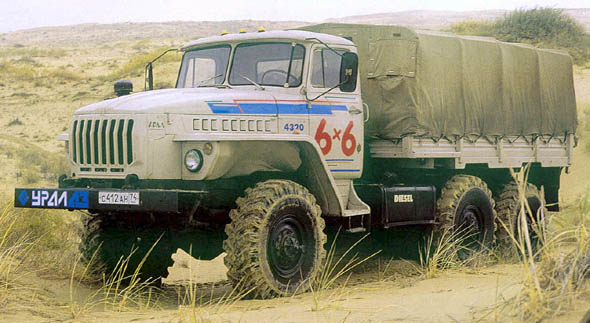

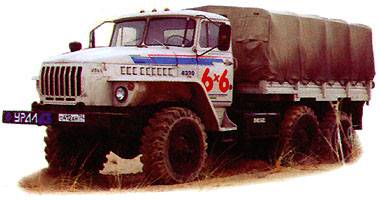

| Ural-4320-31 (platform lorry with tent) | 6 X 6 | 15,300 | 82 | YaMZ-238M2, V8 Diesel, 240 h.p. | 6000 kg cargo or 27 people + 11,500 trailer | 15 KB (color, platform truck with a tent [61]), 55 KB (color, side view [59]) |

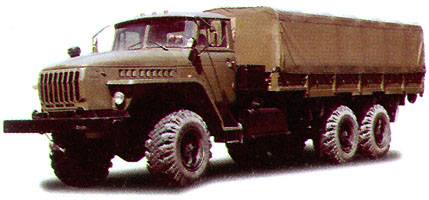

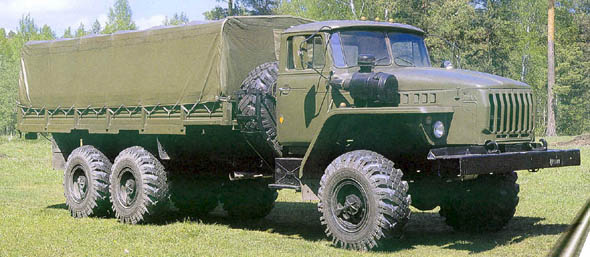

| Ural-4320-0911-30 (platform lorry with tent) | 6 X 6 | 11,500 (net weight) | 75 | YaMZ-238M2, V8 Diesel, 240 h.p. | up to 39 people | 15 KB (color, differs from Ural-4320-31 by having a longer chassis [61]), 50 KB (color, side view [59]) |

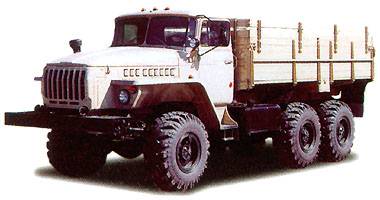

| Ural-43202-0351-31 (platform lorry) | 6 X 6 | 16,150 | 80 | YaMZ-238M2, V8 Diesel, 240 h.p. | 7,000 kg cargo + 11,500 trailer | 15 KB (color, platform lorry [61]) |

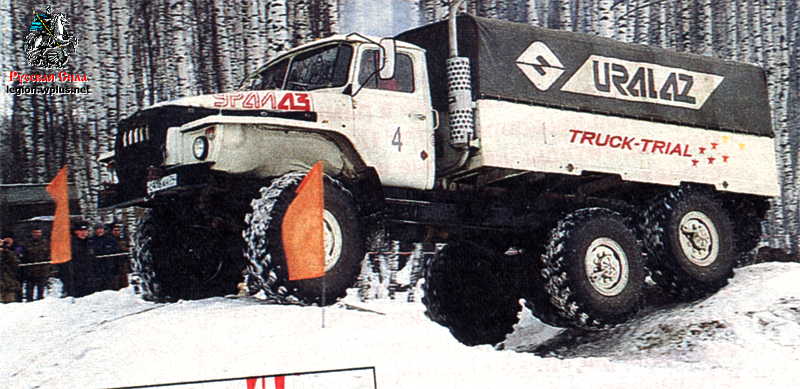

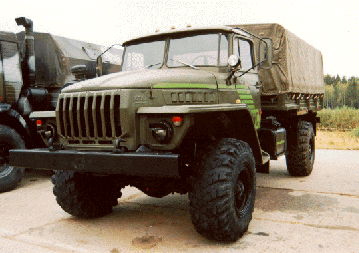

| Ural-43206 (platform lorry with tent) | 4 X 4 | 12,150 | 85 | YaMZ-236M2, V6 Diesel, 180 h.p. | 4,200 kg cargo or 27 people | 15 KB (color, transports either cargo or people [61]), 22 KB (color, front view [19/57]), 87 KB (color, rear view in competition [19/56]) |

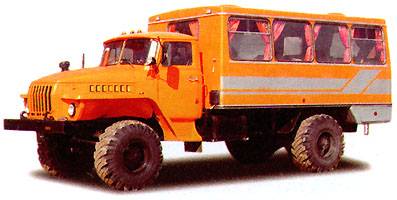

| NZAS-42116 (bus on Ural-43206 chassis) | 4 X 4 | 11,000 | 85 | YaMZ-236M2, V6 Diesel, 180 h.p. | 25 people | 16 KB (color, equipped with an intercom and heating and ventilation [61]) |

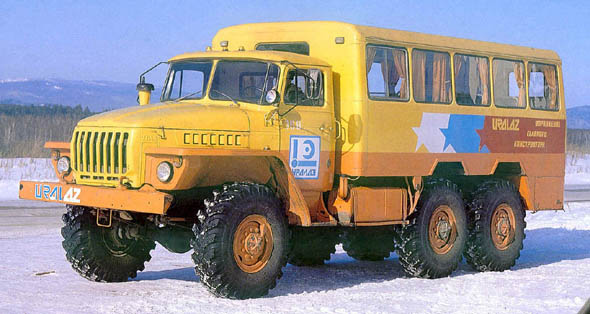

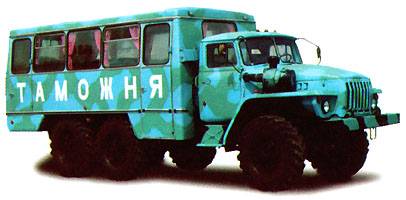

| NZAS-42112D (bus on Ural-4320-10 chassis) | 6 X 6 | 11,900 | 75 | YaMZ-236M2, V6 Diesel, 180 h.p. | 31 people | 15 KB (color [61]), 52 KB (color, side view [60]) |

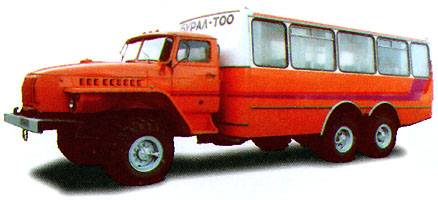

| Chavdar-F7 "Bural" (bus on Ural 4320-1911-30 chassis) | 6 X 6 | 14,670 | 75 | YaMZ-238M2, V8 Diesel, 240 h.p. | 33 people | 15 KB (color [61]) |

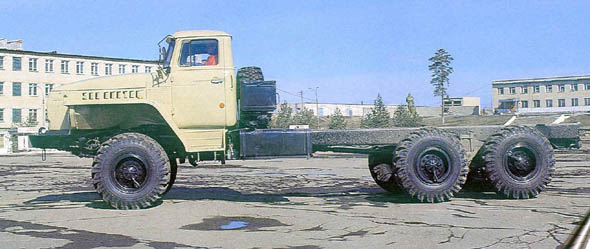

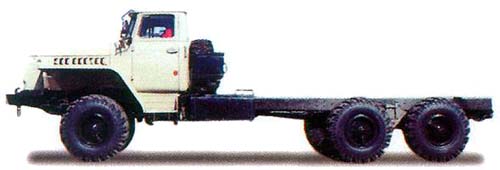

| Ural-4320-1911-30 (chassis to be used with special installations such as a bus body) | 6 X 6 | 20,535 | 75 | YaMZ-238M2, V8 Diesel, 240 h.p. | up to 12,000 kg can be loaded on the chassis | 15 KB (color [61]), 42 KB (color, side view [59]) |

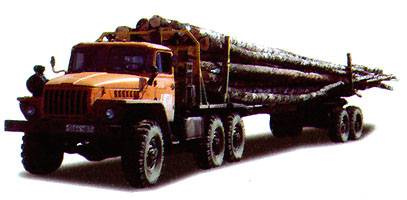

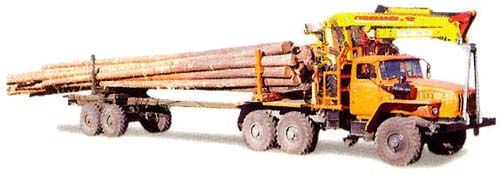

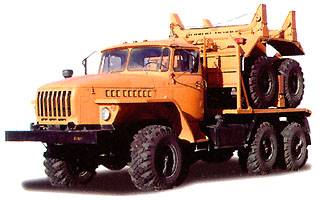

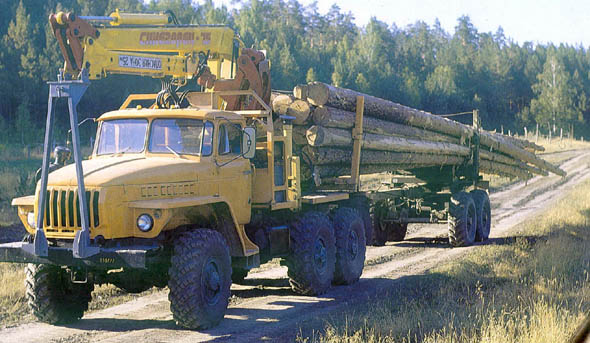

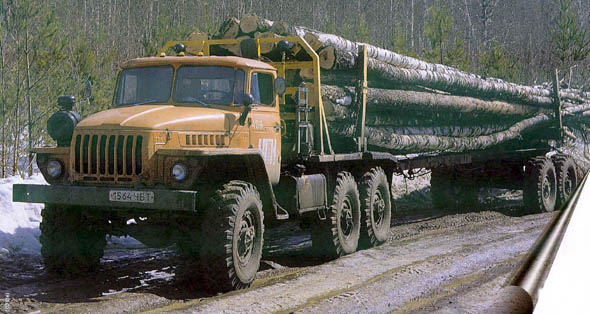

| Ural-43204-0011-31 with GKB 9851-01 (tractor with trailer) | 6 X 6 | tractor+ trailer 27,740 | 75 | YaMZ-238M2, V8 Diesel, 240 h.p. | carries 15,000 kg of timber | 13 KB (color, this tractor/trailer unit can carry timbers up to 23 meters long [61]), 23 KB (color [61]), 66 KB (color, front view [59]), 59 KB (color, front view [59]) (this weighs 1,000 kg more and is equipped with "Sinegorec-75" arm) |

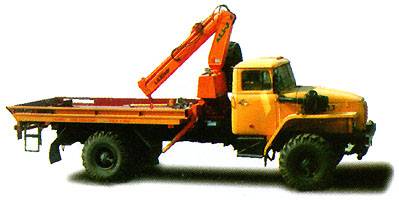

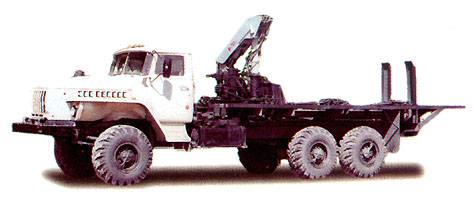

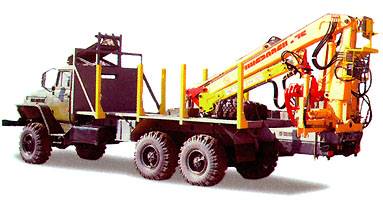

| Ural-4320-2952-30 (chassis with a mechanical manipulator arm) | 6 X 6 | 20,535 | 70 | YaMZ-238M2, V8 Diesel, 240 h.p. | 9,000 kg of cargo | 18 KB (color, can be used for any cargo, for more info on "Sinegorec-75" click here [61]) |
| Ural-43204-0011-31 (tractor with a 2 axle trailer) | 6 X 6 | 24,595 | 75 | YaMZ-238M2, V8 Diesel, 240 h.p. | 12,000 kg of pipes | 26 KB (color, carries pipes up to 12 m long and diameter from 530mm to 1420 mm [61]) |

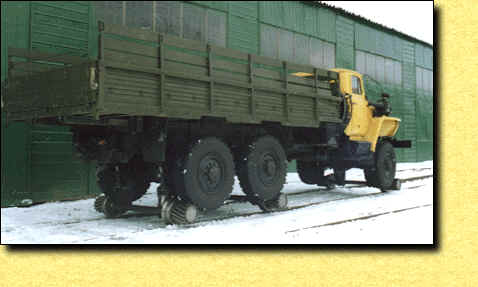

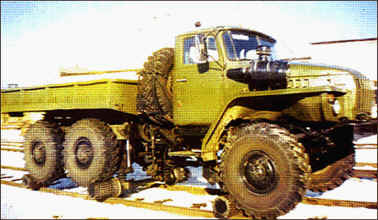

| Ural-4320-03 (with ability to move on rails) | 6 X 6 | 15,300 | 25 (on rails) | - | can operate on 1520 and 1435 mm railroads. | 17 KB (color, side view [60]), 16 KB (color, rear view [60]) 12-14 minutes required to change mode from regular to rail and back. |
| Ural-4320-? (military truck for boring wells) | 6 X 6 | - | - | - | bores 12-15 km/h in soils of 1-3 categories. | 5 KB (color, side view [60]) |
| Ural-4320-? (military tractor w/ semi-trailer for boring wells) | 6 X 6 | - | - | - | bores 12-15 km/h in soils of 1-3 categories. | 5 KB (color, front view [60]), 5 KB (color, front view [60]) |

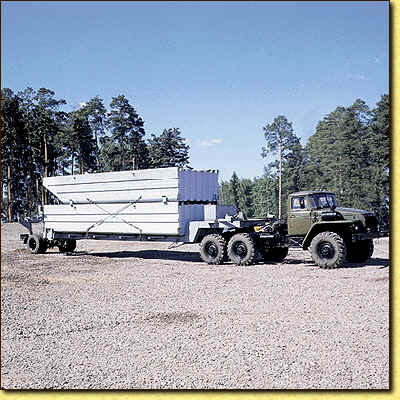

| ANS-10U (military tractor Ural-4320 w/ semi-trailer for pontoon transportation) | 6 X 6 | - | - | - | carries 2 pontoon sections | 32 KB (color, side view [60]) |

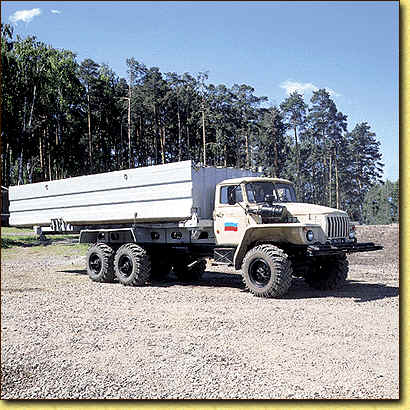

| ANS-5U (military truck Ural-4320 for pontoon transportation) | 6 X 6 | - | - | - | carries 1 pontoon section | 38 KB (color, side view [60]) |

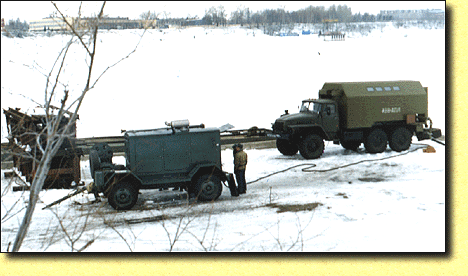

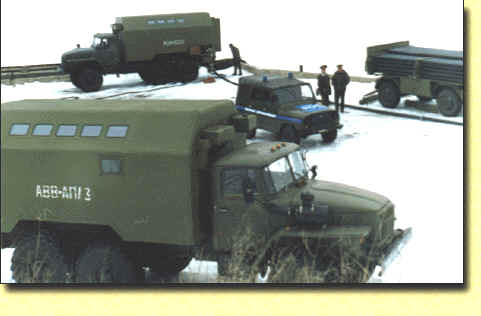

| AVV-2M (temporary water supply military truck on chassis of Ural-4320) | 6 X 6 | - | - | - | - | 15 KB (color, side view [60]), 73 KB (color, side view [60]) |

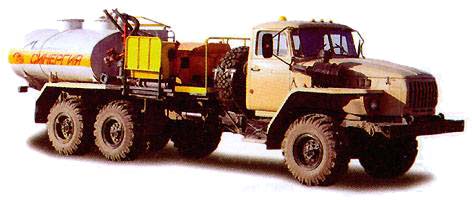

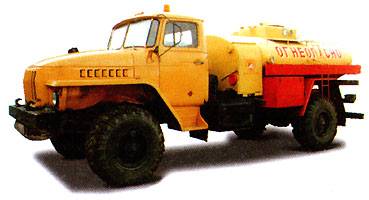

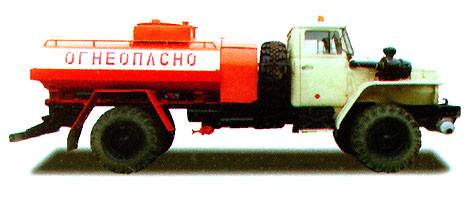

| 56452Y (fueling lorry on chassis of Ural-43206) | 4 X 4 | 12,790 | 85 | YaMZ-236M2, V6 Diesel, 180 h.p. | 5000L steel tank with zinc covering | 13 KB, 15 KB(color, fills itself in 15 minutes from a max height of 5.5 meters, acceptable density of petrol is 0.7-0.85 g/cm3 [61], [61]) |

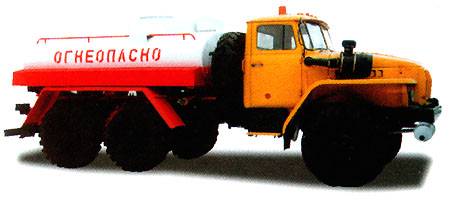

| 5645YA (fueling lorry on chassis of Ural-4320-1111-10) | 6 X 6 | 14,295 | 80 | YaMZ-238M2, V8 Diesel, 240 h.p | 6000L steel tank with zinc covering | 13 KB (color, fills itself in 15 min from 5.5 m, density of petrol 0.7-0.85 g/cm3, out-put @ 60 L/min [61]) |

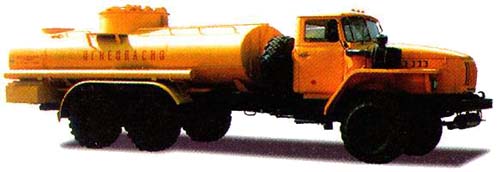

| ATZ-10-4320 (fueling lorry on chassis of Ural-4320-1912-30) | 6 X 6 | 20,100 | 75 | YaMZ-238M2, V8 Diesel, 240 h.p | 10,000L tank | 18 KB (color, fills itself in 25 min from 3 m height, density 0.7-0.85 g/cm3 [61]), 15 KB (this lorry is used on landing fields and airports [61]) |

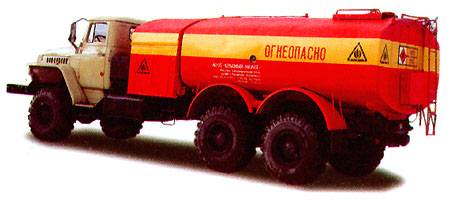

| ATZ-11,5-4320 (airport fueling lorry on chassis of Ural-4320-1912-30) | 6 X 6 | 20,625 | 75 | YaMZ-238M2, V8 Diesel, 240 h.p | 11,500L steel tank with anti corrosion treatment | 15 KB (color, used in airports [61]) |

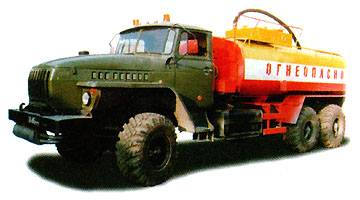

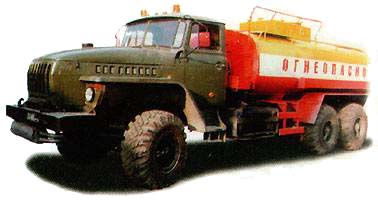

| 56453Y (fueling lorry on chassis of Ural-4320-1912-30) | 6 X 6 | 20,800 | 80 | YaMZ-238M2, V8 Diesel, 240 h.p | 12,000L tank | 13 KB, 18 KB (color, fills itself in 30 minutes, acceptable density of petrol is 0.7-0.85 g/cm3 [61], [61]) |

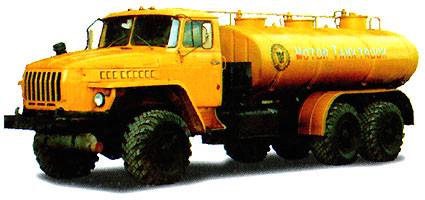

| ACN-10S-4320 (fluid transport lorry on chassis of Ural-4320-1912-30) | 6 X 6 | 20,500 | 75 | YaMZ-238M2, V8 Diesel, 240 h.p | 10,000L tank | 16 KB (color, fills itself in 6.5 minutes from a max height of 4 meters [61]) |

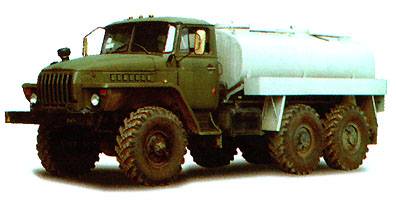

| ACPT-4,7 (drinking water storage and transportation tanker on chassis of Ural-4320-1912-10) | 6 X 6 | 13,910 | 75 | YaMZ-236M2, V6 Diesel, 180 h.p. | 4.7m3 bicameral tank | 13 KB (color, each of 2 sections of the tank is filled in 25 minutes [61]) |

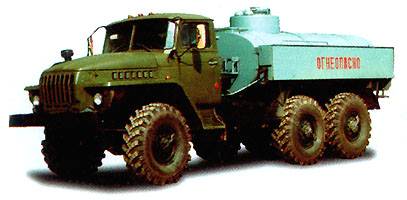

| 461026 (tanker on chassis of Ural-4320-10) | 6 X 6 | 13,750 | 75 | YaMZ-236M2, V6 Diesel, 180 h.p. | 6293L tank | 14 KB (color, fills itself in 15 min from 5.5 m [61]) |

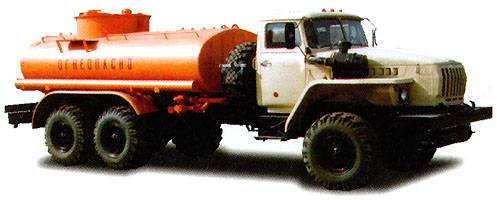

| AC-10-4320 (tanker for light petro-products on chassis of Ural-4320-1912-30) | 6 X 6 | 20,000 | 75 | YaMZ-238M2, V8 Diesel, 240 h.p | 10,000L tank | 17 KB (color, fills itself in 25 min from 3 m [61]) |
| AC-40 (fire engine on chassis of Ural-43202) | 6 X 6 | - | - | - | water is pumped at 40 liters/second | 53 KB (b/w, front view [152]) |

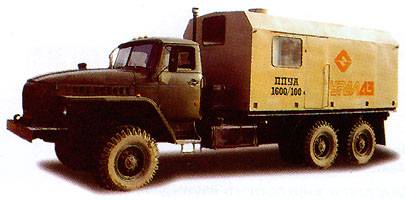

| PPUA-1600/100 (steam apparatus on chassis of Ural-4320-1912-30) | 6 X 6 | 20,535 | 75 | YaMZ-238M2, V8 Diesel, 240 h.p | water is made into 310 degree steam at 1600 kg/hour | 14 KB (color, steam apparatus used to defrost pipelines, steam pressur is 9.81 kPa, 110 kg/hour of diesel fuel is used [61]) |

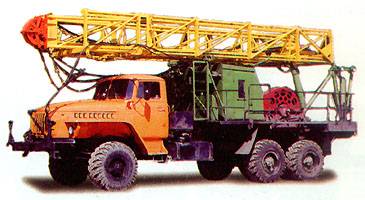

| A2-32 (crane on chassis of Ural-4320-1912-30) | 6 X 6 | 20,000 | 75 | YaMZ-238M2, V8 Diesel, 240 h.p | - | 19 KB (color, max weight on crane is 32 tc, max length is 12 meters [61]) |

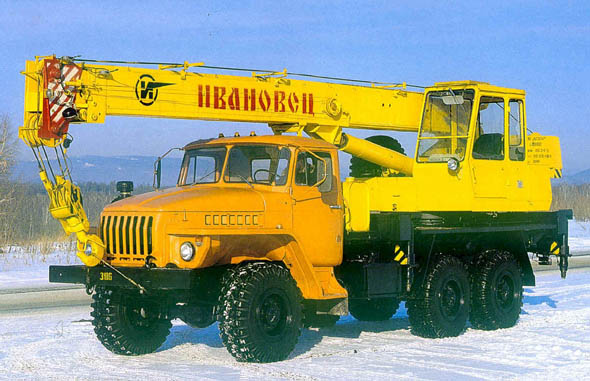

| Ural-KS-35714 (crane "Ivanovec" on chassis of Ural-4320) | 6 X 6 | 15,000 | - | YaMZ-236M2, V6 Diesel, 180 h.p. | 3 section telescopic jib, max length 18 m. | 65 KB (color, side view [59]) |

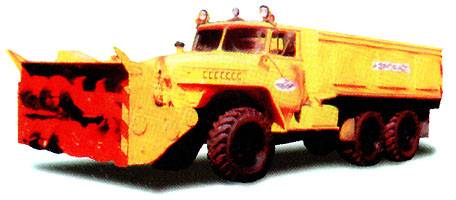

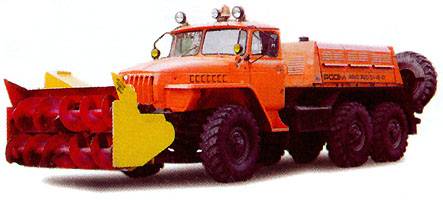

| KO-605 [DE210U] (snow sweeper on chassis of Ural-4320) | 6 X 6 | - | 50 (0.5- 30 for cleaning) | YaMZ-238B V8 Diesel with Turbo, 300 h.p. | Max depth 1.3 m, cleans 2.7 m wide | 15 KB (color, most snow is thrown 35 m away [61]) |

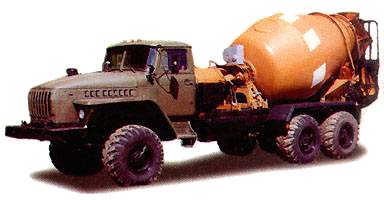

| SB-159B-2 (cement mixer on chassis of Ural-4320-1912-30) | 6 X 6 | 20,600 | 60 | YaMZ-238M2, V8 Diesel, 240 h.p | volume of the mixer is 5m3 | 19 KB (color, mixer rotates at 0-20 revolutions/inverse minutes [61]), [11 KB (color, SB-170-3) [61]] |

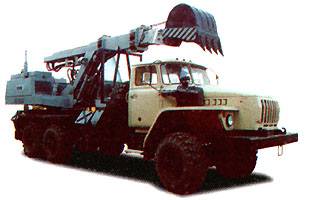

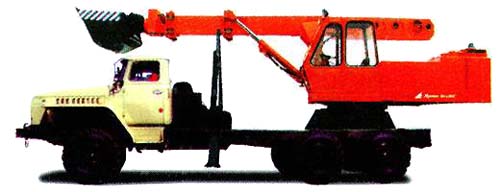

| EO-3533U (excavator on chassis of Ural-4320-1912-30) | 6 X 6 | 18,500 | 60 | YaMZ-238M2, V8 Diesel, 240 h.p | volume of bucket 0.5 m3, length of arm 7.6 m | 10 KB (color, max depth is 4.5 m, unloading at max 4.1 m, dig cycle is 18 sec, D-243 [75 h.p.] [61]) |

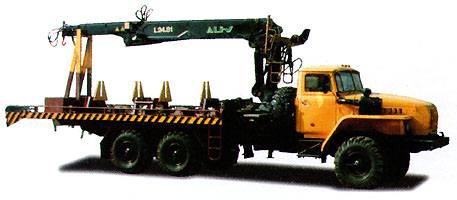

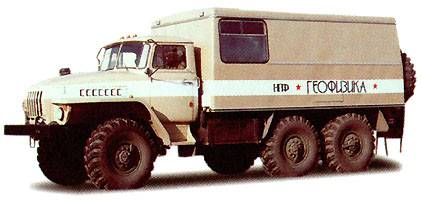

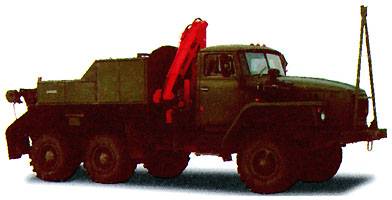

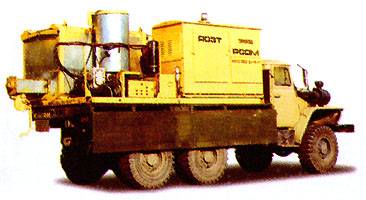

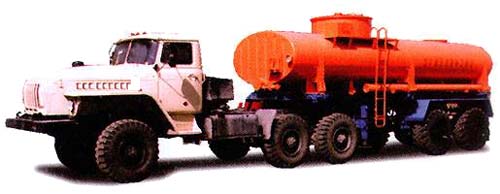

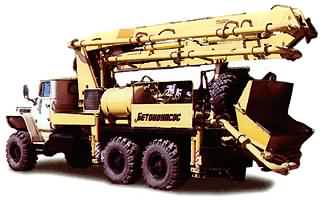

And here are a few more pictures: 25 KB, 16 KB, 16 KB, 14 KB, 14 KB, 15 KB, 12 KB, 14 KB, 14 KB, 20 KB, 21 KB, 11 KB, 15 KB, 13 KB, 11 KB [61]. Note, all of the Urals have tires that can be automatically pumped with air from the driver's controls.
