| Model | UAZ-3160 (UAZ-3162)* |
| Seating | 7 (9) |
| Net-weight, kg [lb] | 1,950 [4,290] |
| Full load weight, kg [lb] | 2,550 [5,610] |
| Load weight, kg [lb] | - |
| Total trailer weight, kg [lb] | - |
| Length, mm [in.] | 4240 [167] (4755 [187]) |
| Width, mm [in.] | 1820 [72] - w/out mirrors, 2020 [80] w/ mirrors |
| Height, mm [in.] | 1935 [76] |
| Base, mm [in.] | 2400 [94] (2756 [108]) |
| Minimal clearance, mm [in.] | 220 [8.7] |
| Minimal radius of turn, m [yards] | 6.3 [6.9] |
| Maximum speed, km/h [mi/h] | 140 [87] |
| Maximum horsepower, hp [kW] | 115 [86] @ 4,000 rpm |
| Maximum torque, N·m [lb·ft] | 34 [221] @ 2,500 rpm |
| Engine displacement, liters [cc] | 2.89 |
| Compression ratio | 8.2:1 |
| Gear ratios | 5 X 2 gears |
| Main gear ratio | - |
| Mileage, liters/100km [mi/gal] | 9.9 [24] @ 90 km/h [56] |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | 24 |
| Breaking distance, m [yards] | - |
| Fuel tank capacity, liters [gal] | 45 X 2 [12 X 2] Ai-93 |
| Years of production | 1996-present |
| Type of engine | UMZ-421.10, 4-tact, 4I cyl., carb., ohv |
| Bore/Stroke, mm [in.] | 100 [3.94]/ 92 [3.62] |
| Wheel formula | 4 X 4 |

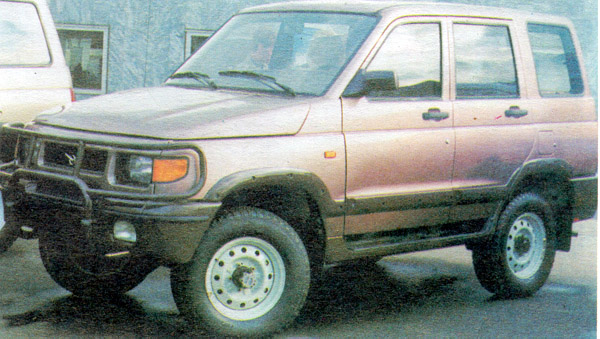

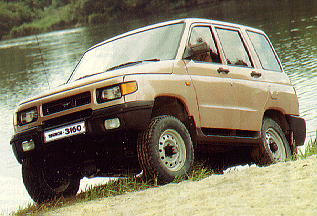

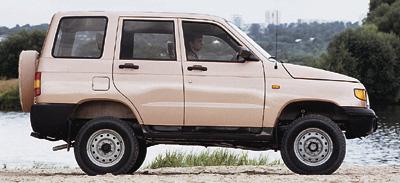

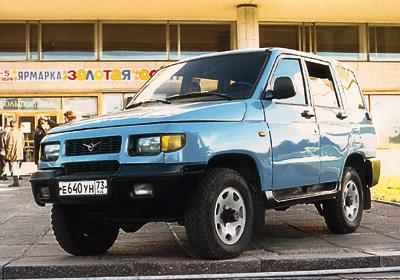

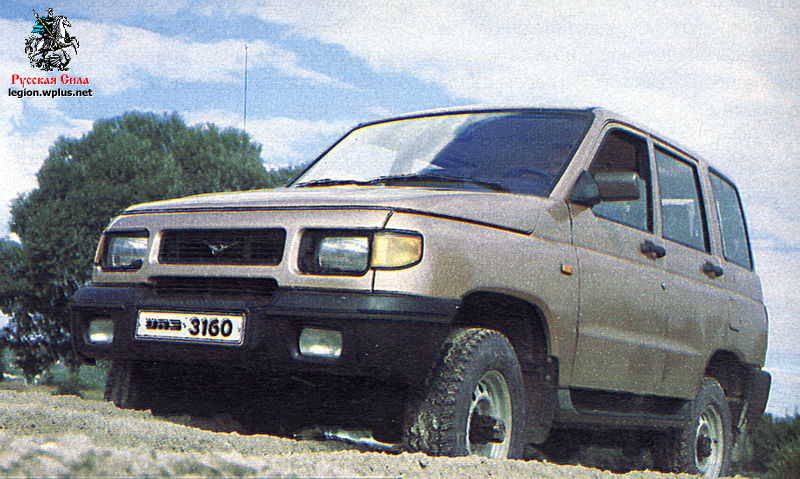

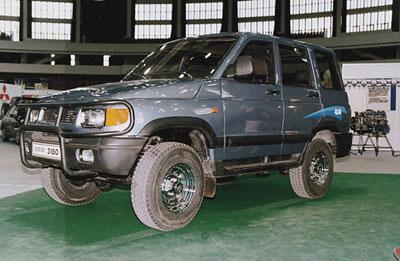

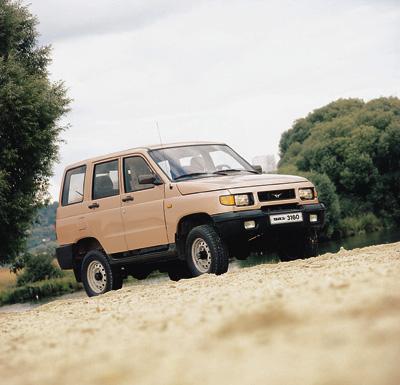

| Pictures | 25 KB (color, side view, at

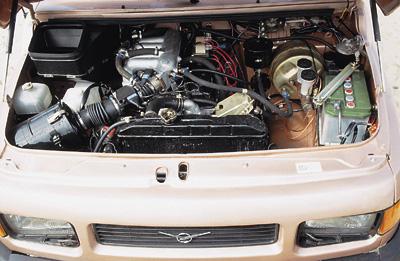

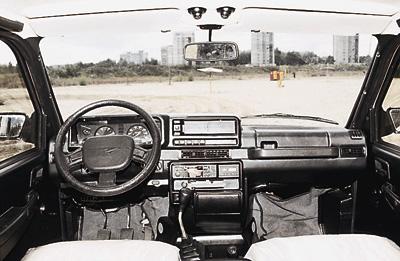

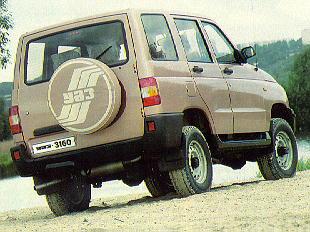

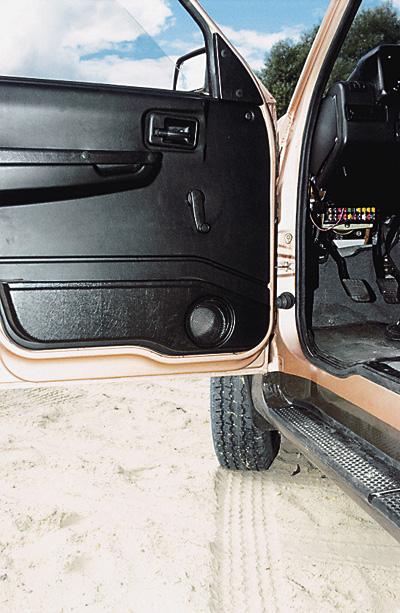

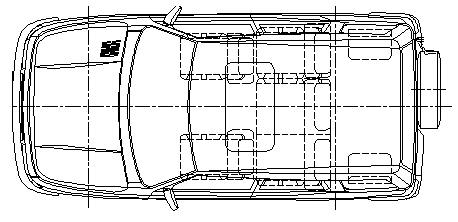

exhibition [4]) 29 KB (color, front view [4]) 8 KB (color, side view [63]) 23 KB (color, front view [4]) 25 KB (color, rear view [4]) 52 KB (color, front view [19/4]) 18 KB (color, side view [4]) 24 KB (color, side view [4]) 25 KB (color, interior view [4]) 25 KB (color, engine view [4]) 48 KB (color, front door view [4]) 91 KB (color, side view [3]) 5 KB (b/w, top view, diagram [63]) 7 KB (color, side view [UAZ-3162] [7/10]) |
* (parenthesis) indicate parameters of UAZ-3162 that are different from those of UAZ-3160.
This model is a successor of
UAZ-31512. Although UAZ-31512 still remains
more popular then this attempt at a more modern-looking jeep.
Standard features include coil spring front suspension, leaf
spring rear suspension, power steering. UAZ-3162 is simply a
longer base modification of UAZ-3160.

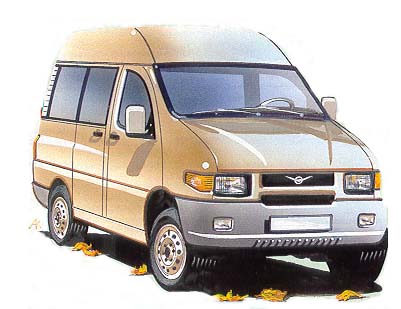

It appears that UAZ is working on a van version of UAZ-3160. It looks something like this (31 KB color, drawing, front view [6])
