UAZ-31512, UAZ-31514, UAZ-3159 "Bars", UAZ-3153

SovAvto Website.



Model  UAZ-31512 (UAZ-31514)*
Seating 7+100kg(220lbs) or 2+600kg(1,320lbs)
Net-weight, kg [lb] 1,590 [3,498] (1,750 [3,850])
Full load weight, kg [lb] 2,350 [5,170] (2,500 [5,500])
Load weight, kg [lb] see "seating"
Total trailer weight, kg [lb] -
Length, mm [in.] 4025 [158]
Width, mm [in.] 1785 [70]
Height, mm [in.] 1990 [78] (2020 [80])
Base, mm [in.] 2380 [94]
Minimal clearance, mm [in.] 220 [8.7]
Minimal radius of turn, m [yards] -
Maximum speed, km/h [mi/h] 110 [68]
Maximum horsepower, hp [kW] 92 [69] @ 4,000 rpm
Maximum torque, N·m [lb·ft] 17.5 [114] @ 2,200-2,500 rpm
Engine displacement, liters [cc] 2.45 [2,446]
Compression ratio 7.1:1
Gear ratios I-4.124/II-2.641/III-1.580/IV-1.000/R-5.224
Main gear ratio 4.625
Transfer case ratio 1.94 and 1.00
Mileage, liters/100km [mi/gal] 16.2 [14.5]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] 39 X 2 [10.3 X 2] A-76
Years of production 1985-present
Type of engine UMZ-4179, 4-tact, 4I cyl., carb., ohv
Bore/Stroke, mm [in.] 92 [3.62]/ 92 [3.62]
Wheel formula 4 X 4
Pictures  see below

* (parenthesis) indicate technical parameters of UAZ-31514 that are different from those of UAZ-31512.

This model is a successor of UAZ-469. It still has the same look as the first 1972 version, but much of inner components have changed. These jeeps [with 2380 mm [94 in] wheelbase] have a maximum ascent angle of 30 degrees and 0.7 m [0.8 yards] river fording depth. All models on this page, except UAZ-3159 "Bars" have 1445 mm [57 in] track. Below is a list of different modifications of UAZ-3151 family and parameters that make then disticnct from the parameters given in the above table.

Model Years of Prod Dimensions, mm [in] Engine Other differences Photos

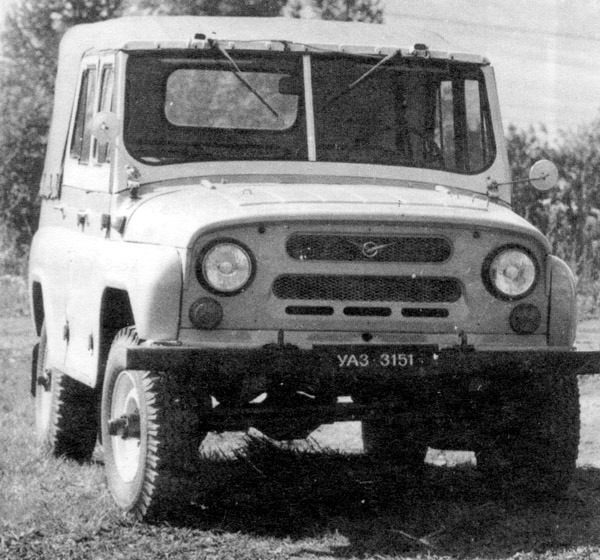

UAZ-3151-01 1985-1989 2050 [81] height, 300 [11.8] clearance UMZ-414 engine, compession 6.7:1, 81 hp [60 kW] @ 4,000 rpm low comfort w/ tarpauline tent 107 KB (b/w, front view [3])
UAZ-3151 1989-present 2050 [81] height, 300 [11.8] clearance UMZ-4179 engine, compession 7.1:1, 92 hp [69 kW] @ 4,000 rpm low comfort w/ tarpauline tent same as UAZ-31512
UAZ-31512-01 1985-1989 1990 [78] height, 220 [8.7] clearance UMZ-414 engine, compession 6.7:1, 81 hp [60 kW] @ 4,000 rpm low comfort w/ tarpauline tent same as UAZ-31512

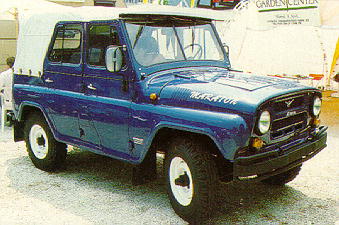

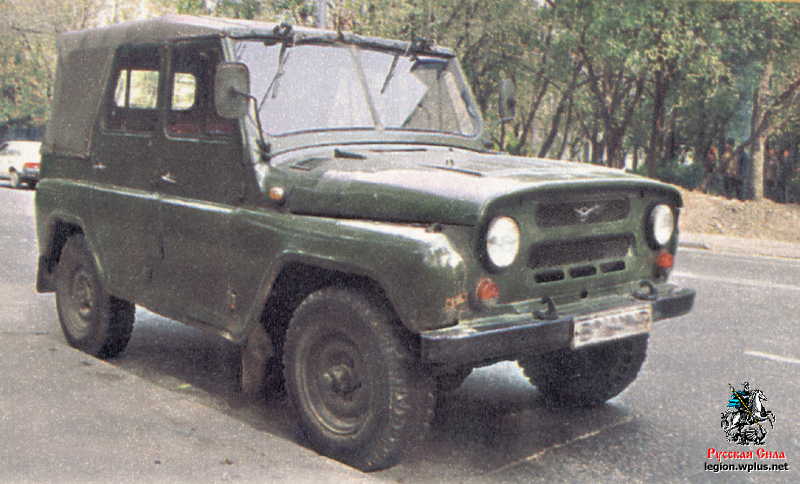

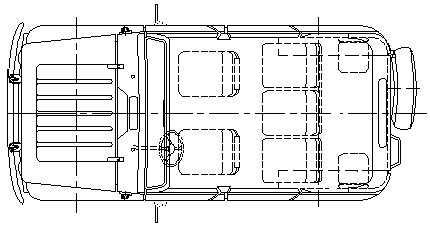

UAZ-31512 1989-present 1990 [78] height, 220 [8.7] clearance UMZ-4178 engine, compession 7.1:1, 92 hp [69 kW] @ 4,000 rpm low comfort w/ tarpauline tent 26 KB (color, side view [7/10], 20 KB (color, side view [63]), 5 KB (b/w, diagram [63]), 46 KB (color, side view [19/4]), 78 KB (color, side view [43])
UAZ of America (31512) ? 1990 [78] height, 220 [8.7] clearance UMZ-4178 engine, compession 7.1:1, 92 hp [69 kW] @ 4,000 rpm increased comfort w/ tarpauline tent, complies with american standards. 25 KB (color, front view [62]), 74 KB (color, front view [62])

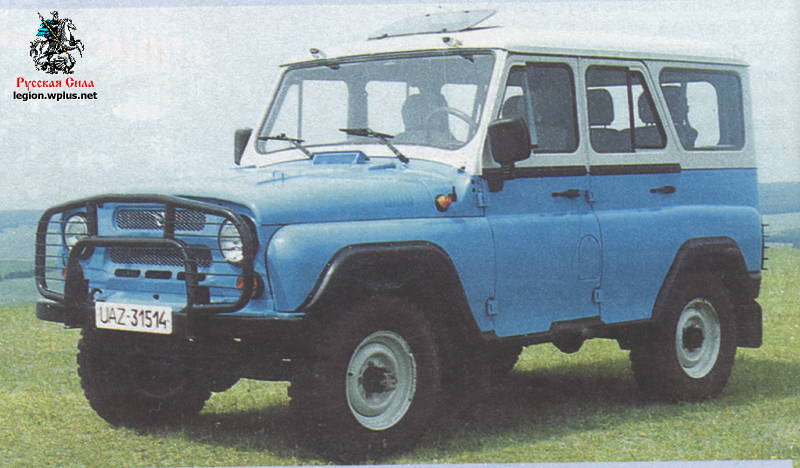

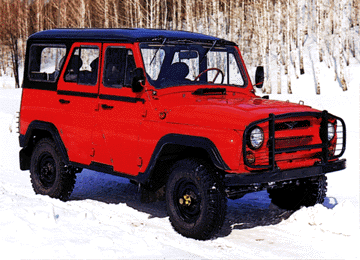

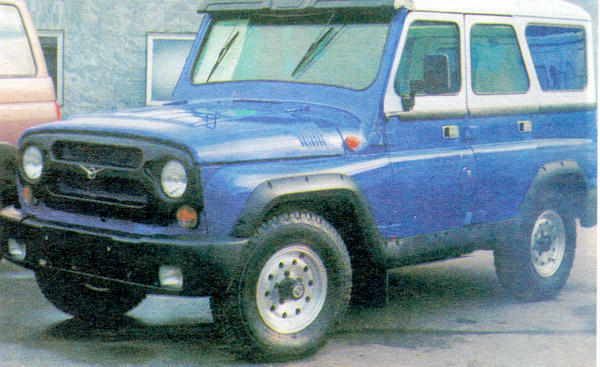

UAZ-31514 ? 2020 [80] height, 220 [8.7] clearance UMZ-4178 engine, compession 7.1:1, 92 hp [69 kW] @ 4,000 rpm comfortable, w/ metal roof 55 KB (color, side view [63]), 9 KB (color, front view [7/10]), 55 KB (color, side view [19/4]), 98 KB (color, side view [3])

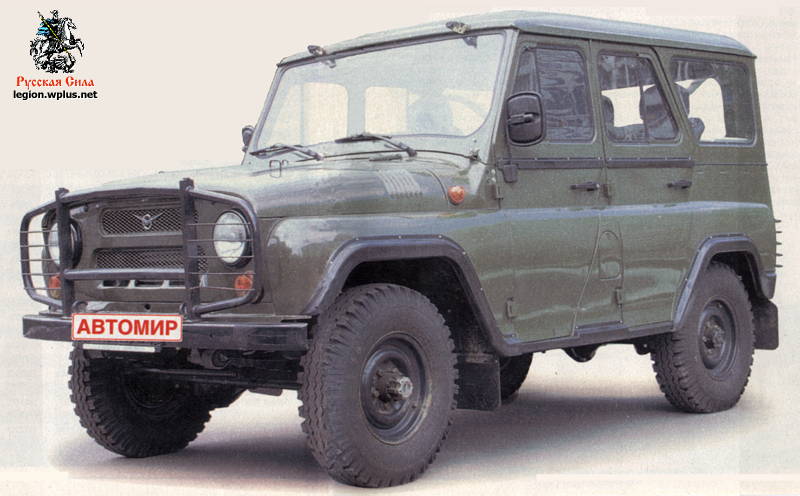

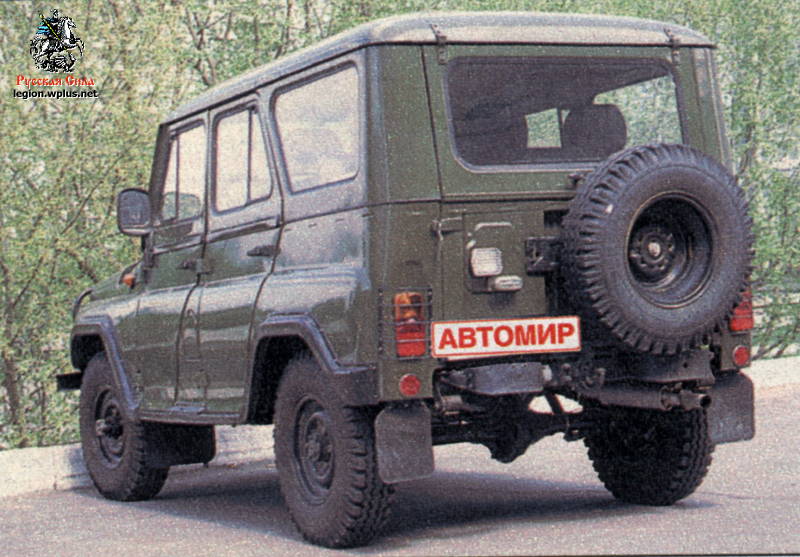

UAZ-31519 ? 2100 [83] height, 300 [11.8] clearance UMZ-? engine, compression 8.2:1, 98 hp [73 kW] @ 4,000 rpm, 2.886 L, bore/stroke=100[3.94]/ 92/[3.62], 15.5 L/100 km [15 m/gal] 120 km/h [75 mph] max speed, accels 0-100 km/h [0-62 mph] in 34.2 seconds, comfortable, w/ metal roof 52 KB (color, side view [19/64]), 83 KB (color, rear view [19/64]), 10 KB (color, side view [7/10])

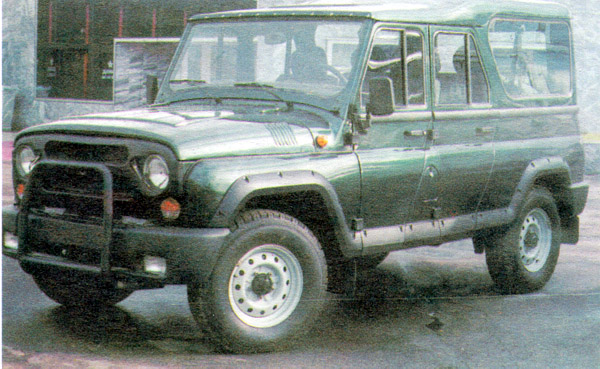

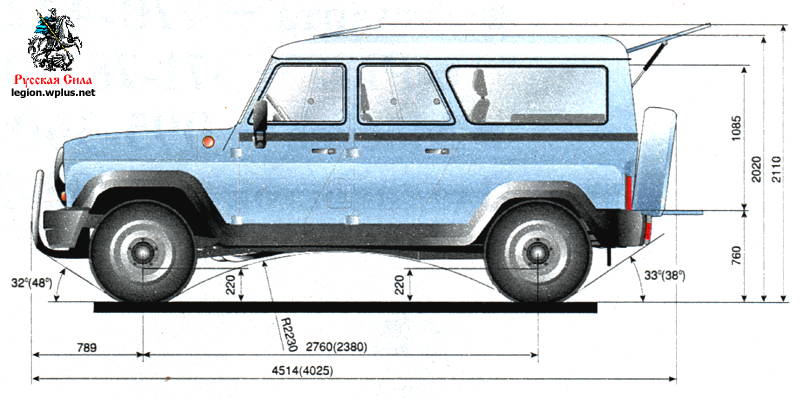

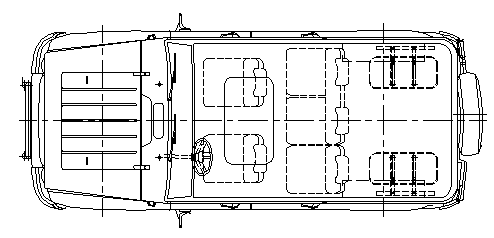

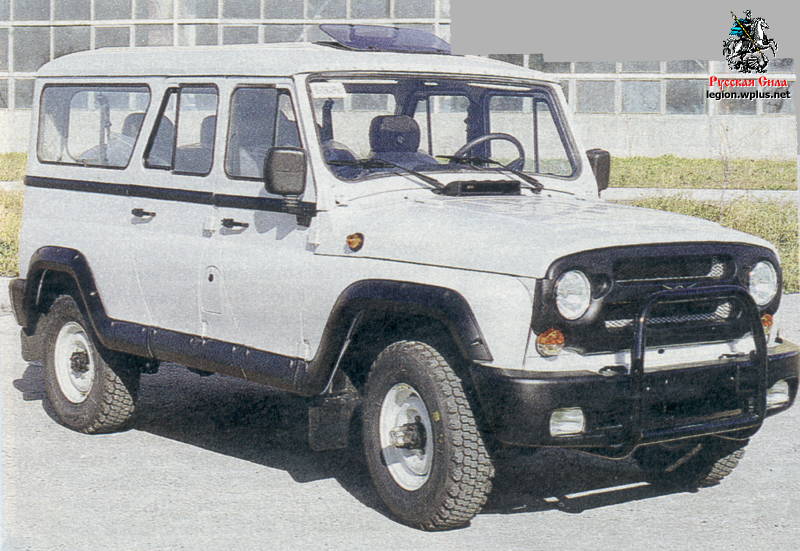

UAZ-3153 ? 4405 [173] length, 2020 [80] height, 2760 [109] base, 220 [8.7] clearance UMZ-? engine, compression 8.2:1, 98 hp [73 kW] @ 4,000 rpm, 2.886 L, bore/stroke=100[3.94]/ 92/[3.62] 120 km/h [75 mph] max speed, 5-9 persons, slightly heavier, comfortable version, hard-top 78 KB (color, side view [19/4]), 48 KB (color, side view, diagram [19/4]), 26 KB (color, side view [63]), 5 KB (b/w, top view, diagram [63]), 101 KB (color, side view [3])
UAZ-3159 "Bars" ? 4405 [173] length, ? [?] height, 2760 [109] base, 300 [11.8] clearance, 1600 [63] track ZMZ-409 engine, 2.7L, fuel injection, 16-valve, 4 cyl. standard power steering, wider track, luxury version, hard-top 9 KB (color, front view [63])

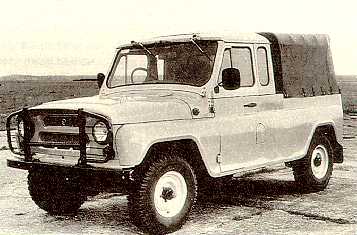

UAZ-2315 ? ? probably same as UAZ-3151-01 ? 18 KB (b/w, front view [7/10])
