Model  Ya-5
Seating 3
Net-weight, kg [lb] 4,750 [10,450]
Full load weight, kg [lb] 9,975 [21,945]
Load weight, kg [lb] 5,000 [11,000]
Total trailer weight, kg [lb] -
Length, mm [in.] -
Width, mm [in.] -
Height, mm [in.] -
Base, mm [in.] -
Minimal clearance, mm [in.] -
Minimal radius of turn, m [yards] -
Maximum speed, km/h [mi/h] -
Maximum horsepower, hp [kW] 93 [69]
Maximum torque, Nm [lbft] 38 [247]
Engine displacement, liters [cc] 7.02 [7,020]
Compression ratio 4.6:1
Gear ratios -
Main gear ratio -
Mileage, liters/100km [mi/gal] -
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] -
Years of production 1929-1932
Type of engine 6 cyl., carb., 4-tact, sv
Bore/Stroke, mm [in.] 111 [4.37]/ 120.6 [4.75]]
Wheel formula 4 X 2

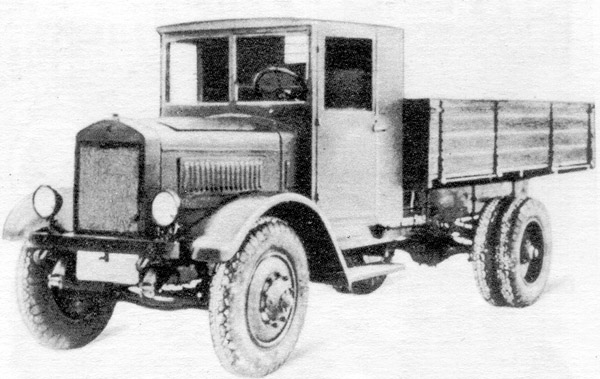

Pictures  70 KB (color, front view, drawing [106])

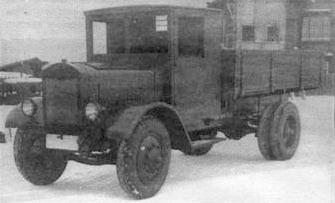

69 KB (b/w, front view [3])

11 KB (b/w, front view [7])

51 KB (b/w, front view [1])

This truck came to replace Ya-4. There is also a Ya-6 bus version of this truck.
