KamAZ-4925

SovAvto Website.



Info on KamAZ-4326 * Info on KamAZ-4350 * Info on KamAZ-5325 * Info on KamAZ-5425



Model  KamAZ-4925*
Seating 3
Net-weight, kg -
Full load weight, kg 15410
Load weight, kg 7000
Total trailer weight, kg -
Length, mm 8300
Width, mm 2500
Height, mm 3560
Base, mm -
Minimal clearance, mm -
Minimal radius of turn, m -
Maximum speed, km/h -
Maximum horsepower, hp 220 (@ 2,600 rpm)
Engine capacity, liters 10.857
Gear ratios -
Main gear ratio -
Mileage, liters/100km -
Breaking distance, m -
Fuel tank capacity, liters -
Years of production 1980's-present
Type of engine KamAZ-7403 Turbo Diesel, 4 cycle, V8 direct injection
Wheel formula 4 X 2
Pictures 9 KB (color, side view [KamAZ-4925 MS-70] [87])

9 KB (color, side view [KamAZ-4925 KO-437] [87])

8 KB (b/w, front view [KamAZ-4925 KO-806] [87])

16 KB (color, front view, cabin with 2 extra sleeping benches on the upper level [87])

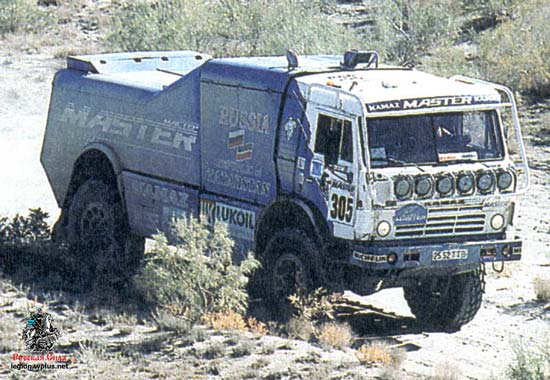

63 KB (color, racing truck [KamAZ-49252] that won Master Rally '97 [10])

52 KB (color, front view, racing truck [KamAZ-49252 (4 X 4)] from Master Rally '96 [19/4])

14 KB (color, side view [KamAZ-????] racing [101])

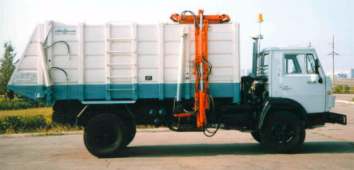

KamAZ-4925 MS-70 is a garbage truck, very similar to KamAZ-53213 MS-91. The volume of its body is 18.5 m3.

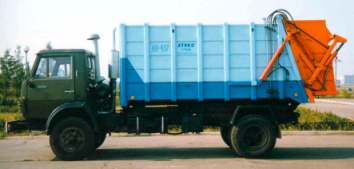

KamAZ-4925 KO-437 is a garbage truck, very similar to KamAZ-53213 MS-427. The maximum mass of the load is 5700 kg (12,000 lbs) and the volume of the body is 17 m3.

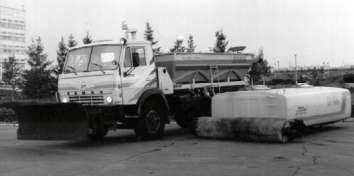

KamAZ-4925 KO-806 has a cabin that is suitable for year-round use. This vehicle is used primarily for cleaning streets during winter time, or watering the grass during the summer months. There also exists a 6 X 4 model of this truck: KamAZ-53213 KO-806.

* all of the technical data is based on KamAZ-4925 MS-70 (especially note this if you are interested in dimensions).

There are also some trucks with a newer radiator design:

(13 KB color, front view, refrigerator semi-trailer with a tractor [KamAZ-5440] [12])

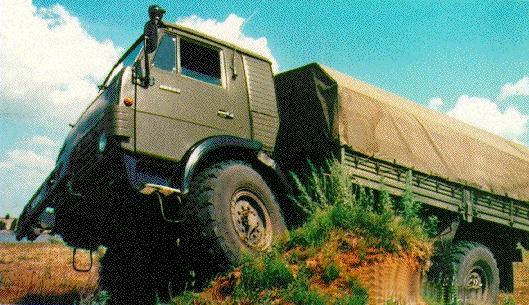

(47 KB color, side view, platform w/ tent [KamAZ-4326] [3])

(47 KB color, side view, platform w/ tent [KamAZ-4326] [129/19])

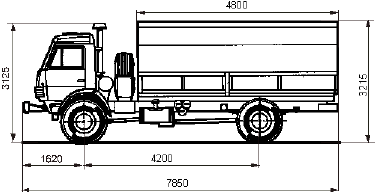

(4 KB b/w, diagram [KamAZ-4326] [128/19])

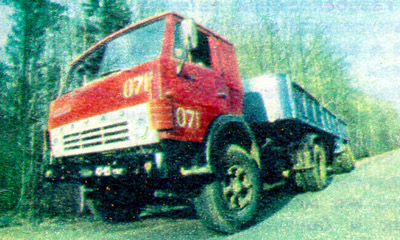

(66 KB color, side view, tractor w/ semi-trailer [KamAZ-5425] [4])

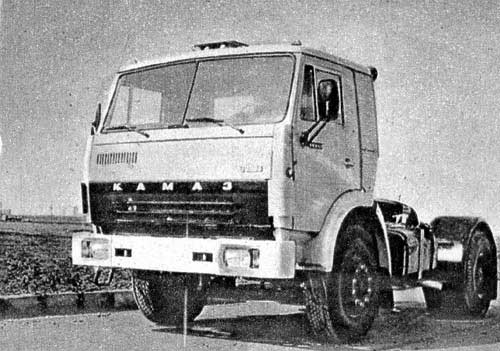

(34 KB b/w, front view, tractor [KamAZ-5425] [4])

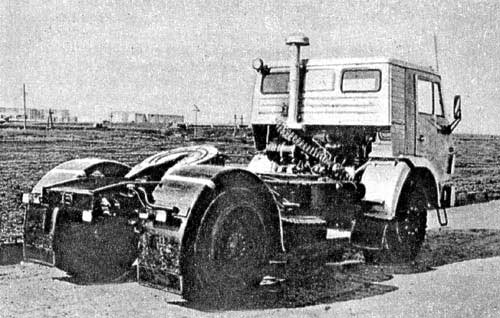

(34 KB b/w, rear view, tractor [KamAZ-5425] [4])

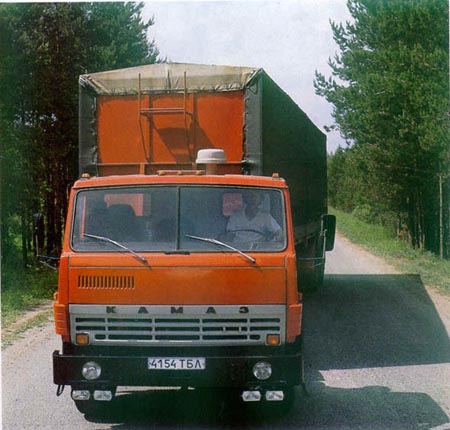

(51 KB color, front view, tractor w/ semi-trailer [KamAZ-5425] [59])

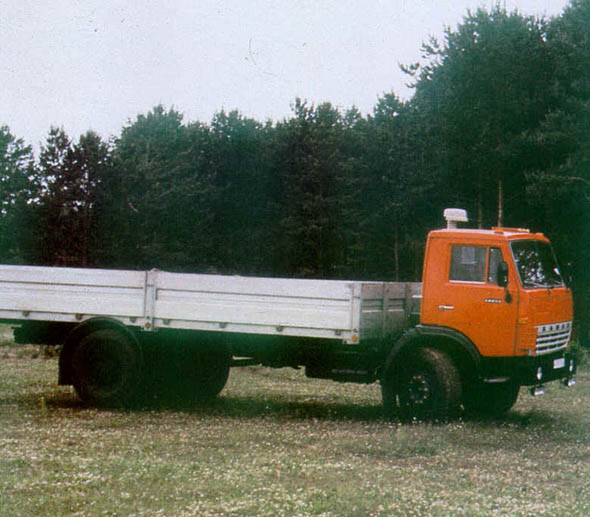

(61 KB color, side view, platform truck [KamAZ-5325] [59])

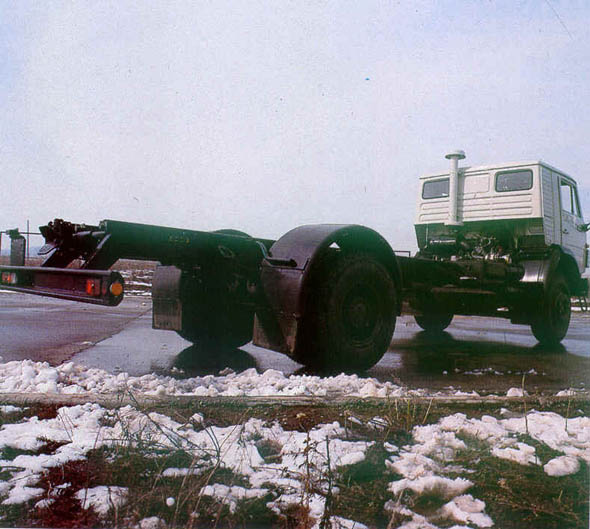

(64 KB color, rear view, chassis [KamAZ-5325] [59])

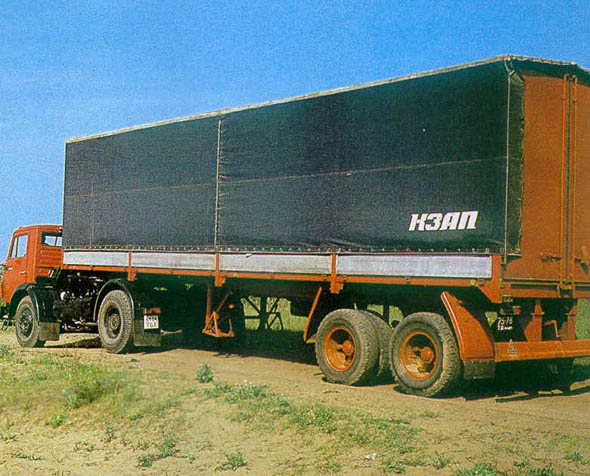

(74 KB color, side view, tractor w/ semi-trailer [KamAZ-5415] [59])

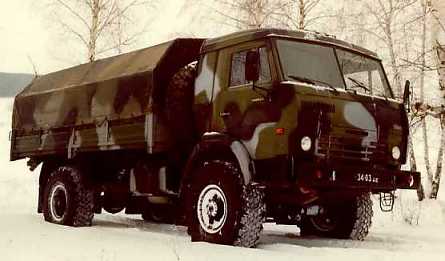

(15 KB color, side view, military truck, 4 X 4 [KamAZ-4350] [101]) This truck has a 1.75m [1.9 yards] fording depth and a maximum 34 degree gradient.

(16 KB color, side view [KamAZ-4350] [115])
