| Model | GAZ-TK | |
| Seating | 2 | |
| Curb weight, kg | TOTAL | 1,500 |
| front axle | - | |
| rear axle | - | |
| Gross weight, kg | TOTAL | - |
| front axle | - | |
| rear axle | - | |
| Payload [carrying capacity] weight, kg | - | |
| Permissible [semi-]trailer weight, kg | - | |
| Length, mm | 4400 | |
| Width, mm | 1700 | |
| Height, mm | 1600 | |
| Wheelbase, mm | 2620 (between front and second axle) [860 between second and rear axle] | |
| Track width, mm | front | - |
| rear | - | |
| Minimal ground clearance, mm | under front axle | - |
| under rear axle | 210 | |
| Minimal radius of turn, m | b/n curbs (outer front wheel) | - |
| b/n walls (extreme exterior dimension | - | |
| Maximum speed, km/h | 63 | |
| Fuel consumption, liters/100km | - | |
| Acceleration time from 0-100 km/h, seconds | - | |
| Transmission | gearbox | 4 speed |
| gearbox ratios | - | |
| main gear ratio | singular, pair of bevel gears w/ spiral teeth | |
| additional gearbox | - | |
| clutch | single-disk, dry | |
| Wheels | number | 6 + 1 |
| tire size | ? 5,5-19 | |
| tire pressure, kg/cm2 | - | |
| Suspension | front | one transverse inverted semi-elliptic leaf spring |
| rear | ? | |
| Steering | gear | worm-and-sector |
| gear ratio | - | |
| Brakes | braking distance, m | - |
| service (foot) | drum type to all wheels w/ mechanical drive | |
| parking (hand) | ? | |
| Filling capacities, liters | fuel tank | - |
| engine cooling system | - | |
| engine lubrication system | - | |
| gearbox housing | - | |
| axle housing | - | |
| steering system cylinder | - | |
| shock absorbers | - | |
| hydraulic brake drive | - | |
| air filter | - | |
| Carburetor | - | |
| Electric equipment | - | |
| Accumulator battery | - | |
| Generator [alternator] | - | |
| Relay-regulator | - | |
| Starter motor | - | |
| Timer-distributor | - | |
| Spark plugs | - | |
| Engine | engine type | carb., 4-stroke, 4 cyl., sv |
| cylinder work order | - | |
| maximum horsepower, hp | 40 | |
| maximum torque, N·m | 15.2 | |
| displacement, liters | 3.28 | |
| compression ratio | 4.2:1 | |
| bore/stroke, mm | 98.43 / 107.95 | |
| Years of production | 1933 | |
| Total units made | ? | |
| Wheel arrangement | 6 X 4 with caterpillar tracks "Overall" on rear two-axle bogie | |

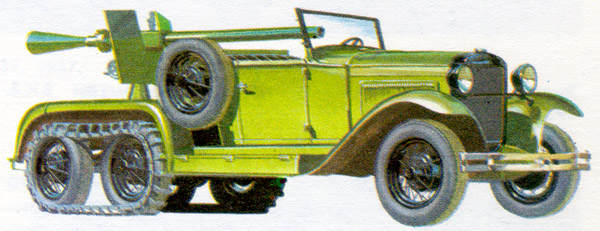

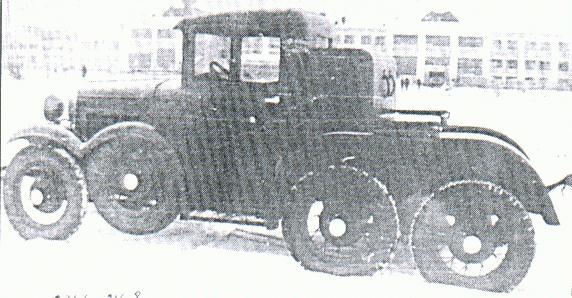

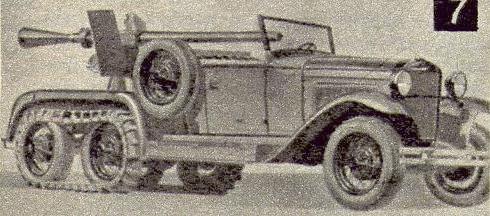

| Pictures | 33 KB (b/w, side view [7]) 43 KB (b/w, variation without a gun [7]) 72 KB (color, side view, drawing [3]) |
|
The objective of creating this self-powered chassis for the Army was to use
as many serially produced parts from
GAZ-A
as possible. Mainly, it was planned to keep the GAZ-A drive axles and the bevel
gears of the main gear. The decision not to use worm gear was simply
technological since GAZ engineers only mastered worm gear by the end of 1934
with the production of GAZ-AAA. Construction of this vehicle begun in 1933 and
in 1934 the "October Horn" plant already produced a few hundred of
these chassis for use with 76 mm caliber "dynamic reaction" gun of
engineer Kurchevskiy. A lengthened frame of GAZ-A was taken and an additional
drive axle was added at the rear; but for getting enough torque from the 40 h.p.
engine the bevel gears of GAZ-A transmission with 4.44 ratio were not
sufficient. So, bevel gears from GAZ-AA had to be used, but they tuned out to be
too bulky for the compact gearbox housing of GAZ-A and so they had to be made
thinner. During the process of thermal treatment these thin gears would become
distorted and when the main gear was running a "howling" sound would
result. The shortness of time allow for the design of this vehicle had its toll
because whenever the rear bogie would encounter uneven ground with obstacles the
rear brakes would jam. The car was agreed to be unsuccessful and its manufacture
stopped.
