Model GAZ-93A
Seating 2
Curb weight, kg TOTAL 3,000
front axle 1,360
rear axle 1,640
Gross weight, kg TOTAL 5,400
front axle 1,590
rear axle 3,810
Payload [carrying capacity] weight, kg 2,250 (1,750 if unpaved) (body volume 1.65 m3)
Permissible [semi-]trailer weight, kg -
Length, mm 5240
Width, mm 2090
Height, mm 2130
Wheelbase, mm 3300
Track width, mm front 1585
rear 1650
Minimal ground clearance, mm under front axle 305
under rear axle 245
Minimal radius of turn, m b/n curbs (outer front wheel) 7.6
b/n walls (extreme exterior dimension 8.1
Maximum speed, km/h 70
Fuel consumption, liters/100km 20 @ 40 km/h
Acceleration time from 0-100 km/h, seconds -
Transmission gearbox 4 speed
gearbox ratios I-6.40/II-3.09/III-1.69/IV-1.00/R-7.82
main gear ratio 6.67 (40 and 6 teeth)
transfer case ratio -
clutch single-disk, dry
Wheels number 6 + 1
tire size 7,50-20
tire pressure, kg/cm2 3.0 front / 3.5 rear
Suspension front two longitudinal semi-elliptic springs; hydraulic double-acting shock absorbers
rear two longitudinal semi-elliptic springs, with additional springs
Steering gear cone worm and 2-ridge roller
gear ratio 20.5
Brakes braking distance, m -
service (foot) drum brakes to all wheels, with hydraulic drive
parking (hand) drum brake to transmission, with mechanical drive
Filling capacities, liters fuel tank 90 (A-66 or A-72 gasoline)
engine cooling system 14.5 (water or antifreeze)
engine lubrication system 7.0 (industrial oil 50 (SU) or oil ASp-5, AKp-5)
gearbox housing  3.0 (transmission oil)
axle housing 2.6 (transmission oil)
steering system cylinder 0.5 (transmission oil)
shock absorbers each front 0.15 (spindle oil AU)
hydraulic brake drive 0.5 (brake fluid)
air filter 0.35 (engine oil)
Carburetor K22-G
Electric equipment 12 volts
Accumulator battery 3ST70; 2 count
Generator [alternator] G21; 18 amps; 225 watts
Relay-regulator RR12-B or RR24-G
Starter motor ST8; 1.7 h.p.
Timer-distributor R20
Spark plugs M12U
Engine engine type GAZ-51, carb., 6 cylinder, 4-stroke, inline, sv
cylinder work order 1-5-3-6-2-4
maximum horsepower, hp 70 @ 2800 rpm
maximum torque, Nm 20.5 @ 1500-1700 rpm
displacement, liters 3.48
compression ratio 6.2:1
bore/stroke, mm 82.0 / 110.0
Years of production 1958-1975
Total units made ?
Wheel arrangement 4 X 2

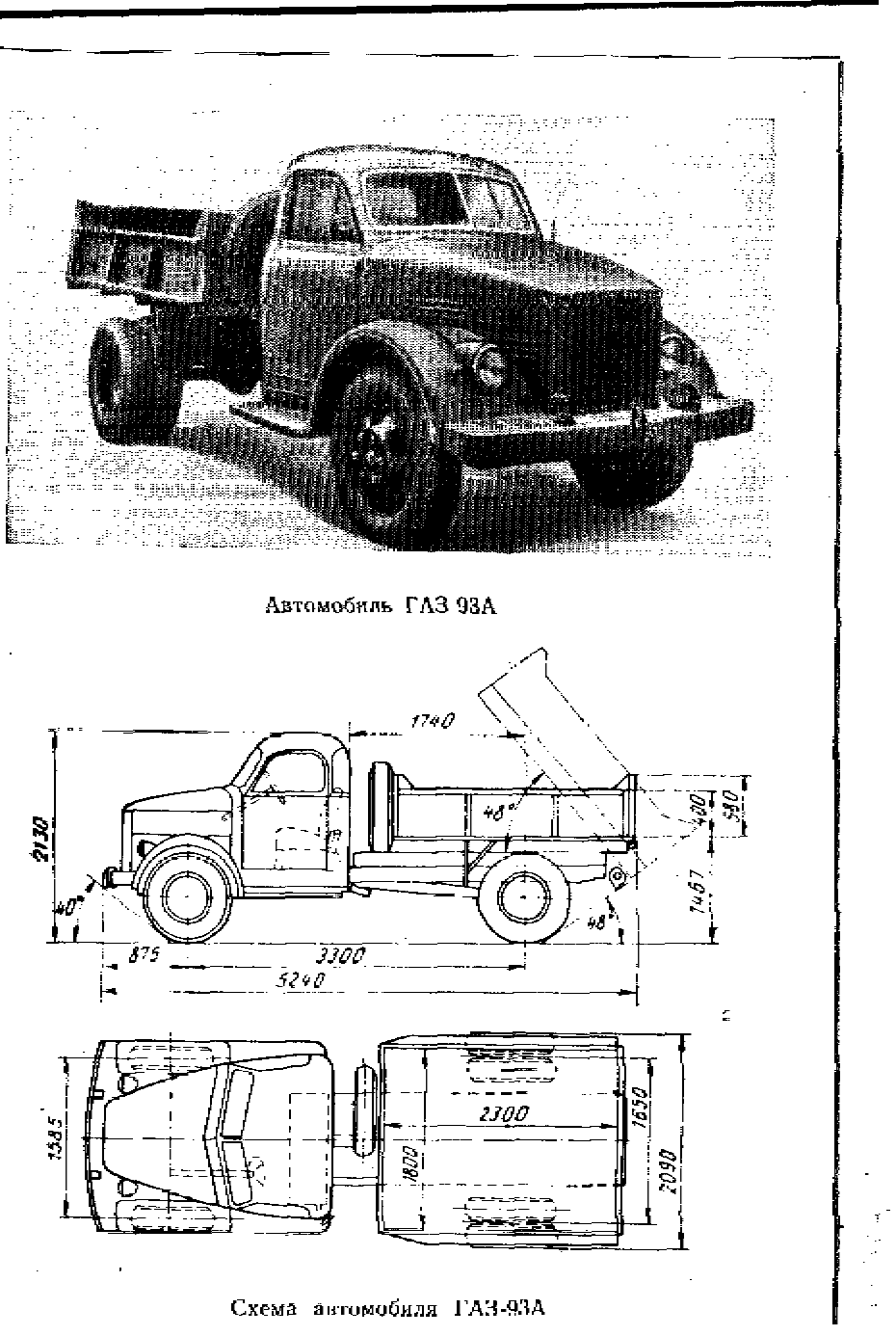

Pictures 20 KB (color, side view, drawing [106])

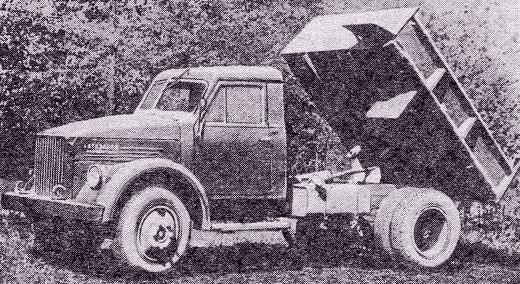

47 KB (b/w, front view /w tech. info [1])

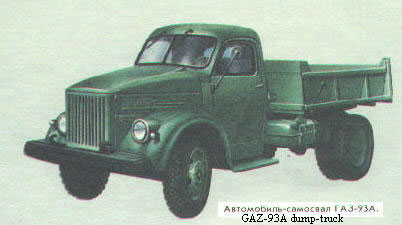

64 KB (b/w, side view [24])

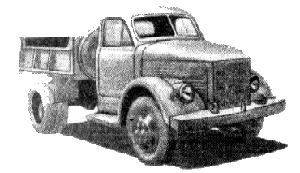

9 KB (b/w, side view [7])

2 KB (b/w, rear view [7])

12 KB (b/w, front view [104])

This tip-lorry is built on a GAZ-51 chassis (shortened by 320 mm). Volume of the reservoir of the hydraulic mechanism of platform operation is 10.5 liters of industrial oil. There was also another modification of this truck-GAZ-93B with a platform that could be covered with a tent. The volume of GAZ-93B body is 3.2 meters cubed. The mechanism of the tip-lorry is hydraulic.
