GAZ-64

SovAvto Website.



Model GAZ-64
Seating 4
Curb weight, kg TOTAL 1,200
front axle -
rear axle -
Gross weight, kg TOTAL -
front axle -
rear axle -
Payload [carrying capacity] weight, kg -
Permissible [semi-]trailer weight, kg -
Length, mm 3350
Width, mm 1685
Height, mm 1700
Wheelbase, mm 2100
Track width, mm front -
rear -
Minimal ground clearance, mm under front axle -
under rear axle 210
Minimal radius of turn, m b/n curbs (outer front wheel) -
b/n walls (extreme exterior dimension -
Maximum speed, km/h 90
Fuel consumption, liters/100km 15
Acceleration time from 0-100 km/h, seconds -
Transmission gearbox 4 speed
gearbox ratios -
main gear ratio -
transfer case ratio -
clutch -
Wheels number -
tire size -
tire pressure, kg/cm2 -
Suspension front -
rear -
Steering gear cone worm and 2-ridge roller ??
gear ratio -
Brakes braking distance, m -
service (foot) -
parking (hand) -
Filling capacities, liters fuel tank 70
engine cooling system -
engine lubrication system -
gearbox housing  -
axle housing -
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor -
Electric equipment -
Accumulator battery -
Generator [alternator] -
Relay-regulator -
Starter motor -
Timer-distributor -
Spark plugs -
Engine engine type carb., 4-tact
cylinder work order -
maximum horsepower, hp 54
maximum torque, N·m -
displacement, liters -
compression ratio -
bore/stroke, mm -
Years of production 1941-1942
Total units made 684
Wheel arrangement 4 X 4

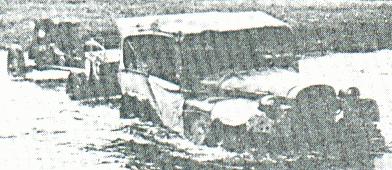

Pictures 22 KB (b/w, side/front view [7/28])

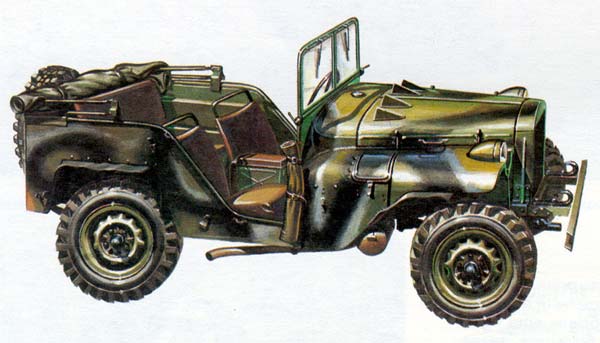

34 KB (color, side view, drawing [3])

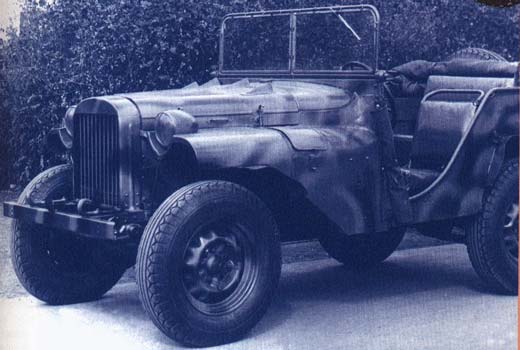

30 KB (b/w, side view [7/28])

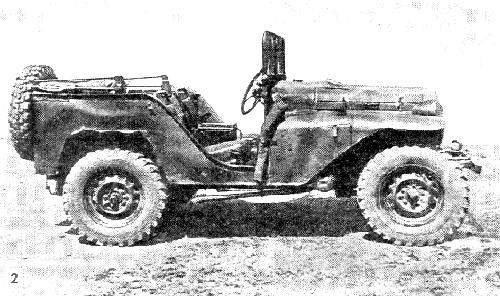

45 KB (b/w, side view [4])

This car is the immediate predecessor of GAZ-67. All of the technical characteristics of this GAZ-64 coincide with those of GAZ-67. The only difference was that it had primitive front fenders and didn't have fenders in the rear at all. GAZ-64 is sometimes referred to as GAZ-64-416.
