| Model | GAZ-55 | |
| Seating | 10 (or 6 wounded) | |
| Curb weight, kg | TOTAL | 2,370 |
| front axle | - | |
| rear axle | - | |
| Gross weight, kg | TOTAL | - |
| front axle | - | |
| rear axle | ||
| Payload [carrying capacity] weight, kg | - | |
| Permissible [semi-]trailer weight, kg | - | |
| Length, mm | 5425 | |
| Width, mm | 2040 | |
| Height, mm | 2340 | |
| Wheelbase, mm | 3340 | |
| Track width, mm | front | - |
| rear | - | |
| Minimal ground clearance, mm | under front axle | - |
| under rear axle | 200 | |
| Minimal radius of turn, m | b/n curbs (outer front wheel) | - |
| b/n walls (extreme exterior dimension | - | |
| Maximum speed, km/h | 70 | |
| Fuel consumption, liters/100km | 20.5 | |
| Acceleration time from 0-100 km/h, seconds | - | |
| Transmission | gearbox | 4 gears |
| gearbox ratios | - | |
| main gear ratio | - | |
| transfer case ratio | - | |
| clutch | - | |
| Wheels | number | - |
| tire size | 6,50-20 | |
| tire pressure, kg/cm2 | - | |
| Suspension | front | - |
| rear | - | |
| Steering | gear | - |
| gear ratio | - | |
| Brakes | braking distance, m | - |
| service (foot) | - | |
| parking (hand) | - | |
| Filling capacities, liters | fuel tank | 40 |
| engine cooling system | - | |
| engine lubrication system | - | |
| gearbox housing | - | |
| axle housing | - | |
| steering system cylinder | - | |
| shock absorbers | - | |
| hydraulic brake drive | - | |
| air filter | - | |
| Carburetor | - | |
| Electric equipment | - | |
| Accumulator battery | - | |
| Generator [alternator] | - | |
| Relay-regulator | - | |
| Starter motor | - | |
| Timer-distributor | - | |
| Spark plugs | - | |
| Engine | engine type | 4 cylinder, carb., 4-stroke, sv |
| cylinder work order | - | |
| maximum horsepower, hp | 50 @ 2,800 rpm | |
| maximum torque, N·m | 17 | |
| displacement, liters | 3.285 | |
| compression ratio | 4.6:1 | |
| bore/stroke, mm | 98.43 / 107.95 | |
| Years of production | 1938-1945 | |
| Overall units made | 9130 | |
| Wheel arrangement | 4 X 2 | |

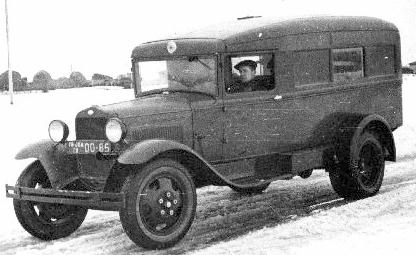

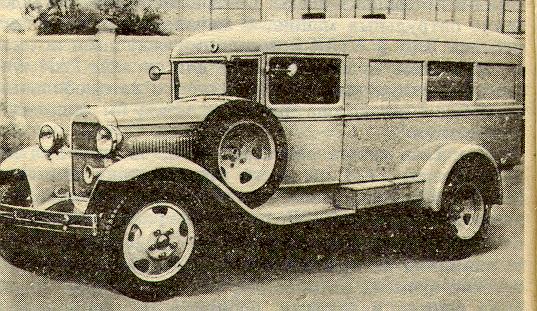

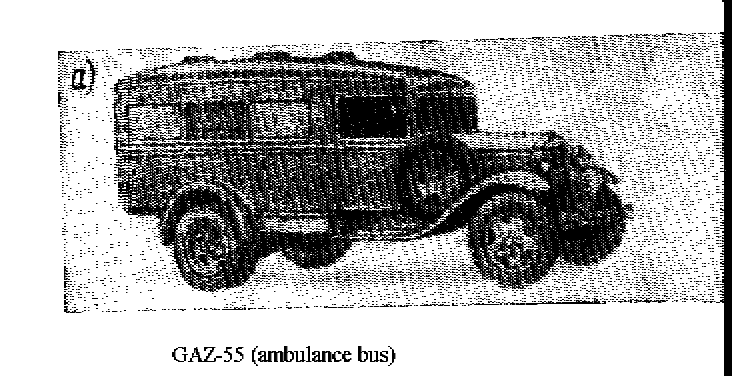

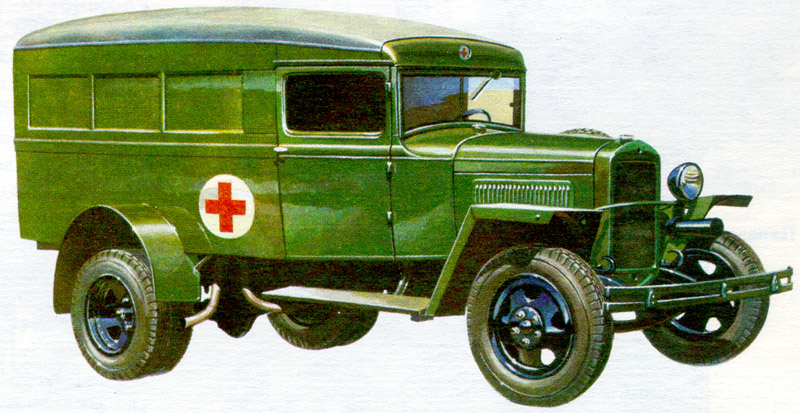

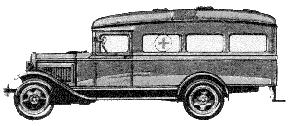

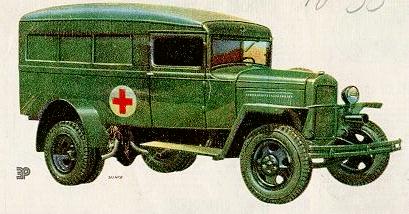

| Pictures | 17 KB (b/w, side view [1]) 25 KB (b/w, front view, pre-1942 [2]) 25 KB (color, side view, ambulance, drawing [4]) 42 KB (color, side view, ambulance, drawing [3]) 64 KB (b/w, side view, pre-1942 [24]) 10 KB (b/w, side view, drawing [103]) | |
Just like any other GAZ-AA modification, in 1942 this bus was slightly
simplified. Its spoilers were simplified and only one headlight left. This bus, made on a
GAZ-AA
chassis, was primarily used as an ambulance in the Great Patriotic War (known to
westerners as World War II).
