GAZ-44

SovAvto Website.



Model  GAZ-44
Seating 2
Curb weight, kg TOTAL 2,230
front axle -
rear axle -
Gross weight, kg TOTAL -
front axle -
rear axle -
Payload [carrying capacity] weight, kg 1,200
Permissible [semi-]trailer weight, kg -
Length, mm -
Width, mm -
Height, mm -
Wheelbase, mm -
Track width, mm front -
rear -
Minimal ground clearance, mm under front axle -
under rear axle -
Minimal radius of turn, m b/n curbs (outer front wheel) -
b/n walls (extreme exterior dimension -
Maximum speed, km/h 60
Fuel consumption, liters/100km -
Acceleration time from 0-100 km/h, seconds -
Transmission gearbox 4 speed
gearbox ratios -
main gear ratio singular, pair of bevel gears w/ spiral teeth
transfer case ratio -
clutch single-disk, dry
Wheels number -
tire size 6,5-20
tire pressure, kg/cm2 -
Suspension front on one transverse, overturned semi-elliptical leaf spring
rear on two longitudinal leaf springs
Steering gear cone worm and 2-ridge roller
gear ratio -
Brakes braking distance, m -
service (foot) drum brakes w/ mechanical drive to all wheels
parking (hand) belt brake w/ mechanical drive to rear wheels
Filling capacities, liters fuel tank -
engine cooling system -
engine lubrication system -
gearbox housing  -
axle housing -
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor -
Electric equipment -
Accumulator battery -
Generator [alternator] -
Relay-regulator -
Starter motor -
Timer-distributor -
Spark plugs -
Engine engine type 4 cyl., carb., sv, 4-stroke
cylinder work order -
maximum horsepower, hp 30
maximum torque, Nm -
displacement, liters 3.28
compression ratio -
bore/stroke, mm -
Years of production 1939-1942
Overall units made ?
Wheel arrangement 4 X 2

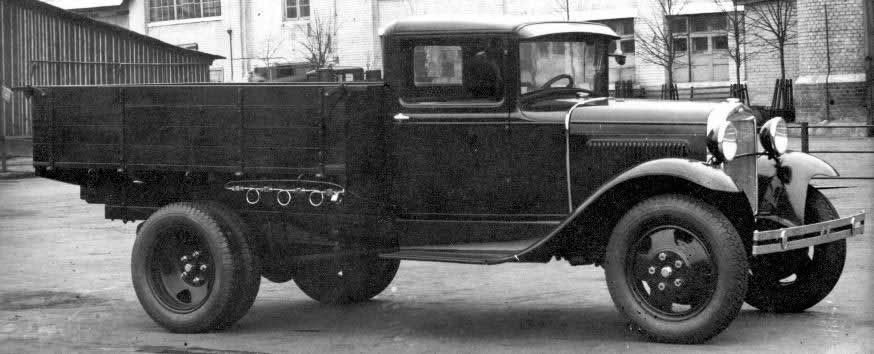

Pictures 44 KB (b/w, side view [2])

This truck could use alternative fuels, either gasoline or liquefied gas. It was based on GAZ-AA. These trucks could travel a distance of 110-140 km until they needed more gas.
