GAZ-3302 "Gazel"

SovAvto Website.



Click here or scroll down to see an interesting list of detailed information about this newest generation of GAZes.

Model  GAZ-3302 "Gazel" (GAZ-33027 "Gazel"*)
Seating 3
Curb weight, kg TOTAL 1,850 (2,100)
front axle -
rear axle -
Gross weight, kg TOTAL 3,500
front axle -
rear axle -
Payload [carrying capacity] weight, kg -
Permissible [semi-]trailer weight, kg -
Length, mm 5470 (5530)
Width, mm 2098
Height, mm 2120 (2200)
Wheelbase, mm 2900
Track width, mm front -
rear -
Minimal ground clearance, mm under front axle -
under rear axle -
Minimal radius of turn, m b/n curbs (outer front wheel) -
b/n walls (extreme exterior dimension -
Maximum speed, km/h 110
Fuel consumption, liters/100km 10.5 (12.5)
Acceleration time from 0-60 km/h, seconds 14 (15)
Transmission gearbox -
gearbox ratios -
main gear ratio -
transfer case ratio -
clutch -
Wheels number -
tire size -
tire pressure, kg/cm2 -
Suspension front -
rear -
Steering gear -
gear ratio -
Brakes braking distance, m -
service (foot) -
parking (hand) -
Filling capacities, liters fuel tank -
engine cooling system -
engine lubrication system -
gearbox housing  -
axle housing -
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor -
Electric equipment -
Accumulator battery -
Generator [alternator] -
Relay-regulator -
Starter motor -
Timer-distributor -
Spark plugs -
Engine engine type ZMZ 4061.10 (4026.10), carb., 4 cyl.
cylinder work order -
maximum horsepower, hp 100
maximum torque, Nm -
displacement, liters 2.3 (2.445)
compression ratio -
bore/stroke, mm -
Years of production 1996-present
Overall units made ?
Wheel arrangement 4 X 2 (4 X 4)

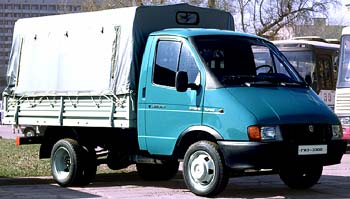

Pictures  20 KB (color, side view, w/ a tent [GAZ-3302] [11])

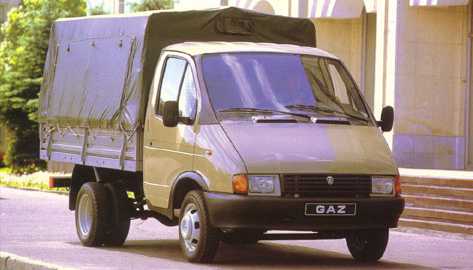

17 KB (color, side view, w/ a tent [GAZ-3302] [11])

10 KB (color, side view, platform w/ tent [GAZ-3302] [12])

17 KB (color, side view, kiosk [GAZ-33022] [18])

18 KB (color, side view, isothermal body [GAZ-33022] [11])

17 KB (color, side view, 3500 mm base [GAZ-330202] [11])

19 KB (color, side view, emergency [GAZ-33022] [18])

20 KB (color, side view, isothermal [GAZ-33022] [18])

15 KB (color, side view, long cabin [GAZ-33023 "Farmer"] [11])

16 KB (color, side view, long cabin [GAZ-33023 "Farmer"] [11])

13 KB (color, front view, long cabin [GAZ-33023 "Farmer"] [12])

16 KB (color, side view, flatbed, can use liquid gas [GAZ-33025] [11])

8 KB (color, front view, long cabin [GAZ-33027] [4])

13 KB (color, side view, flatbed [GAZ-330273] [11])

8 KB (color, side view, long cabin [GAZ-330279] [4])

10 KB (color, side view, flatbed [GAZ-33027] [11])

17 KB (color, front view, flatbed w/ tent [GAZ-33027] [12])

20 KB (color, side view, flatbed w/ tent [GAZ-33027] [11])

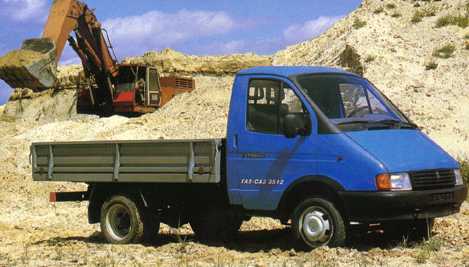

19 KB (color, side view, dump-truck [GAZ-SAZ-3512] [11])

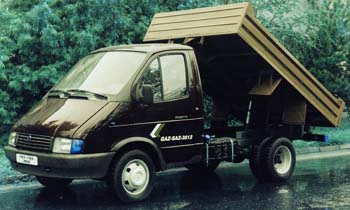

21 KB (color, side view, dump-truck [GAZ-SAZ-3512] [11])

10 KB (color, rear view, ambulance [9])

7 KB (color, front view, ambulance [9])

9 KB (color, front view, ambulance [9])

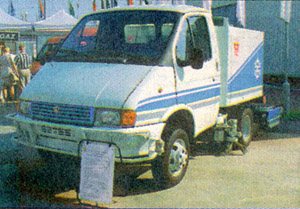

40 KB (color, front view, street cleaner at a show [13])

These mini-trucks have become very popular in Russia recently. There is a possibility of mounting different engines on these car, here I have given the most common engine stats for each model.

* (parenthesis) indicate parameters of GAZ-33027 "Gazel" that are different from GAZ-3302 "Gazel".

Also see that closely related GAZ-2705 "Kombi", GAZ-2217 "Sobol" and GAZ-3221.



Engine options for GAZelle mini-trucks

Model ZMZ 4026.10 ZMZ 4061.10 ZMZ 4063.10 ZMZ 4066.10 Shtair М14 ТС Iveko 8140.27
type gasoline diesel
engine displacement, L 2.445 2.300 2.300 2.300 2.130 2.490
maximum horsepower, hp 100 100 110 150 95 103
maximum torque, kgsm 18.4 18.5 19.5 21 21 24



Output of different modifications of the new GAZes.

Model Description Wheel formula Beginning of production Units made up to June 1, 1997
3302 truck with flat body 4 X 2 20.07.94 (dd/mm/yy) 148510
33027 truck with flat body 4 X 4 29.06.95 163
33023 2 row cabin 4 X 2 18.08.95 2021
330273 2 row cabin 4 X 4 11.03.96 27
2705 transportation van 4 X 2 15.12.96 7473
27057 transportation van 4 X 4 18.12.96 22
3221 8-seat van 4 X 2 16.01.96 3518
32217 8-seat van 4 X 4 04.04.96 23
32213 12-seat van 4 X 2 20.05.96 2785
322173 13-seat van 4 X 4 22.04.97 6
2705kom kombi 4 X 2 18.12.95 17561
27057kom kombi 4 X 4 11.09.96 87
32214 ambulance 4 X 2 02.08.96 234
322132 taxi 4 X 2 12.11.96 674

Overall, up to June 1, 1997, 183197 "GAZels" were made
