GAZ-2217 "Sobol"

SovAvto Website.



Model  GAZ-2217 "Sobol"
Seating 7
Curb weight, kg TOTAL 2,070
front axle -
rear axle -
Gross weight, kg TOTAL 2,800
front axle -
rear axle -
Payload [carrying capacity] weight, kg -
Permissible [semi-]trailer weight, kg -
Length, mm 4836
Width, mm 2098
Height, mm 2200
Wheelbase, mm 2760
Track width, mm front -
rear -
Minimal ground clearance, mm under front axle -
under rear axle 150
Minimal radius of turn, m b/n curbs (outer front wheel) -
b/n walls (extreme exterior dimension -
Maximum speed, km/h 140
Fuel consumption, liters/100km 12.5
Acceleration time from 0-60 km/h, seconds 11
Transmission gearbox
gearbox ratios -
main gear ratio -
transfer case ratio -
clutch -
Wheels number -
tire size -
tire pressure, kg/cm2 -
Suspension front independent, springs
rear -
Steering gear w/ hydro booster
gear ratio -
Brakes braking distance, m -
service (foot) -
parking (hand) -
Filling capacities, liters fuel tank -
engine cooling system -
engine lubrication system -
gearbox housing  -
axle housing -
steering system cylinder -
shock absorbers -
hydraulic brake drive -
air filter -
Carburetor -
Electric equipment -
Accumulator battery -
Generator [alternator] -
Relay-regulator -
Starter motor -
Timer-distributor -
Spark plugs -
Engine engine type ZMZ-4063.10, 4 linear cyl., fuel injector
cylinder work order -
maximum horsepower, hp 112 @ 4,500 rpm
maximum torque, Nm -
displacement, liters 2.3
compression ratio -
bore/stroke, mm -
Years of production 1996-present
Overall units made
Wheel arrangement 4 X 2

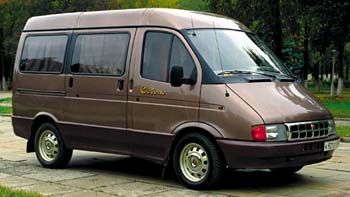

Pictures  16 KB (color, side view, minibus [GAZ-2217] [11])

16 KB (color, side view, minibus [GAZ-22171] [11])

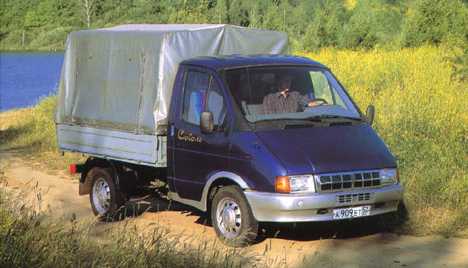

19 KB (color, side view, flatbed [GAZ-2310] [11])

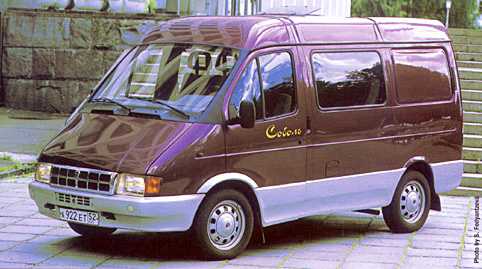

23 KB (color, side view, minibus [GAZ-2752] [11])

These micro-buses have become very popular in Russia recently. There is a possibility of mounting different engines on these car, here I have given the most common engine stats for each model.

Also see that closely related GAZ-3302 "Gazel", GAZ-2705 and GAZ-3221.

Click here to see an interesting list of detailed information about the newest generation of GAZes.



Page created on Sunday, December 27, 1998. Page last updated on Saturday, December 08, 2001 10:23:10 PM EST.
