| Model | BAZ-135 L4 | |
| Seating | 4 | |
| Curb weight, kg [lb] | TOTAL | 10,500 [23,100] |
| front axle | - | |
| rear axle | - | |
| Gross weight, kg [lb] | TOTAL | 19,800 [43,560] |
| front axle | - | |
| rear axle | - | |
| Payload [carrying capacity] weight, kg [lb] | 9,000 [19,800] | |
| Permissible [semi-]trailer weight, kg [lb] | - | |
| Length, mm [in.] | 9270 [30' 5"] | |
| Width, mm [in.] | 2800 [9' 2 1/4"] | |
| Height, mm [in.] | 2530 [8' 3 5/8"] | |
| Wheelbase, mm [in.] | 6300 [20' 8"] | |
| Track width, mm [in.] | front | - |
| rear | - | |
| Minimal ground clearance, mm [in.] | 580 [22 13/16"] | |
| Minimal radius of turn, m [yards] | - | |
| Maximum speed, km/h [mi/h] | 70 [43] | |
| Fuel consumption, liters/100km [mi/gal] | - | |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - | |
| Transmission | gearbox | 5 speed |
| gearbox ratios | - | |
| main gear ratio | - | |
| transfer case ratio | 2 gears | |
| clutch | - | |
| Wheels | number | - |
| tire size | - | |
| tire pressure, kg/cm2 | - | |
| Suspension | front | - |
| rear | - | |
| Steering | gear | - |
| gear ratio | - | |
| Brakes | braking distance, m [yards] | - |
| service (foot) | - | |
| parking (hand) | - | |
| Filling capacities, liters [gal] | fuel tank | - |
| engine cooling system | - | |
| engine lubrication system | - | |
| gearbox housing | - | |
| axle housing | - | |
| steering system cylinder | - | |
| shock absorbers | - | |
| air filter | - | |
| Carburetor | - | |
| Electric equipment | - | |
| Accumulator battery | - | |
| Generator [alternator] | - | |
| Relay-regulator | - | |
| Starter motor | - | |
| Timer-distributor | - | |
| Spark plugs | - | |
| Engine | engine type | 2 * ZIL-375, carb., 4-tact, V8, ohv |
| cylinder work order | 1-5-4-2-6-3-7-8 (in each engine) | |
| maximum horsepower, hp [kW] | 360 [268] (2 * 180) @ 3,100 rpm | |
| maximum torque, N·m [lb·ft] | 95 [617] (2 * 47.5) @ 1,800 rpm | |
| displacement, liters [cc] | 14.0 [14,000] (2 * 7.0) | |
| compression ratio | 6.5:1 | |
| bore/stroke, mm [in.] | 108 [4.25] / 95 [3.74] | |
| Years of production | 1968-? | |
| Wheel arrangement | 8 X 8 | |
| Pictures | 69 KB (color, front view,
drawing [106]) 25 KB (color, front view* [108]) 61 KB (b/w, top view [3]) 84 KB (b/w, front view [BAZ-135 L4] [3]) |
|
Originally named
ZIL-135, this truck was mass produced
only in Bryansk while ZIL made only a few experimental trucks.

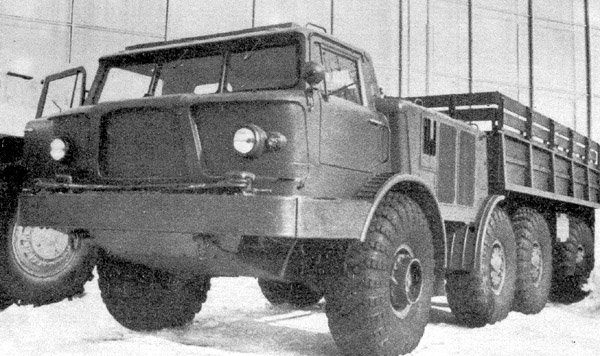

BAZ-135 was a chassis for military use, while BAZ-135 L4 was more
of a civil flatbed truck. Steering wheels were located on 1st and
4th axles.

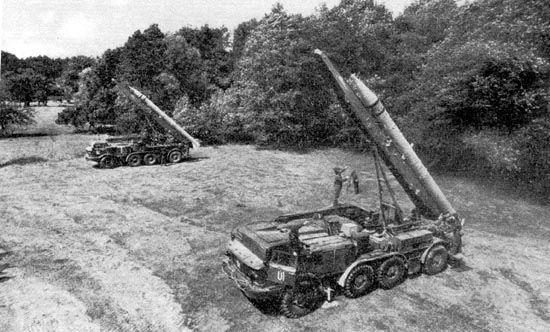

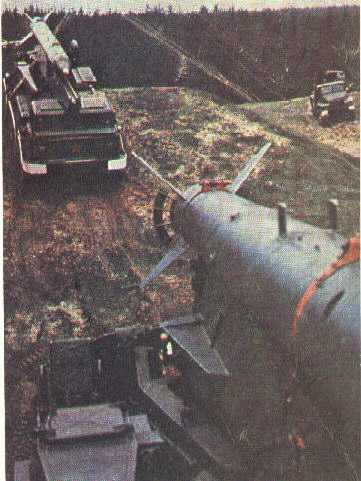

* This BAZ-135 is a Frog-7 [free rocket over ground-refers to
unguided, spinstabilised artillery rockets] launcher. Frog-7 is
about 9.0 m long, 600mm in diameter, 2,500 kg mass and a range of
at least 60 km. (seen in the background is the BM-21 on Ural-375 chassis.)
