| Model | Ural-375D (Ural-375S)* | Ural-377 |
| Seating | 3 | |
| Net-weight, kg | 8,400 (7,500) | 7,275 |
| Full load weight, kg | 13,200 (-) | 15,000 |
| Load weight, kg | 4,500 (-) | 7,500 |
| Total trailer weight, kg | 10,000 (12,000) | - |
| Length, mm | 7350 (6948) | 7600 |
| Width, mm | 2690 (2500) | 2500 |
| Height, mm | 2980 w/ tent (2620) | 2620 |
| Base, mm | 4200 front-center rear (1400 rear 2 axles) | |
| Minimal clearance, mm | 400 | |
| Minimal radius of turn, m | 10.8 | - |
| Maximum speed, km/h | 75 (65) | 75 |
| Maximum horsepower, hp | 180 @ 3,100 rpm | |
| Engine capacity, liters | 7.0 | |
| Compression ratio | 6.5:1 | |
| Gear ratios | 1-6.17/2-3.40/3-1.79/4-1.00/5-0.78/R-6.69 | - |
| Main gear ratio | 8.9 | - |
| Mileage, liters/100km (30-40 km/h) | 48 (63) | 48 |
| Breaking distance, m | - | - |
| Fuel tank capacity, liters | 300 + 90 (A-76) | 300 |
| Years of production | 1961-? (1964-?) | 1965-? |
| Type of engine | ZIL-375, 4-tact., V8, carb., ohv | |
| Wheel formula | 6 X 6 | 6 X 4 |
| Pictures | 76 KB (color, front view,
drawing [106])

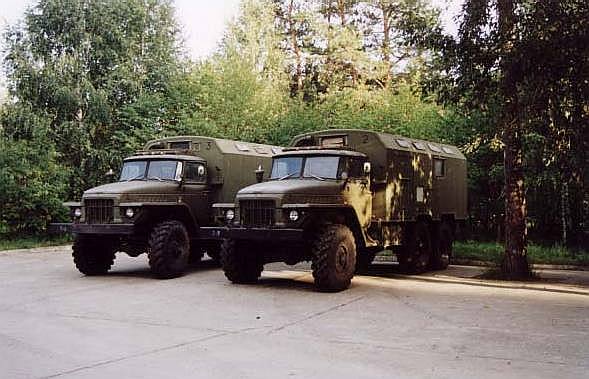

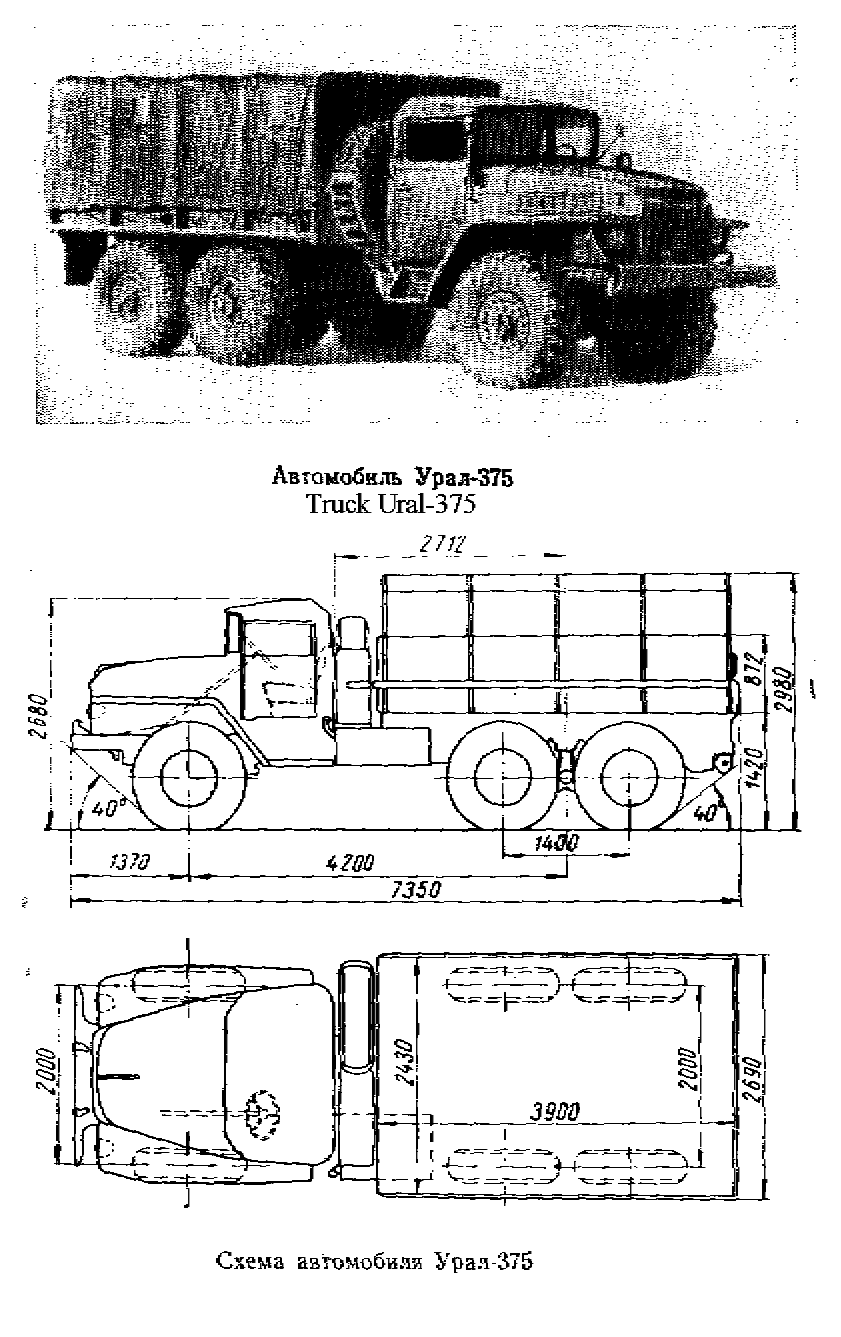

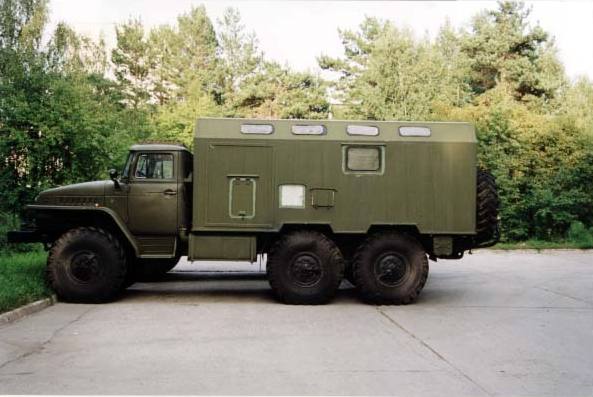

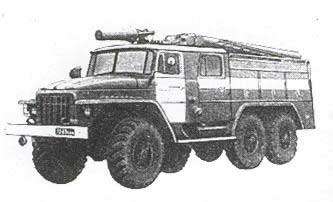

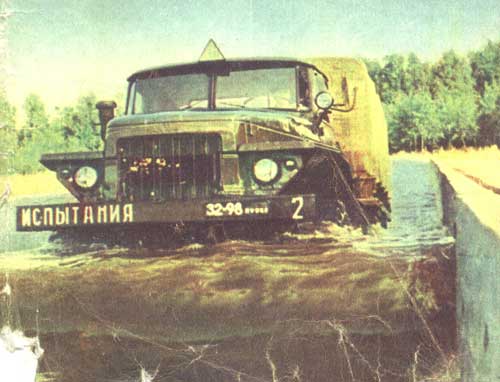

27 KB (color, front view, testing at ford crossing [4]) 45 KB (b/w, side view, diagram w/ tech info [1]) 10 KB (color, front view, Ural-375D [58]) 77 KB (color, front view, Ural-375D [4]) 72 KB (color, front view, Ural-375D [same as above but bigger [19/4]) 31 KB (color, front view, rocket launcher** [108]) 33 KB (color, 3 pictures, rocket launcher** [108]) 20 KB (color, rear view, rocket launcher** [108]) 68 KB (color, front view, drawing, Ural-375S [106]) 42 KB (color, side view, parade on Red Square, Ural-375S*** [108]) 38 KB (color, side view, with "Kung" body, [made 1980] [155]) 50 KB (color, front view, with "Kung" body, [made 1980] [155]) 11 KB (b/w, side view, fire engine AC-40 on Ural-375 chassis [152]) |
76 KB (color, front view, drawing [106]) |
*technical parameters of Ural-375S that are different from those of Ural-375D are given in (parenthesis).
This truck can be considered as one of the "founding fathers" of the huge Ural plant. This became UralAZ's predominant type of vehicle manufactured. Ural-375D is a 6 X 6 flatbed truck, Ural-375S is a 6 X 6 tractor truck and Ural-377 is a 6 X 4 flatbed truck.

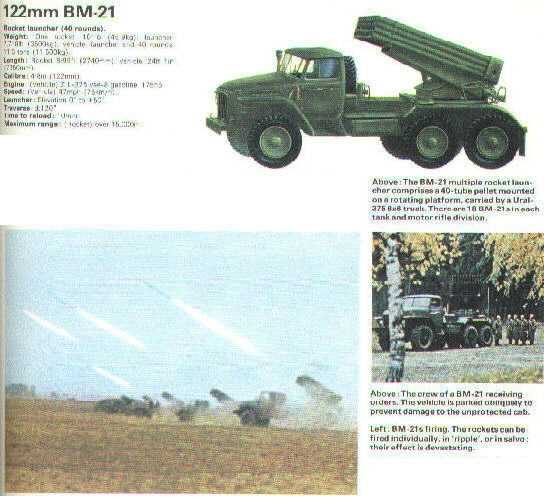

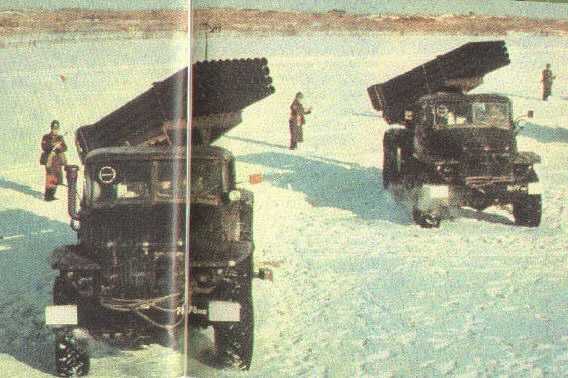

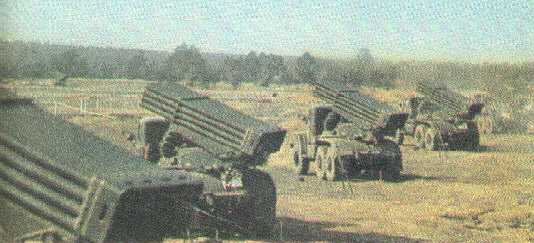

** These Ural rocket launchers, properly indexed as 122mm BM-21, are from the long line of famous "Katiusha" rocket motors. The rocket launcher consists of 40 rounds, each rocket has a mass of 45.9 kg [101 lb] and a length of 2740 mm [9 feet], caliber is 122 mm [4.8"]. The launcher elevation is from 0-50 degrees, traverse is 120 degrees in each direction, reload time is 10 minutes, maximum range is over 15 km.
*** The Ural-375S tractor on the Red Square is towing the SA-5 Gammon missile. This SAM is about 16.5 m long, 1.1 m in diameter, wing span is about 3.96 m. Launch mass is 10,000 kg, approximate range is 250 km [155 mi].
