| Model | ZIS-110 |
| Seating | 7 |
| Net-weight, kg [lb] | 2575 [5665] |
| Full load weight, kg [lb] | 3100 [6820] |
| Load weight, kg [lb] | - |
| Total trailer weight, kg [lb] | - |
| Length, mm [in.] | 6000 [236] |
| Width, mm [in.] | 1960 [77] |
| Height, mm [in.] | 1730 [68] |
| Base, mm [in.] | 3760 [148] |
| Minimal clearance, mm [in.] | 210 [8.3] |
| Minimal radius of turn, m [yards] | 7.4 [8.1] |
| Maximum speed, km/h [mi/h] | 140 [87] |
| Maximum horsepower, hp [kW] | 140 [104] (@ 3,600 rpm) |
| Maximum torque, N·m [lb·ft] | 40 [260] (@ 2,000 rpm) |
| Engine displacement, liters [cc] | 6.0 [6,000] |
| Compression ratio | 6.85:1 |
| Gear ratios | 3 speeds |
| Main gear ratio | - |
| Mileage, liters/100km [mi/gal] | 23 [10.2] |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - |
| Breaking distance, m [yards] | - |
| Fuel tank capacity, liters [gal] | 80 [21] (A-76) |
| Years of production | 1946-1958 |
| Type of engine | ZIS-110, linear 8 cyl., carb., 4-tact, sv |
| Wheel formula | 4 X 2 |

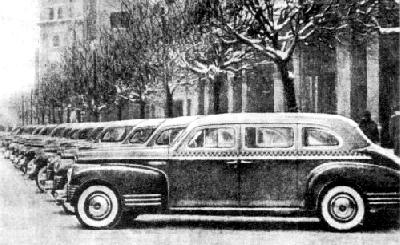

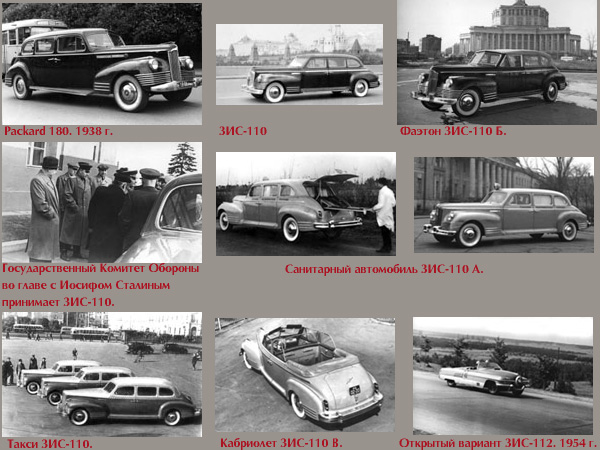

| Pictures | 110 KB (b/w, wonderful
table showing many ZISes [7])

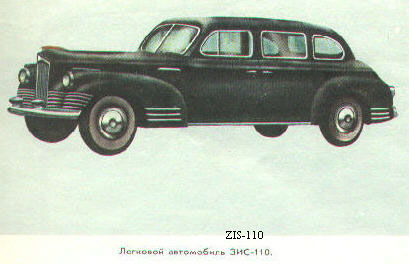

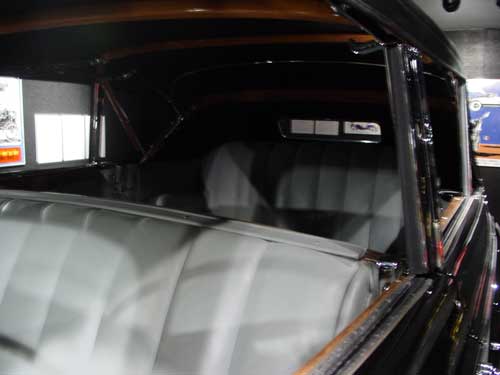

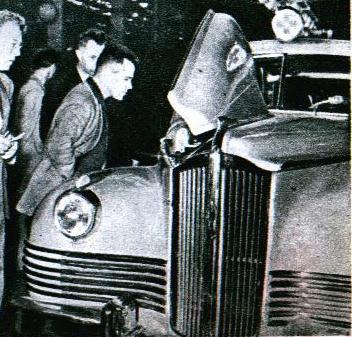

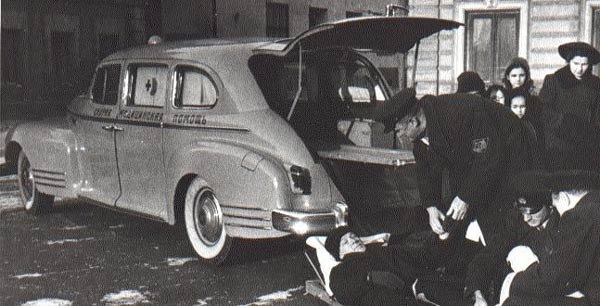

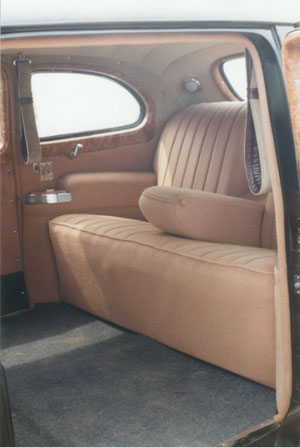

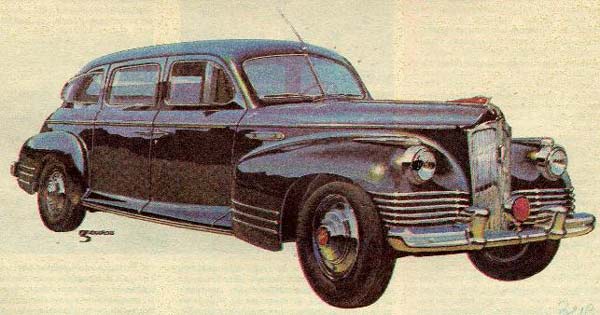

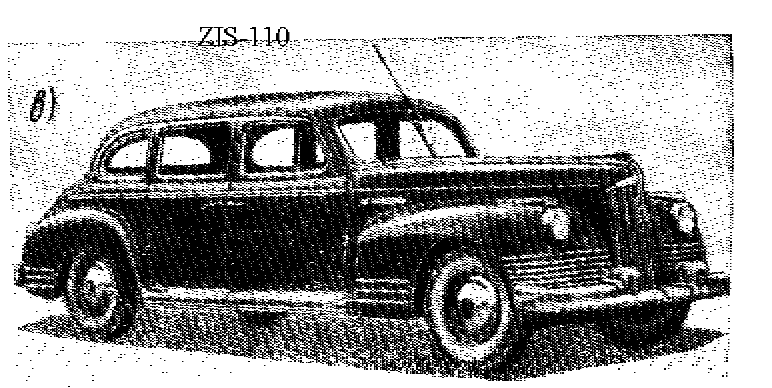

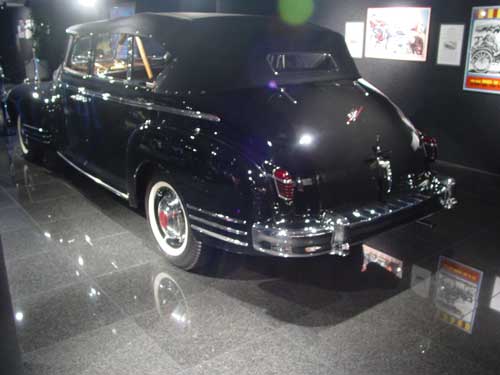

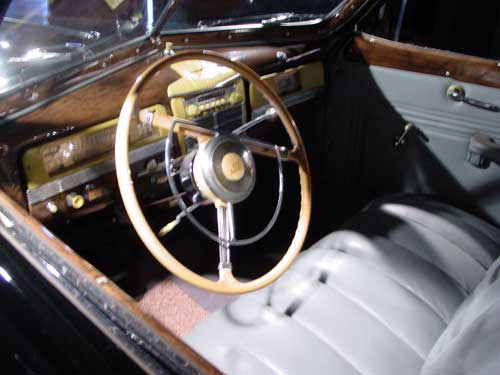

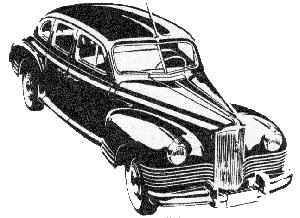

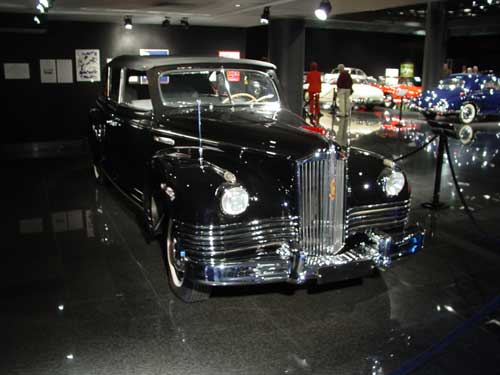

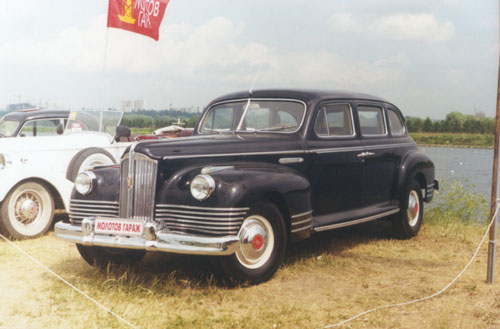

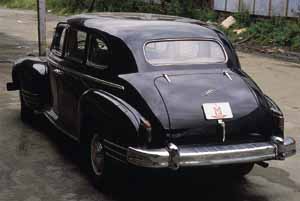

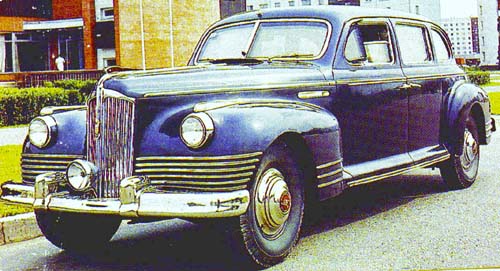

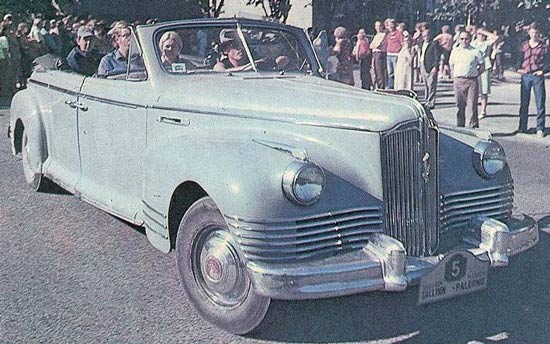

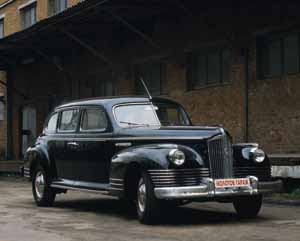

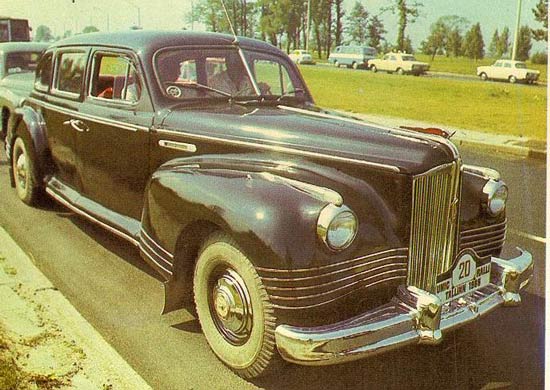

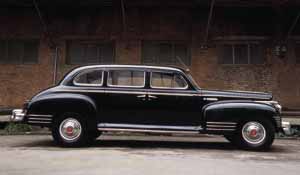

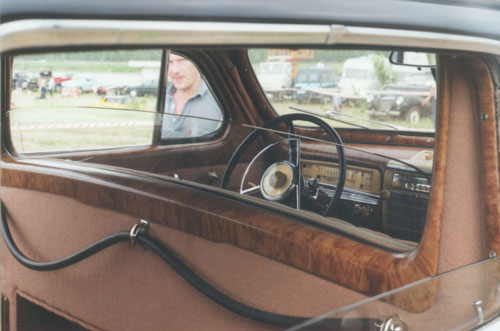

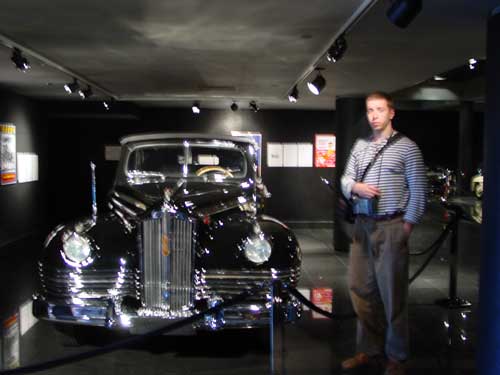

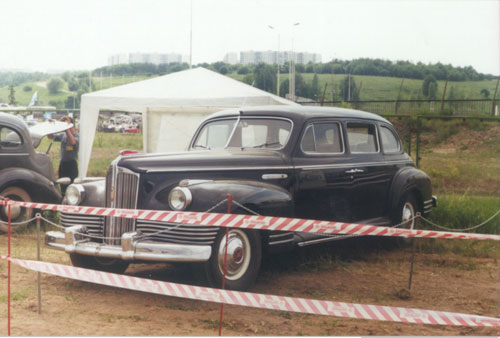

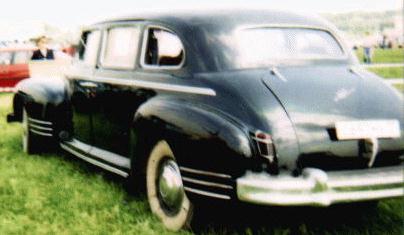

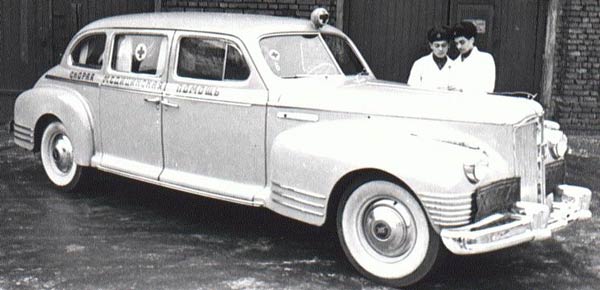

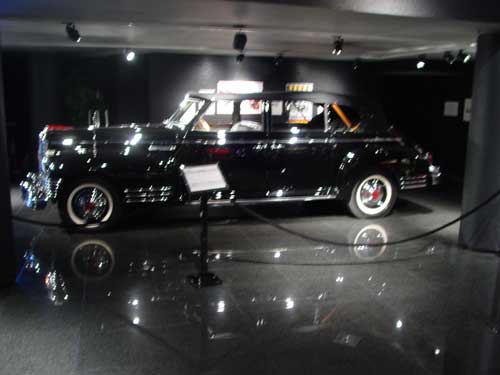

24 KB (color, front view, 1946, restored, in San Francisco museum [30]) 18 KB (color, side view, same as above [30]) 21 KB (color, rear view, same as above [30]) 22 KB (color, interior view, same as above [30]) 16 KB (color, rear interior view, same as above [30]) 21 KB (color, front view, same as above, myself beside the car [30]) 37 KB (color, side view, 1945, restored [122]) 36 KB (color, interior view through closed rear right door [122]) 23 KB (color, interior view through open rear left door [122]) 29 KB (color, side view [122]) 40 KB (color, side view [122]) 22 KB (color, side view, drawing [106]) 54 KB (color, front view [28]) 17 KB (color, rear view [28]) 21 KB (b/w, side view [1]) 29 KB (b/w, side view, taxi stand [104]) 11 KB (color, front view [77]) 12 KB (color, rear view [77]) 9 KB (color, side view [77]) 10 KB (color, front view [77]) 18 KB (b/w, front view, drawing [103]) 42 KB (b/w, rear view, ZIS-110S ambulance [7]) 32 KB (b/w, side view, ZIS-110S ambulance [7]) 37 KB (b/w, front view, ZIS-110S ambulance [7]) 52 KB (b/w, side view, ZIS-110B cabriolet [1950-1958] [7]) 37 KB (color, side view, drawing, ZIS-115 armored [3]) 49 KB (color, front view, ZIS-115 armored [76]) |
This car is based on the american Packard 180 of 1938.
Jan Volgovodov
[121] presented me on 4th of March 2000 with a scale model [1:43] of ZIS-110.
