| Model | MAZ-530 |
| Seating | 2 |
| Net-weight, kg [lb] | 38,400 [84,480] |
| Full load weight, kg [lb] | 78,400 [172,480] |
| Load weight, kg [lb] | 40,000 [88,000] |
| Total trailer weight, kg | - |
| Length, mm [in.] | 10,520 [414] |
| Width, mm [in.] | 3460 [136] |
| Height, mm [in.] | 3670 [144] |
| Base, mm [in.] | 4900 [193] (2000[79] in rear) |
| Minimal clearance, mm [in.] | 460 [18] (beneath rear+middle axles) |
| Minimal radius of turn, m [yards] | 14 [15.4] |
| Maximum speed, km/h [mi/h] | 43 [26.7] |
| Maximum horsepower, hp [kW] | 450 [336] @ 1800 rpm |
| Maximum torque, N*m [lbs*ft] | 208 [1350] @ 1,100-1,200 rpm |
| Engine capacity, liters [cm3] | 38.8 [38,800] |
| Compression ratio | 15:1 |
| Gear ratios | 3.36/1.83/1.00/R-2.6 |
| Main gear ratio | 22.284 [high-0.774, low-1.57] |
| Mileage, liters/100km [mi/gal] | 200 [1.2] (@ 30 km/h) |
| Breaking distance, m | - |
| Fuel tank capacity, liters [gal] | 600 [159] |
| Years of production | 1957-1960 [1963]* |
| Type of engine | D-12A450, V12, 4-tact, diesel |
| Bore/stroke, mm | 150.0/180.0 in left row, 186.7 in right row of cylinders |
| Wheel formula | 6 X 4 |

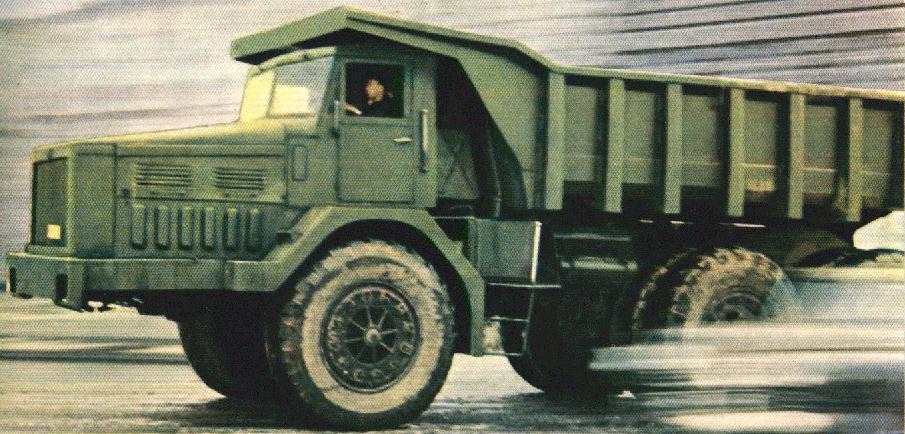

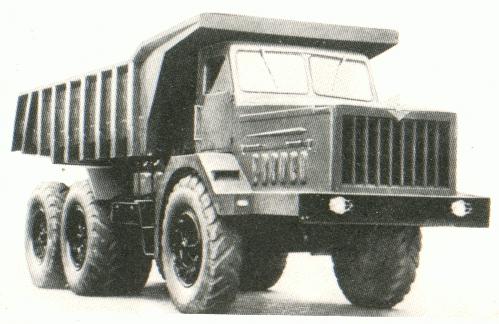

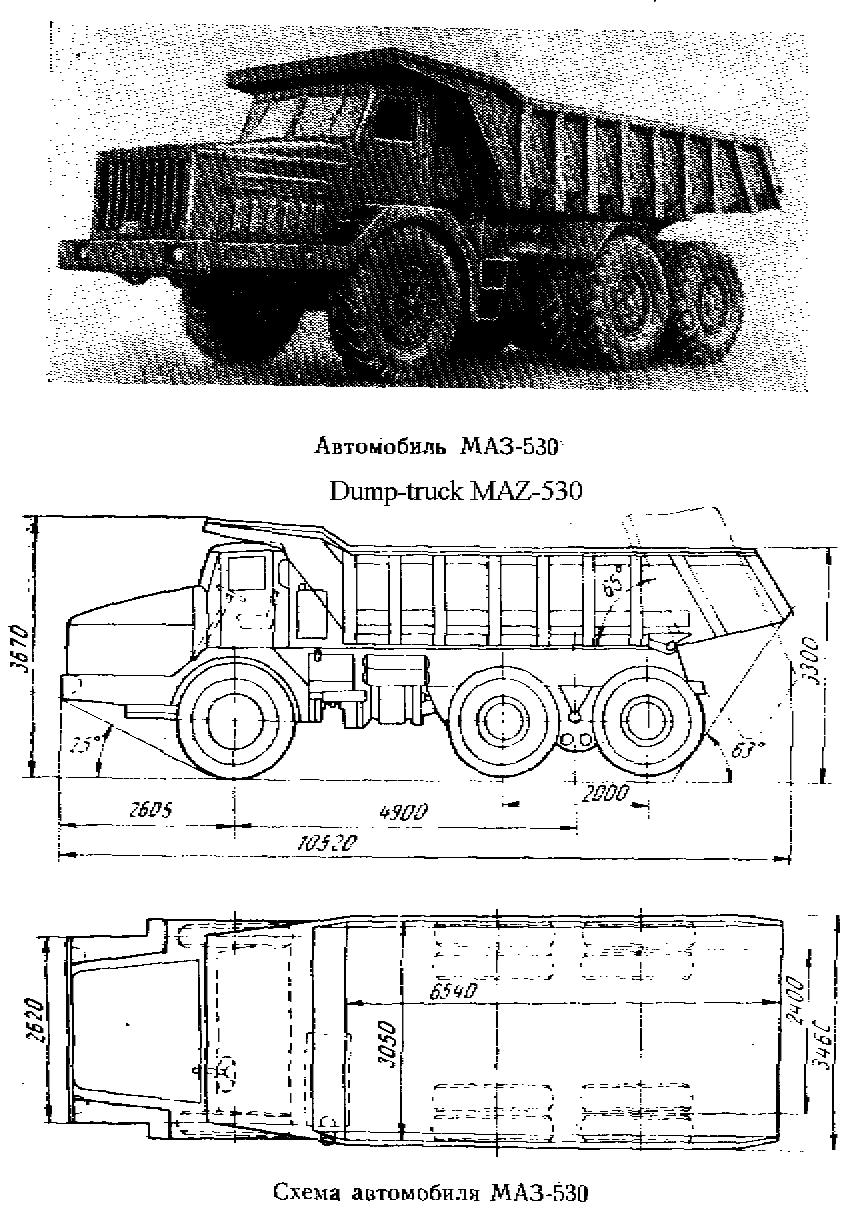

| Pictures | 66 KB (color, side view,
drawing [106]) 48 KB (b/w, side view w/ technical info [1]) 30 KB (b/w, front view [28]) 93 KB (color, side view [5]) |
The Minsk Automobile Plant manufactured MAZ-530
from 1957-1960. In 1960 the manufacture was handed over to the
Belorussian Automobile Plant after which these trucks became publicly known as
BelAZ. The
manufacturing stopped completely in 1963.
The drivers of these trucks had the comfort of a heated interior, adjustable seat, pneumatic brakes, power steering all of which made working with these "monsters" a bit easier.
