| Model | KAvZ-685 |
| Seating | 21 seats/ 28 total |
| Net-weight, kg [lb] | 4,080 [8,976] |
| Full load weight, kg [lb] | 6,545 [14,399] |
| Load weight, kg | - |
| Total trailer weight, kg | - |
| Length, mm [in.] | 6600 [260] |
| Width, mm [in.] | 2405 [95] |
| Height, mm [in.] | 2835 [112] |
| Base, mm [in.] | 3700 [146] |
| Minimal clearance, mm [in.] | 265 [10.4] |
| Minimal radius of turn, m [yards] | - |
| Maximum speed, km/h [mi/h] | 80 [50] |
| Maximum horsepower, h.p. [kW] | 115 [85] @ 3,200 rpm |
| Maximum torque, N·m [lb·ft] | - |
| Engine displacement, liters [cc] | 4.25 |
| Compression ratio | 6.7:1 |
| Gear ratios | 4 speeds |
| Main gear ratio | - |
| Mileage, liters/100km [mi/gal] | 24 [10] |
| Breaking distance, m | - |
| Fuel tank capacity, liters [gal] | 105 [28] (A-76) |
| Years of production | 1971-199? |
| Type of engine | ZMZ-53, carb., 4-tact, V8, ohv |
| Wheel formula | 4 X 2 |

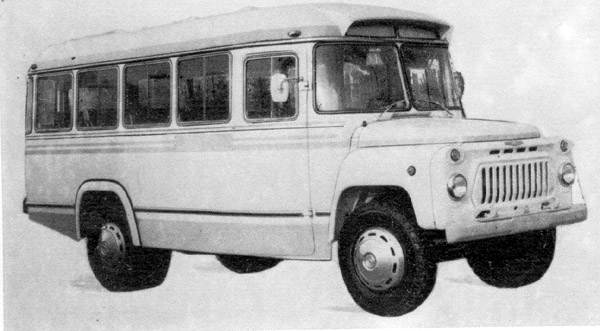

| Pictures | 60 KB (b/w, side view [KAvZ-685]
[3]) 93 KB (color, side view, drawing [KAvZ-685] [106]) |
This series of KAvZ buses was based on
GAZ-52.
There was a number of different modifications.
The newer modification of KAvZ-685, KAvZ-3976 can be seen on this page.
