| Model | KAvZ-3100 |
| Seating | 21 seats/ 95 total |
| Net-weight, kg [lb] | 7,650 [16,830] |
| Full load weight, kg [lb] | - |
| Load weight, kg | - |
| Total trailer weight, kg | - |
| Length, mm [in.] | 9295 [366] |
| Width, mm [in.] | 2500 [98] |
| Height, mm [in.] | 3010 [119] |
| Base, mm [in.] | 4730 [186] |
| Minimal clearance, mm [in.] | - |
| Minimal radius of turn, m [yards] | - |
| Maximum speed, km/h [mi/h] | 70 [43] |
| Maximum horsepower, h.p. [kW] | 150 [110] @ 3,100 rpm |
| Maximum torque, N·m [lb·ft] | - |
| Engine displacement, liters [cc] | 6.0 [6,000] |
| Compression ratio | 6.5:1 |
| Gear ratios | automatic |
| Main gear ratio | - |
| Mileage, liters/100km [mi/gal] | 45 |
| Breaking distance, m | - |
| Fuel tank capacity, liters [gal] | - |
| Years of production | ? |
| Type of engine | ZIL-130Ya7, carb., 4-tact, 8 cyl., ohv |
| Wheel formula | 4 X 2 |

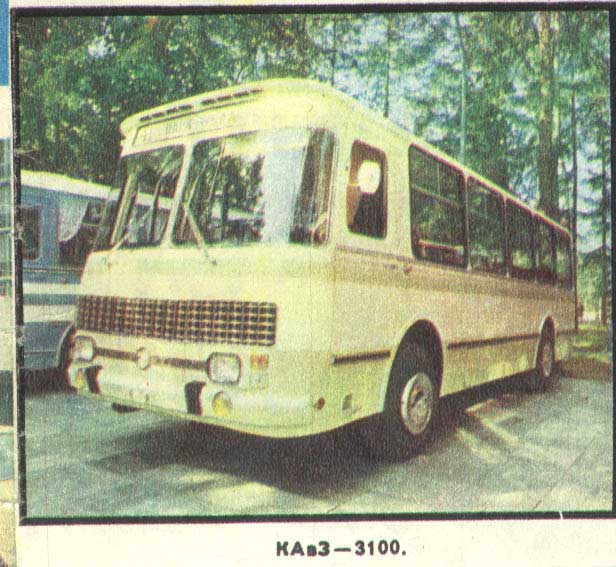

| Pictures | 58 KB (color, front
view [4])
75 KB (color, side view, drawing [106]) |
This bus is very similar in appearance and some mechanisms to
LiAZ-677.
Its major difference is that it is slightly shorter and has a
different engine.
