| Model | KamAZ-Katasi-S1 |
| Seating | 3 |
| Net-weight, kg | 12,100 |
| Full load weight, kg | 28,500 |
| Load weight, kg | 16,400 |
| Total trailer weight, kg | - |
| Length, mm | 7700 |
| Width, mm | 2500 |
| Height, mm | - |
| Base, mm | - |
| Minimal clearance, mm | - |
| Minimal radius of turn, m | - |
| Maximum speed, km/h | - |
| Maximum horsepower, hp | 260 @2600 rpm |
| Engine capacity, liters | - |
| Gear ratios | - |
| Main gear ratio | - |
| Mileage, liters/100km | - |
| Breaking distance, m | - |
| Fuel tank capacity, liters | - |
| Years of production | 1996? |
| Type of engine | KamAZ-7403.10, V8, diesel turbo |
| Wheel formula | 6 X 6 |
| Pictures | 10 KB (b/w, mutation of KamAZ and Tatra [87]) |

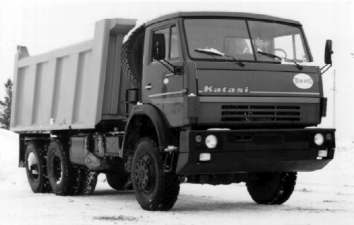

This vehicle represents the chassis of Tatra-815 and the engine and body of KamAZ. Note the sloping of wheels, which is characteristic of unloaded Tatra chassis.

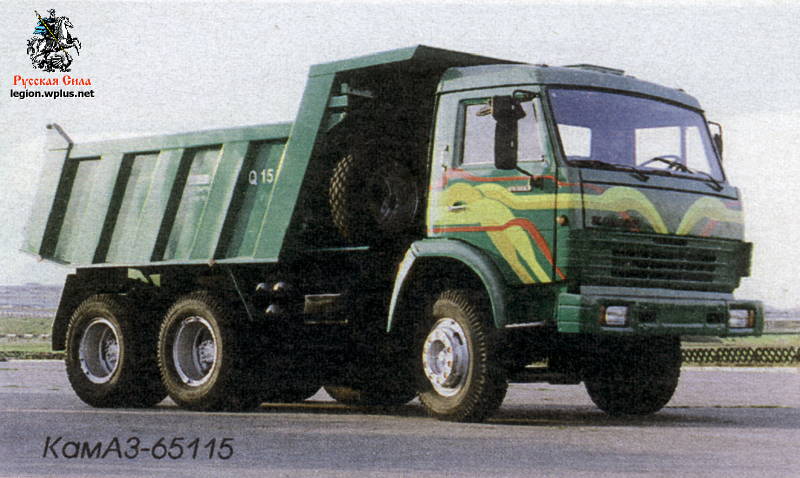

KamAZ-65115 (63 KB) is the same, or nearly the same as Katasi-S1. It has a capacity of 8m3 and carries up to 15,000 kg.
