| Model | GAZ-11-73 (GAZ-11-40)* | |
| Seating | 5 | |
| Curb weight, kg | TOTAL | 1,450 (1,400) |
| front axle | - | |
| rear axle | - | |
| Gross weight, kg | TOTAL | 1,800 (-) |
| front axle | - | |
| rear axle | - | |
| Payload [carrying capacity] weight, kg | - | |
| Permissible [semi-]trailer weight, kg | - | |
| Length, mm | 4655 (4625) | |
| Width, mm | 1770 (1800) | |
| Height, mm | 1775 (1730) | |
| Wheelbase, mm | 2845 | |
| Track width, mm | front | - |
| rear | - | |
| Minimal ground clearance, mm | under front axle | - |
| under rear axle | 210 | |
| Minimal radius of turn, m | b/n curbs (outer front wheel) | - |
| b/n walls (extreme exterior dimension | - | |
| Maximum speed, km/h | 120 | |
| Fuel consumption, liters/100km | 16.5 (14.5) | |
| Acceleration time from 0-100 km/h, seconds | - | |
| Transmission | gearbox | 3 speeds |
| gearbox ratios | - | |
| main gear ratio | singular, pair of bevel gears w/ spiral teeth | |
| transfer case ratio | - | |
| clutch | single-disk, dry, semi-centrifugal | |
| Wheels | number | - |
| tire size | 7,00-16 | |
| tire pressure, kg/cm2 | - | |
| Suspension | front | on a longitudinal semi-elliptical leaf spring |
| rear | on a longitudinal semi-elliptical leaf spring | |
| Steering | gear | cone worm and 2-ridge roller |
| gear ratio | - | |
| Brakes | braking distance, m | - |
| service (foot) | drum brakes w/ mechanical drive to all wheels | |
| parking (hand) | drum brakes w/ mechanical drive to all wheels | |
| Filling capacities, liters | fuel tank | - |
| engine cooling system | - | |
| engine lubrication system | - | |
| gearbox housing | - | |
| axle housing | - | |
| steering system cylinder | - | |
| shock absorbers | - | |
| hydraulic brake drive | - | |
| air filter | - | |
| Carburetor | - | |
| Electric equipment | - | |
| Accumulator battery | - | |
| Generator [alternator] | - | |
| Relay-regulator | - | |
| Starter motor | - | |
| Timer-distributor | - | |
| Spark plugs | - | |
| Engine | engine type | GAZ-11, 6 cyl., carb., 4-stroke, sv |
| cylinder work order | - | |
| maximum horsepower, hp | 76 @ 3,400 rpm | |
| maximum torque, N·m | 21.5 | |
| displacement, liters | 3.485 | |
| compression ratio | 5.6:1 | |
| bore/stroke, mm | 82 / 110 | |
| Years of production | 1941, 1945-1948 (1940) | |
| Overall units made | 1,250 (? 2) | |
| Wheel arrangement | 4 X 2 | |
| Pictures | 31 KB (b/w, side view,
prototype [2]) 20 KB (color, front view, drawing [106]) 22 KB (color, rear view, late model [7/28]) 43 KB (color, front view [3]) 23 KB (color, front view, late model [7/28]) 19 KB (b/w, side view, late model [7/28]) 28 KB (b/w, front view [late GAZ-11-40; early GAZ-11-41; early GAZ-11-73] [135]) 45 KB (color, side view [GAZ-11-40] [3])33 KB (b/w, front view [GAZ-11-40] [7/28]) 21 KB (b/w, side view [GAZ-11-40] [7/28]) |
|

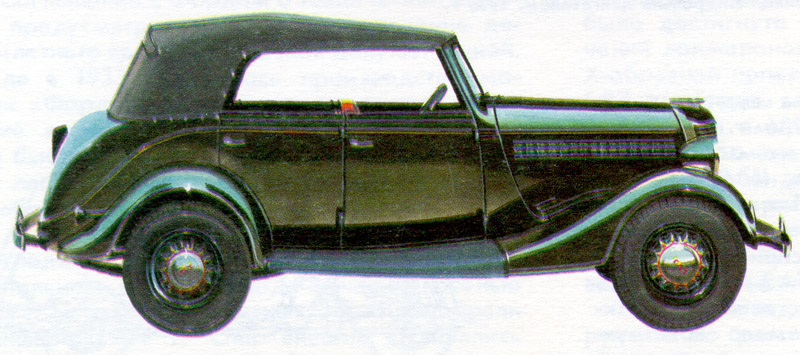

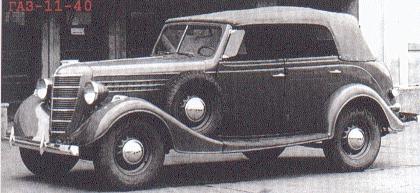

*in parenthesis is technical data for cabriolet GAZ-11-40 that is different from sedan GAZ-11-73.

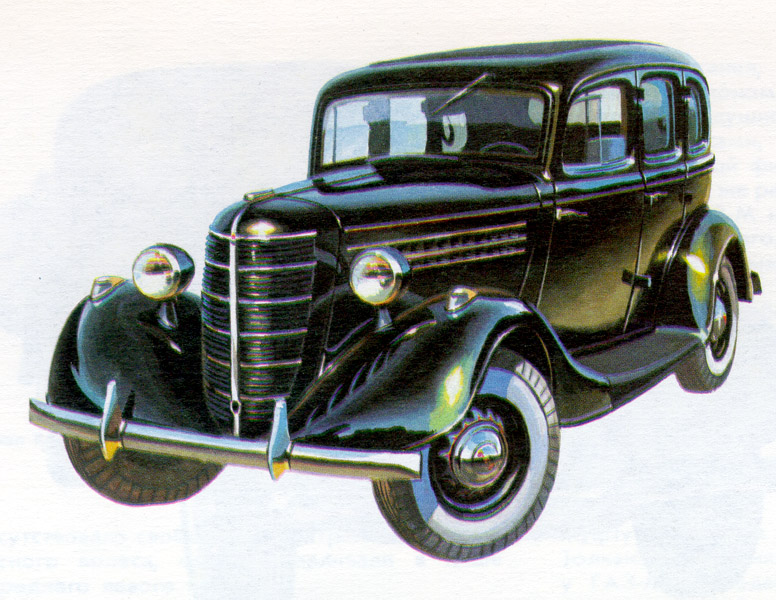

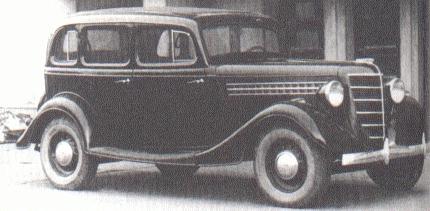

Apparently, production of GAZ-11-73 was halted during the war,
when all industry was working on the vehicles needed for defense,

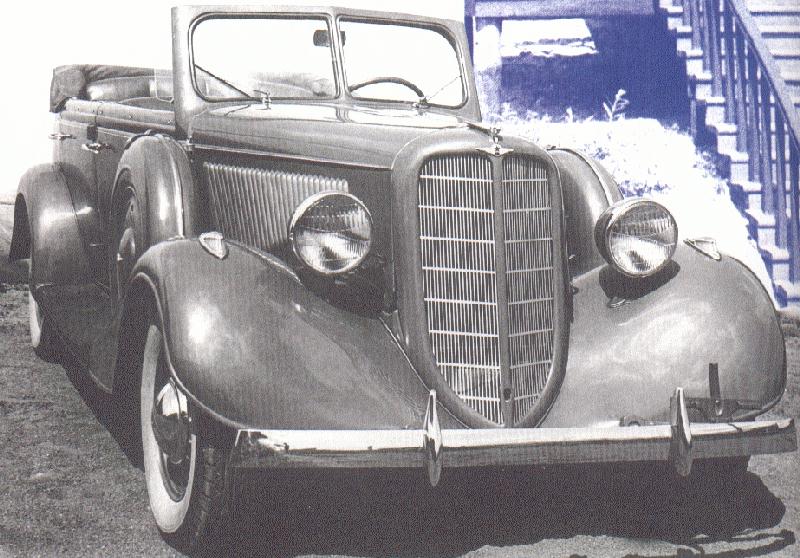

rather then passenger cars. Interestingly, the phaeton model GAZ-11-40 had
V-shaped windshield glass, while the basic sedan model had a flat glass. Also
interesting is that sedan GAZ-11-73 and the pickup GAZ-11-41 had doors with rear
hinges, while the cabriolet GAZ-11-40 had front hinges. GAZ-11-41 pickup which
was planned for production only existed as prototype and instead
GAZ-M-415
pickup was made with GAZ-M engine.
