| Model | AMO-F-15 |
| Seating | 2 |
| Net-weight, kg [lb] | 1,920 [4,224] |
| Full load weight, kg [lb] | 3,570 [7,854] |
| Load weight, kg [lb] | 1,500 [3,300] |
| Total trailer weight, kg [lb] | - |
| Length, mm [in.] | - |
| Width, mm [in.] | - |
| Height, mm [in.] | - |
| Base, mm [in.] | 3070 [121] |
| Minimal clearance, mm [in.] | 225 [8.9] |
| Minimal radius of turn, m [yards] | - |
| Maximum speed, km/h [mi/h] | 50 [31] |
| Maximum horsepower, hp [kW] | 35 [26] @ 1,400 rpm |
| Maximum torque, N·m [lb·ft] | 18.5 [120] |
| Engine displacement, liters [cc] | 4.40 [4,396] |
| Compression ratio | 4.0:1 |
| Gear ratios | 4 gears |
| Main gear ratio | - |
| Mileage, liters/100km [mi/gal] | 24 [9.8] |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - |
| Breaking distance, m [yards] | - |
| Fuel tank capacity, liters [gal] | - |
| Years of production | 1924-1931 |
| Type of engine | 4 cyl., 4-tact, carb. |
| Bore/Stroke, mm [in.] | 100 [3.94]/ 140 [5.51] |
| Wheel formula | 4 X 2 |

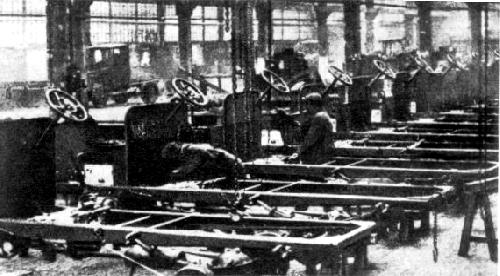

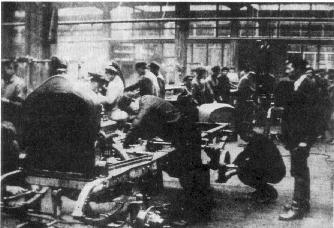

| Pictures | 19 KB (b/w, assembly of

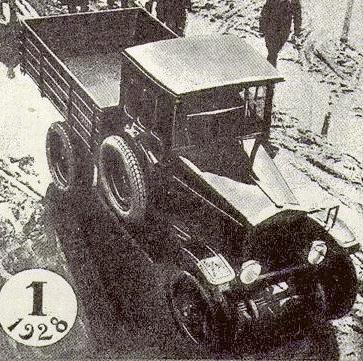

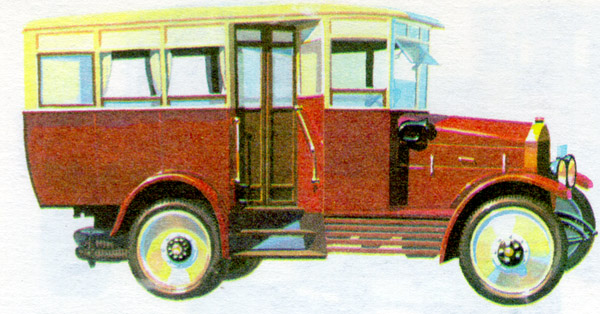

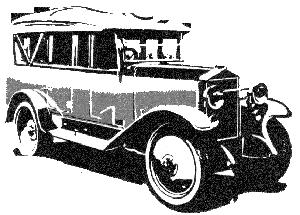

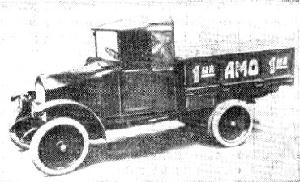

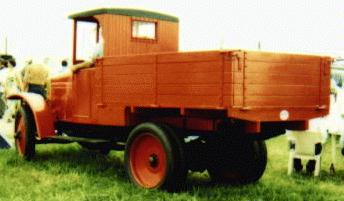

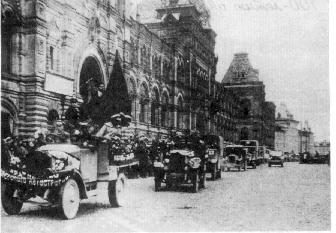

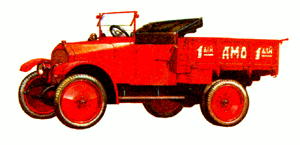

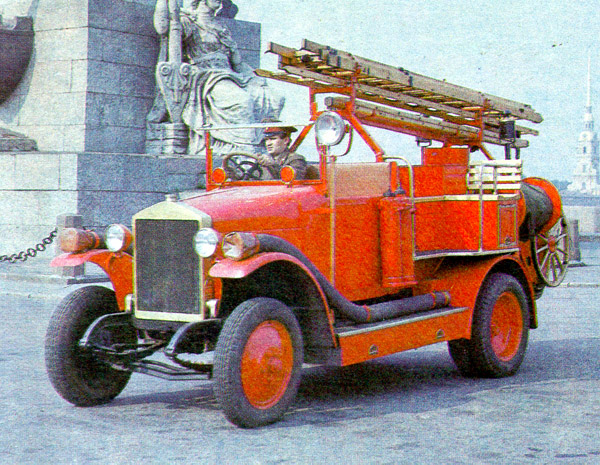

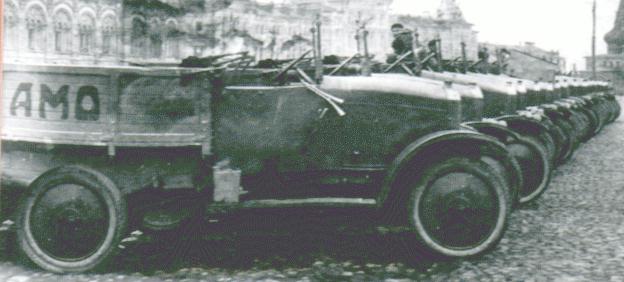

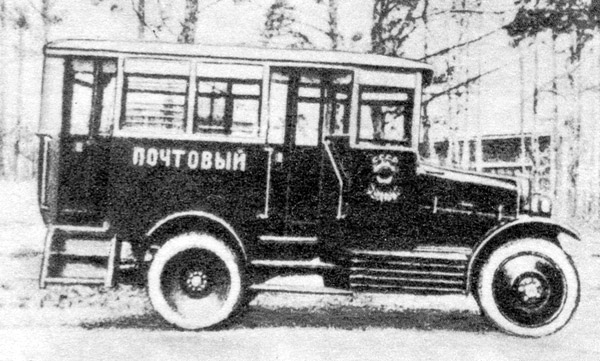

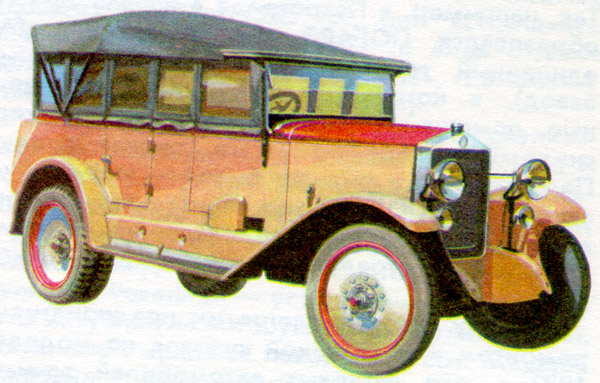

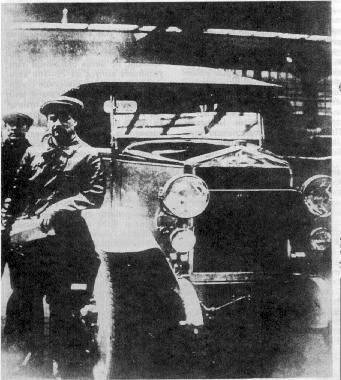

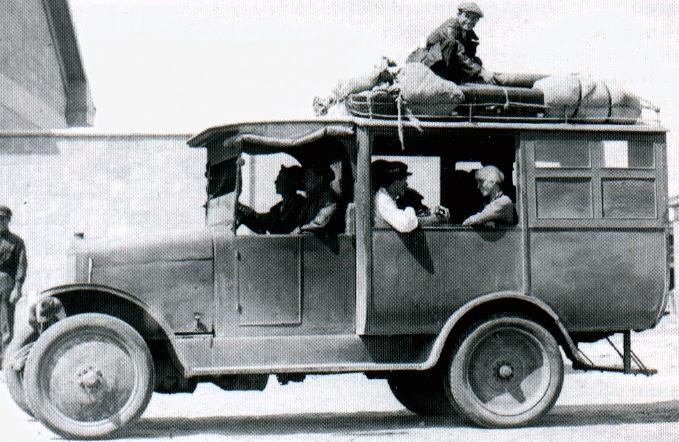

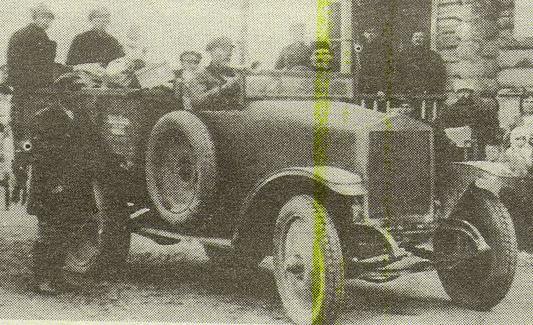

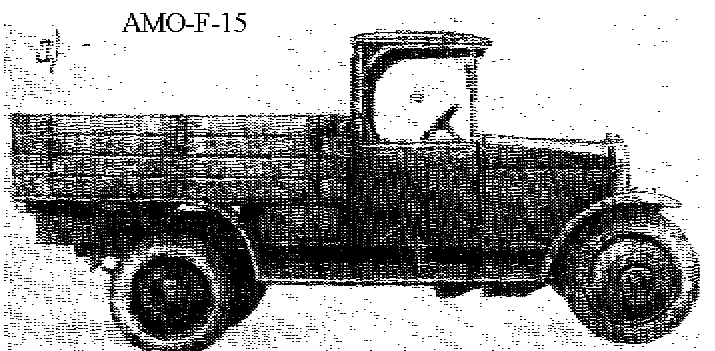

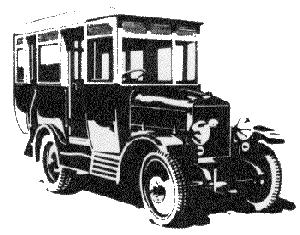

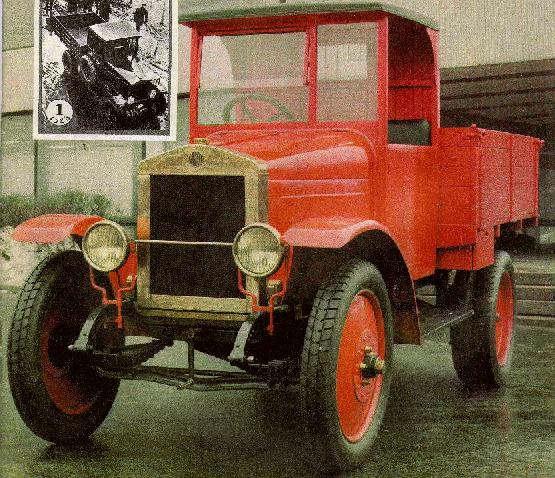

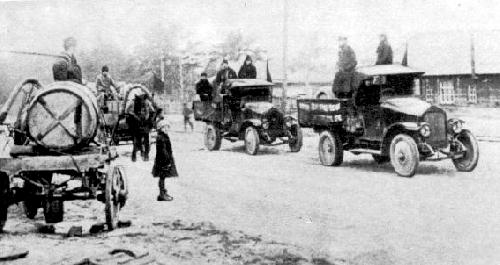

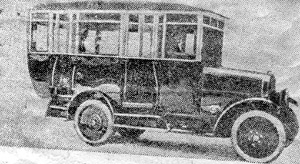

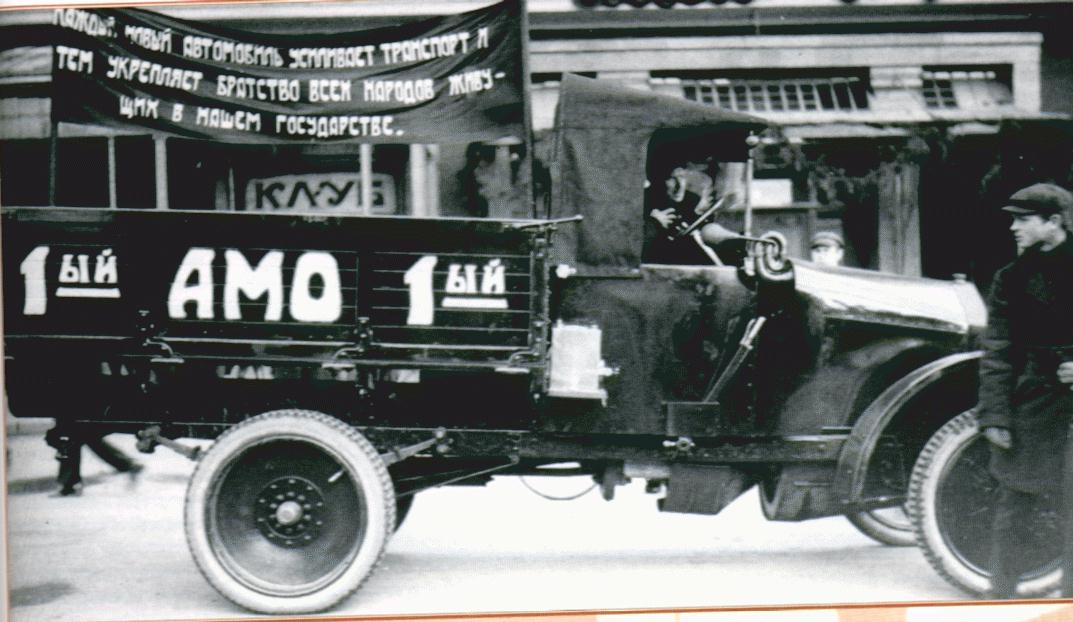

the first 10 trucks [104]) 10 KB (color, side view, drawing, one of first 10 assembled in November of 1924 [3]) 14 KB (b/w, side view, one of first 10 assembled in 1924 [16]) 27 KB (b/w, side view, test run in 1924 [3]) 95 KB (b/w, side view, 1924 [66]) 30 KB (b/w, side view, line up of trucks, 1925 [66]) 20 KB (b/w, front view, winner of the rally Moskva-Orel-Kursk-Moskva in 1925 [104]) 60 KB (b/w, front view, 1926 [66]) 13 KB (color, rear view, 1926 [28]) 81 KB (color, front view, 1926 [4]) 37 KB (b/w, assembly work of 2nd industrial series of trucks in 1928 [3]) 48 KB (b/w, top view, 1928 [4]) 67 KB (color, side view, drawing [106]) 178 KB (color, front view, fire-fighting truck in SPb [3]) 17 KB (b/w, side view [1]) 85 KB (b/w, side view, postal bus [3]) 89 KB (color, side view, drawing [3]) 66 KB (b/w, side view, bus [66]) 32 KB (b/w, side view, bus [16]) 20 KB (b/w, front view, drawing, bus [103]) 30 KB (b/w, front view, car version, w/ I.A.Lihachev [104]) 102 KB (color, side view, drawing, car version [3]) 19 KB (b/w, front view, drawing, car version [103]) |
AMO-F-15 was the first vehicle made at the site of AMO factory. Approximately 6,000 of these trucks were made.
