AMO-3, AMO-4

SovAvto Website.



Model  AMO-3
Seating 2
Net-weight, kg [lb] 2,840 [6,248]
Full load weight, kg [lb] 5,340 [11,748]
Load weight, kg [lb] 2,500 [5,500]
Total trailer weight, kg [lb] -
Length, mm [in.] -
Width, mm [in.] -
Height, mm [in.] -
Base, mm [in.] -
Minimal clearance, mm [in.] -
Minimal radius of turn, m [yards] -
Maximum speed, km/h [mi/h] 60 [37]
Maximum horsepower, hp [kW] 60 [45]
Maximum torque, N·m [lb·ft] 25 [162]
Engine displacement, liters [cc] 4.88 [4,880]
Compression ratio 4.6:1
Gear ratios -
Main gear ratio -
Mileage, liters/100km [mi/gal] 33 [7.1]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] -
Years of production 1932-1934
Type of engine 6 cyl., 4-tact, carb.
Bore/Stroke, mm [in.] 95.25 [3.75]/ 114.3 [4.50]
Wheel formula 4 X 2

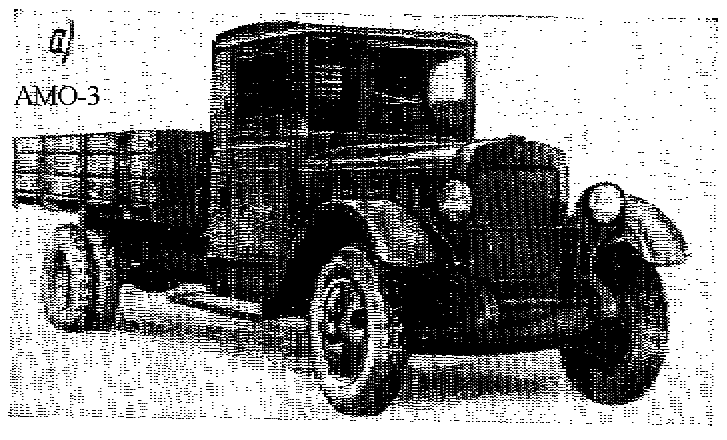

Pictures 21 KB (b/w, front view [1])

76 KB (color, front view, drawing [106])

AMO-4 [1933-1934] is simply a 22-seat bus built on AMO-3 chassis. Besides the dimensions and exterior different look, it had a mass of 4,100 kg [9,020 lb.]. The rest was exactly the same. In its exterior appearance AMO-3 truck was very similar to AMO-2.
