ZIL-5301 "Bychok"

SovAvto Website.



Model ZIL-5301 "Bychok" (ZIL-5301 "Bychok" short version) ZIL-432722
Seating 3 3
Net-weight, kg [lb] 3,005 [6,610] (2,955 [6,500]) 4,450 [9,790]
Full load weight, kg [lb] 6,950 [15,290] 8,460 [18,610]
Load weight, kg [lb] 3,945 [8,680] (3,995 [8,790]) 4010 [8,820]
Total trailer weight, kg [lb] - -
Length, mm [in.] 6765 [266] (6165 [243]) 5400 [212]
Width, mm [in.] 2210 [87] 2475 [97]
Height, mm [in.] 2369 [93] 2810 [110]
Base, mm [in.] 4250 [167] (3650 [144]) 3340 [131]
Minimal clearance, mm [in.] - -
Minimal radius of turn, m [yards] 7.8 [8.6] (7.0 [7.7]) 8.1 [8.9]
Maximum speed, km/h [mi/h] 95 [59] 70 [44]
Maximum horsepower, hp [kW] 108 [80] @ 2,400 rpm
Maximum torque, N·m [lb·ft] 35 [227] @ 1,300-1,700 rpm 37.4 [243] @ 1,600-2,000 rpm
Engine displacement, liters [cc] 4.75 [4,750]
Compression ratio 15.1:1
Gear ratios - -
Main gear ratio - -
Mileage, liters/100km [mi/gal] 12 [20] -
Acceleration time from 0-60 km/h [37 mi/h], seconds 29 19
Breaking distance, m [yards] - -
Fuel tank capacity, liters [gal] - -
Years of production 1994-present 1994-present
Type of engine D-245.12 MMZ, 4 linear cyl., diesel
Bore/Stroke, mm [in.] - -
Wheel formula 4 X 2 4 X 4
Pictures 16 KB (color, side view, thermal [ZIL-5301GO] [73])

14 KB (color, side view, van [ZIL-5301SS] [73])

16 KB (color, front view, 7 seats [ZIL-5301TO] [73])

19 KB (color, side view, tow [up to 2,300 kg & 4400 mm] truck [ZIL-5301 chassis] [73])

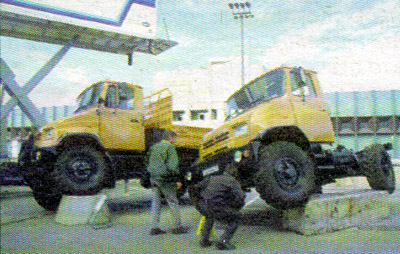

71 KB (color, side view, 2 trucks lifted for inspection [13])

58 KB (color, side view, rear wheels lifted [13])

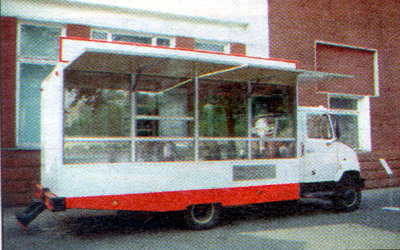

68 KB (color, side view, portable store [13])

10 KB (color, front view, chassis [10])

 17 KB (color, side view, platform truck [ZIL-432720] [73])

13 KB (color, front view [ZIL-432720] [73])

19 KB (b/w, tractor, w/ technical info [ZIL-432722] [73])

Top

Model

Base, mm [in.]

Load, kg [lb]

 Notes* Photos or diagrams

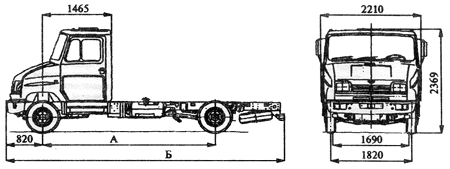

ZIL-5301BO-0000114-000, chassis 3650 [144] 4,000 [8,800]   20 KB (b/w, w/ technical info [73])
ZIL-5301BO-0000118-000, chassis 3650 [144] 4,000 [8,800] improved muffler system
ZIL-5301EO-0000115-000, chassis 4250 [167] 3,900 [8,580] export model available

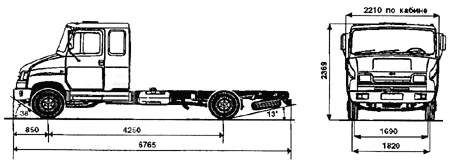

ZIL-5301UO-0000120-000, chassis 4250 [167] 3,800 [8,360] 2 sleeping spaces 15 KB (b/w, w/ technical info [73])
ZIL-5301GA-0000117-000, chassis 4250 [167] 3,700 [8,140] 2 rows of seats/ 7 total seats 14 KB (color, front view [10])

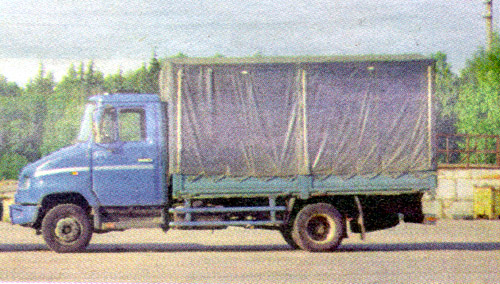

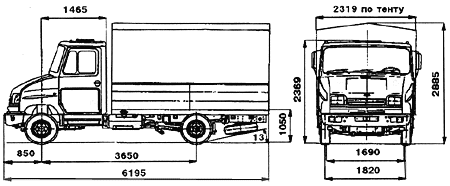

ZIL-5301AO-0000114-000, platform 3650 [144] 3,000 [6,600]   100 KB (color, side view [13]), 18 KB (b/w, w/ technical info [73])
ZIL-5301AO-0000118-000, platform 3650 [144] 3,000 [6,600] improved muffler system

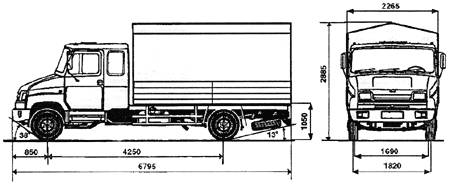

ZIL-5301YaO-0000120-000, platform 4250 [167] 2,800 [6,160] 2 sleeping spaces 19 KB (b/w, w/ technical info [73])

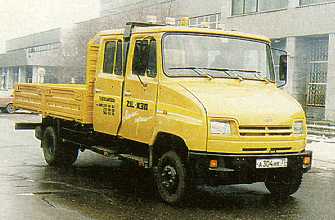

ZIL-5301TO-0000117-000, platform 4250 [167] 2,700 [5,940] 2 rows of seats/ 7 total seats 16 KB (color, front view [73])
ZIL-5301PO-0000114-000, thermal van 3650 [144] 2,700 [5,940]

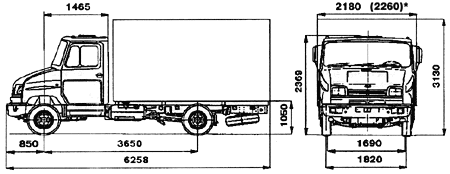

ZIL-5301PO-0000118-000, thermal van 3650 [144] 2,700 [5,940] improved muffler system 18 KB (b/w, w/ technical info [73])
ZIL-5301RO-0000115-000, thermal van 4250 [167] 2,500 [5,500]

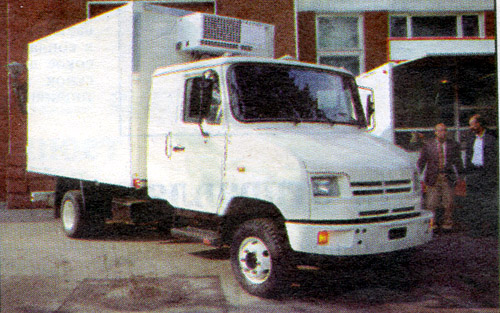

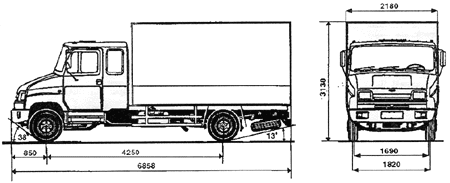

ZIL-5301VA-0000120-000, thermal van 4250 [167] 2,500 [5,500] 2 sleeping spaces 19 KB (b/w, w/ technical info [73]), 88 KB (color, front view [13])
ZIL-5301GO-0000114-000, isothermal van 3650 [144] 2,700 [5,940]   16 KB (color, side view [73])
ZIL-5301GO-0000119-000, isothermal van 3650 [144] 2,700 [5,940] improved muffler system
ZIL-5301VA-0000115-000, isothermal van 4250 [167] 2,500 [5,500]
ZIL-5301SS-0000114-000, fully metallic 3650 [144] 2,800 [6,160] rear double door 14 KB (color, side view [73])
ZIL-5301LO-0300001-000, chassis 3650 [144] 4,000 [8,800] engine: caterpillar, 137 h.p. [102 kW], 2 fuel tanks [125 L [33 gal.] each]
ZIL-5301UO-0300001-000, chassis 4250 [167] 3,900 [8,580] engine: caterpillar, 137 h.p. [102 kW]

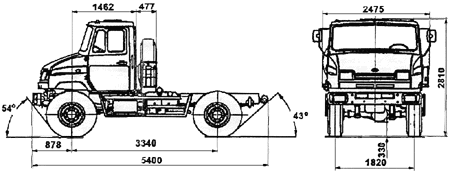

ZIL-432722-0300095-000, chassis 3340 [131] 3,800 [8,360] 4 X 4 19 KB (b/w, w/ technical info [73])
ZIL-432722-0300096-000, chassis 3340 [131] 3,800 [8,360] 4 X 4, with winch
ZIL-5301SO-0300001-000, thermal van 3650 [144] 2,700 [5,940] engine: caterpillar, 137 h.p. [102 kW]
ZIL-5301ZhA-0300001-000, thermal van 4250 [167] 2,500 [5,500] engine: caterpillar, 137 h.p. [102 kW]

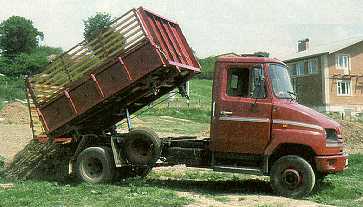

ZIL-MMZ-2502 - - farmer's dump-truck 17 KB (color, side view [73]), 16 KB (color, side view [10])

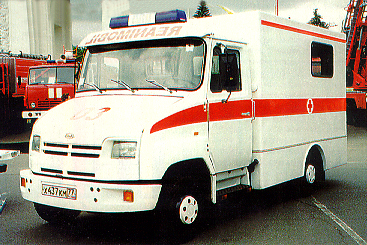

ZIL-3313 - - ambulance 160 KB (color, front view [10])

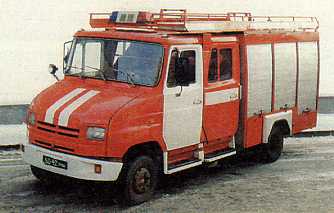

ZIL-5301 fire truck - - fire truck 13 KB (color, front view [10])

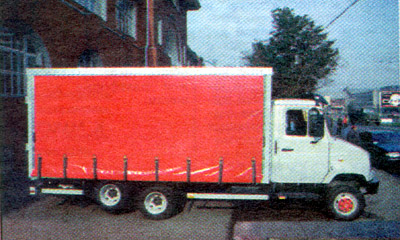

ZIL-5302 - - 6 X 4 9 KB (color, side view [10])

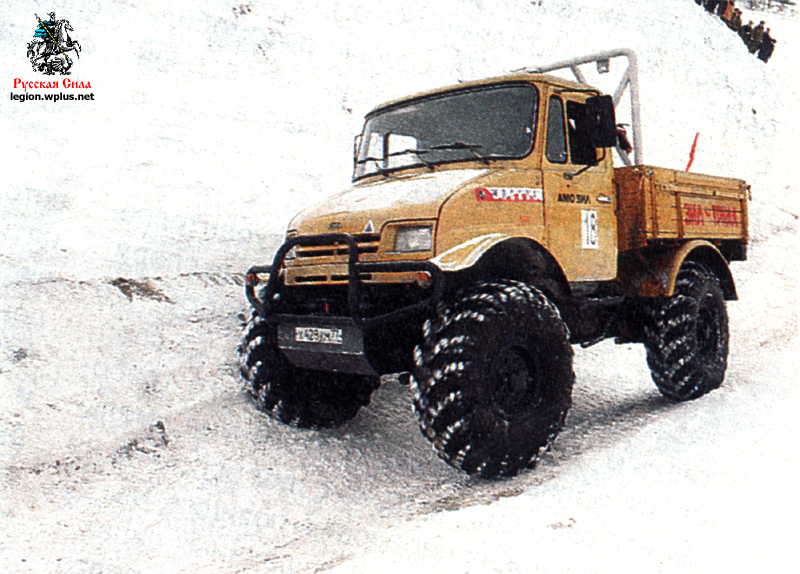

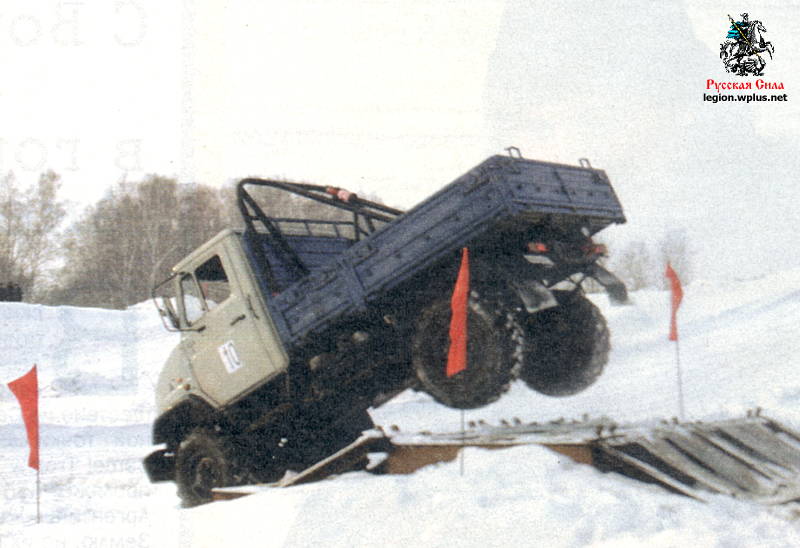

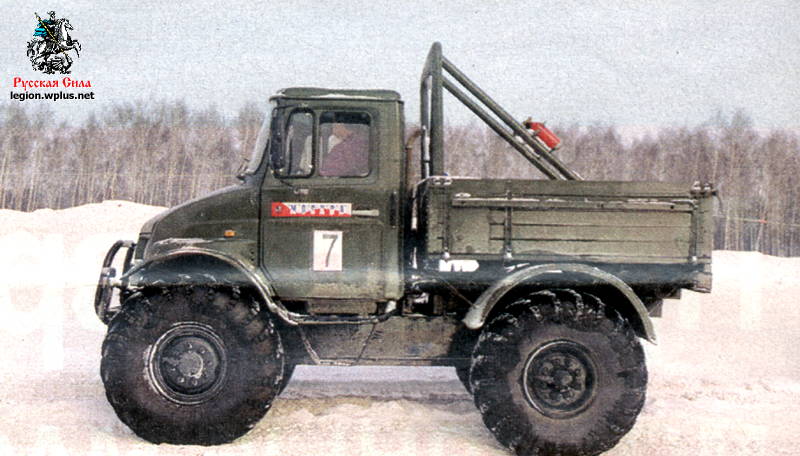

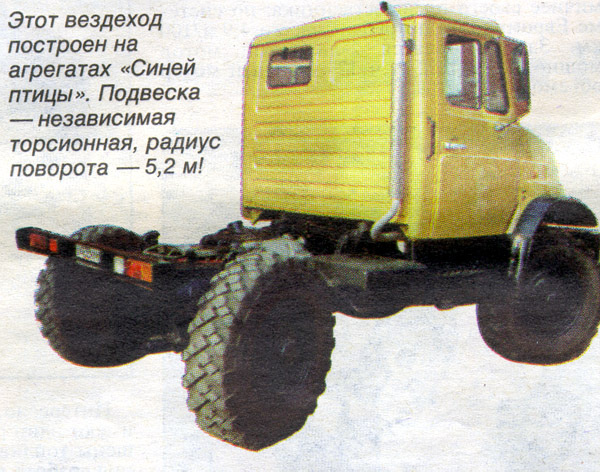

ZIL-3906-10 - - 4 X 4, unknown engine, built on basis of all-terrain "Blue Bird" 53 KB (color, front view [19/4]), 63 KB (color, side view [19/78]), 54 KB (color, side view [19/78]), 141 KB (color, rear view [13]), 13 KB (color, front view [10])

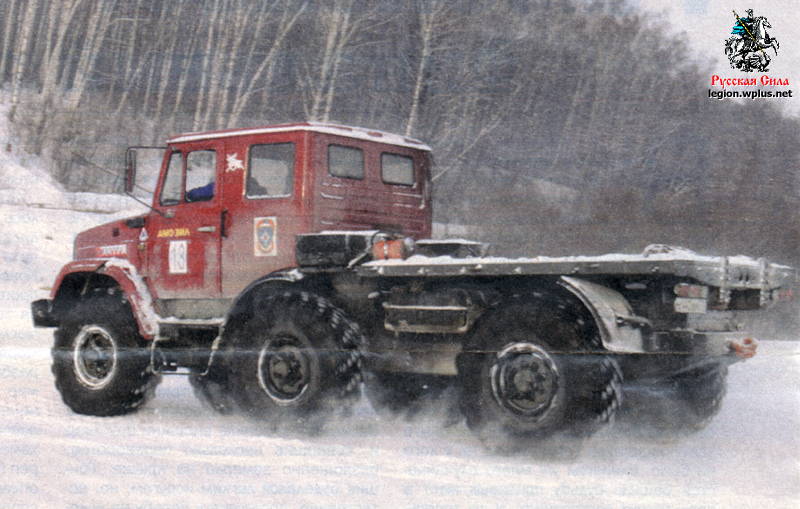

ZIL-4972 - - 6 X 6, unknown engine 64 KB (color, side view [19/78])

There are also other minor modifications such as garbage trucks, fire trucks, milk and gasoline cisterns, etc.

*Unless otherwise noted, vehicles in this list have D-245.12 MMZ engine and 4 X 2 wheel formula.

Top

These trucks are the basis for buses ZIL-3250 "Bychok". These vehicles are on sale from AMO ZIL.



Page created on Thursday, February 18, 1999. Page last updated on Sunday, February 10, 2002 02:03:07 AM EST.
