VAZ-2109 "Lada Samara", VAZ-21099 "Lada Forma"

Click here or scroll down to see info on modifications: VAZ-21093, VAZ-2109i, and VAZ-21099i.

Model	VAZ-2109 "Lada Samara" (hatchback)	VAZ-21099 "Lada Forma" (sedan)
Seating	5
Net-weight, kg [lb]	915 [2013]
Full load weight, kg [lb]	1340 [2948]
Load weight, kg [lb]	-
Total trailer weight, kg [lb]	-
Length, mm [in.]	4006 [157.7]
Width, mm [in.]	1650 [65]
Height, mm [in.]	1402 [55.2]
Base, mm [in.]	2460 [96.8]
Minimal clearance, mm [in.]	160 [6.3]
Minimal radius of turn, m [yards]	-
Maximum speed, km/h [mi/h]	148 [92]	160 [99]
Maximum horsepower, h.p. [kW]	64 [47] @5,600 rpm	70 [51.5] @5,600rpm
Engine capacity, liters [cm³]	1.3 [1300]	1.5 [1500]
Gear ratios	-
Main gear ratio	-
Mileage, liters/100km [miles/gal]	6.1[38.5] @90/7.8[30] @120/8.6[27.3] city	5.9[39.8] @90/8.0[29.3] @120/8.3[28.3] city
Breaking distance, m [yards]	-
Fuel tank capacity, liters [gal]	43 [11.4] (Ai-93)
Years of production	1988-present	1990-present
Type of engine	VAZ-2108, 4 linear cyl., ohc, carb.	VAZ-21083, 4 linear cyl., ohc, carb.
Acceleration from 0-100 km/h [0-62 mi/h], sec.	16	13.5
Wheel formula	4 X 2

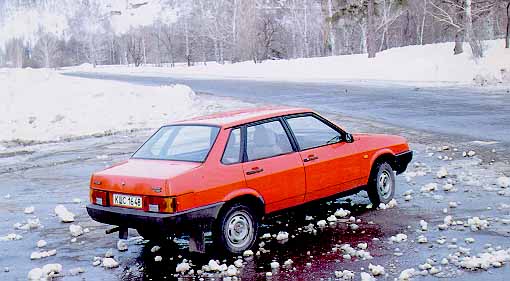

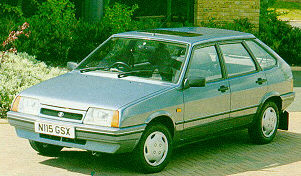

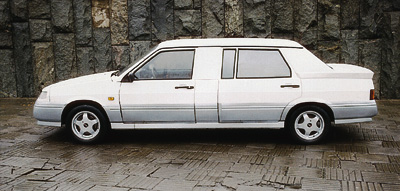

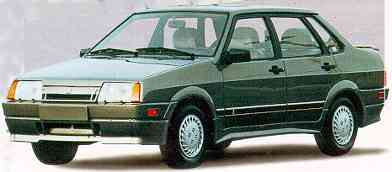

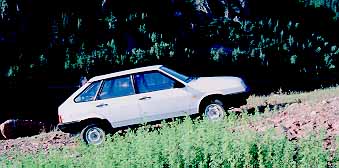

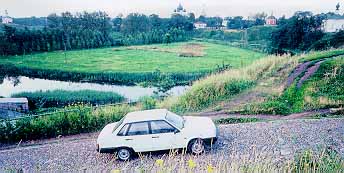

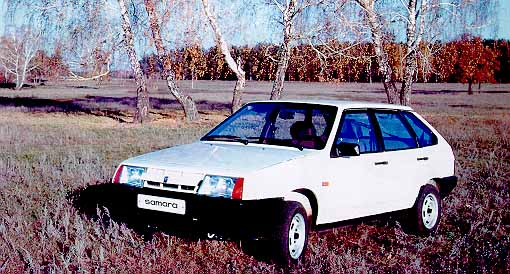

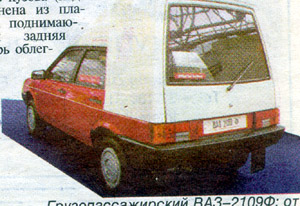

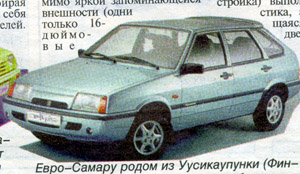

Pictures	7 KB (color, front view [12]) 26 KB (color, side view [12]) 20 KB (color, front view [12]) 51 KB (color, another front view [53]) 16 KB (color, another side view [53]) 9 KB (color, view of the [carb.] engine [53]) 7 KB (color, dashboard view [53]) 24 KB (color, another front view w/ enlarged cargo compartment VAZ-2109F [4]) 38 KB (color, rear view w/ enlarged cargo compartment VAZ-2109F [13]) 22 KB (color, another front view [4]) 21 KB (color, another front view [4]) 34 KB (color, front view "EuroSamara" [13]) 21 KB (color, front view, production line in factory [53]) 40 KB (color, side view [53])	19 KB (color, side view [53]) 7 KB (color, front view [12]) 9 KB (color, side view [12]) 6 KB (color, dashboard view [53]) 30 KB (color, another side view [53]) 17 KB (color, another front view [4]) 22 KB (color, another side view [4]) 21 KB (color, rear view [4]) 47 KB (color, limo version [4])

These were the second generation of cars made at the VAZ plant that actually differed from the Fiat model. The shape, as seen from pictures, was not much changed from the preceding model VAZ-2108 "Lada Samara". These cars are all front wheel drive.

Page created on Sunday, January 3, 1999. Page last updated on Monday, December 03, 2001 12:40:53 PM EST.

Here is info on VAZ-21093, VAZ-2109i, and VAZ-21099i
Model	Wheel Formula	Net/Full Mass, kg [lb]	Max speed, km/h [mi/h]	Engine, h.p. [kW]	other info	Pictures , descriptions
VAZ-21093 (hatchback)	4 X 2	915 [2013]/ 1340 [1948]	160 [99]	VAZ-21083, 4 linear cyl., carb., 1.500L, ohc, 70 h.p. [51.4 kW] @5,600 rpm	fuel economy better then in base model, accels to 100 km [62 mi] in 14 sec., years of production 1988-present	same as VAZ-2109
VAZ-2109i (hatchback)		945 [2079]/ 1370 [3014]	153 [95]	VAZ-2111, 4 linear cyl., fuel inj., ohc, 1.500L, 69 h.p. [51 kW] @5,300 rpm	slightly better fuel economy, accels in 13 sec., years of production 1994-present (import version)	same as VAZ-2109
VAZ-21099i (sedan)		945 [2079]/ 1460 [3212]	160 [99]			same as VAZ-21099
