UAZ-3741, UAZ-2206, UAZ-3962, UAZ-3909

SovAvto Website.



Model  UAZ-3741 UAZ-39094 (UAZ-39095)*
Seating 2 5 (2)
Net-weight, kg [lb] 1,720 [3,784] 1,900 [4,180] (1,800 [3,960])
Full load weight, kg [lb] 2,720 [5,984] 3,050 [6,710]
Load weight, kg [lb] 850 [1,870] 875 [1,925] (1,050 [2,310])
Total trailer weight, kg [lb] - -
Length, mm [in.] 4440 [175] 4974 [196] (4728 [186])
Width, mm [in.] 1940 [76] 1974 [78]
Height, mm [in.] 2101 [83] (2240 [88] UAZ-3962 w/ upper light) 2340 [92]
Base, mm [in.] 2300 [91] 2550 [100]
Minimal clearance, mm [in.] 220 [8.7] 195 [7.7]
Minimal radius of turn, m [yards] - -
Maximum speed, km/h [mi/h] 110 [68] 100 [62]
Maximum horsepower, hp [kW] 92 [69] @ 4,000 rpm 98 [73] @ 4,000 rpm
Maximum torque, N·m [lb·ft] 17.5 [113] @ 2,200-2,500 rpm 20.5 [133] @ 2,200-2,500 rpm
Engine displacement, liters [cc] 2.45 [2,445] 2.89 [2,890]
Compression ratio - -
Gear ratios I-4.124/II-2.641/III-1.580/IV-1.000/R-5.224
Main gear ratio 4.625
Transfer box ratio 1.94 and 1.00
Mileage, liters/100km [mi/gal] 15.8 [14.8] 19.1 [12.3]
Acceleration time from 0-100 km/h [62 mi/h], seconds - -
Breaking distance, m [yards] - -
Fuel tank capacity, liters [gal] 56 + 30 [14.8 + 8] A-76 56 [14.8] (56 X 2 [14.8 X 2])
Years of production ? ?
Type of engine UMZ-4178.10, 4I cyl., 4-tact, ohv, carb. UMZ-4218.10, 4I cyl., 4-tact, ohv, carb.
Bore/Stroke, mm [in.] - -
Wheel formula 4 X 4 4 X 4
Pictures  10 KB (color, side view [UAZ-3741] [10/63])

17 KB (color, front view [UAZ-3741] [63])

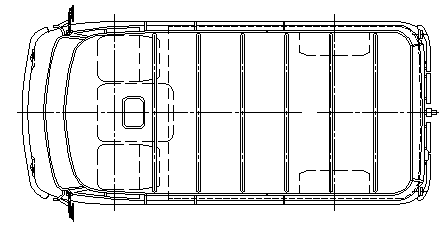

5 KB (b/w, top view, diagram [UAZ-3741] [63])

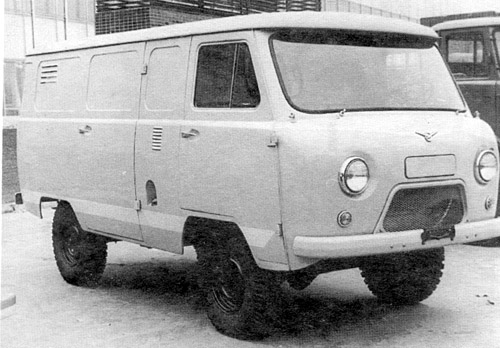

56 KB (b/w, front view [UAZ-3741] [3])

11 KB (color, front view [UAZ-2206] [10/63])

18 KB (color, front view [UAZ-2206] [63])

69 KB (color, side view [UAZ-2206] [19/4])

17 KB (color, front view [UAZ-3962] [63])

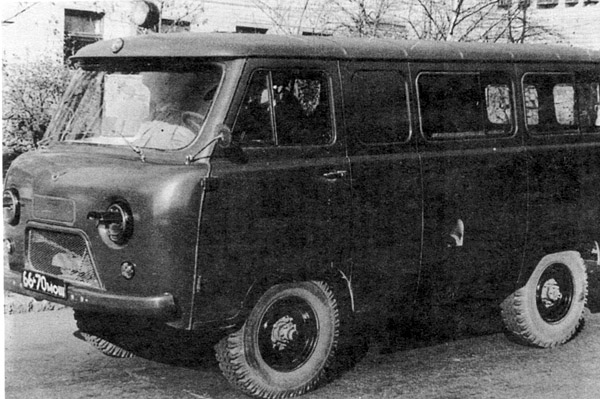

85 KB (b/w, side view [UAZ-3962] [3])

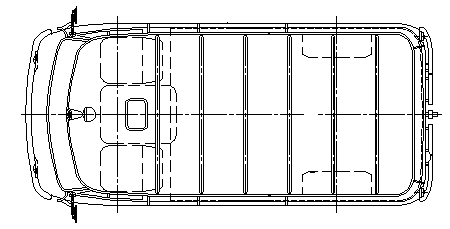

5 KB (b/w, top view, diagram [UAZ-3962] [63])

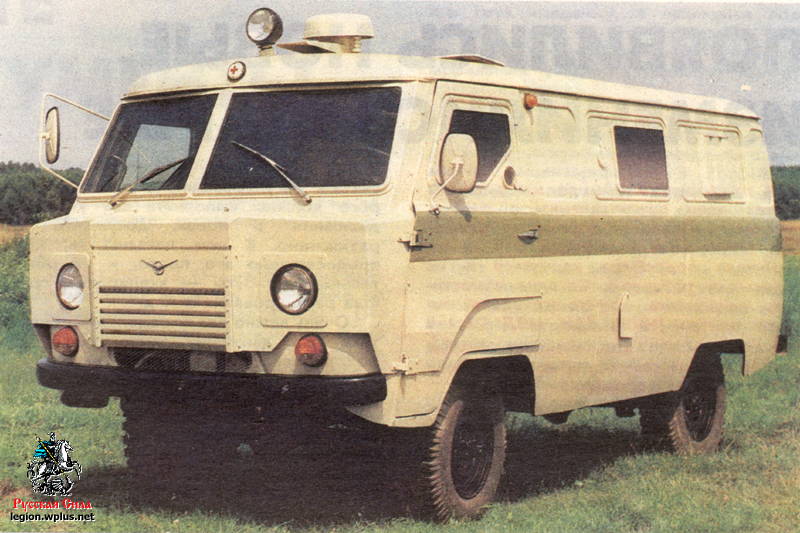

69 KB (color, front view [UAZ-3963 "Konalu" armored] [19/4])

16 KB (color, side view [UAZ-3909] [63])

10 KB (color, front view [UAZ-3909] [7/10])

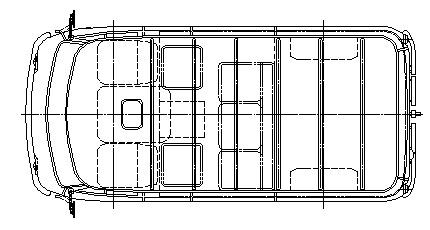

5 KB (b/w, top view, diagram [UAZ-3909] [63])

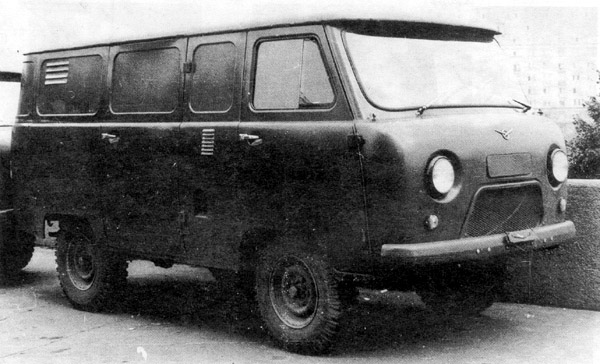

70 KB (b/w, side view [UAZ-3541] [3])

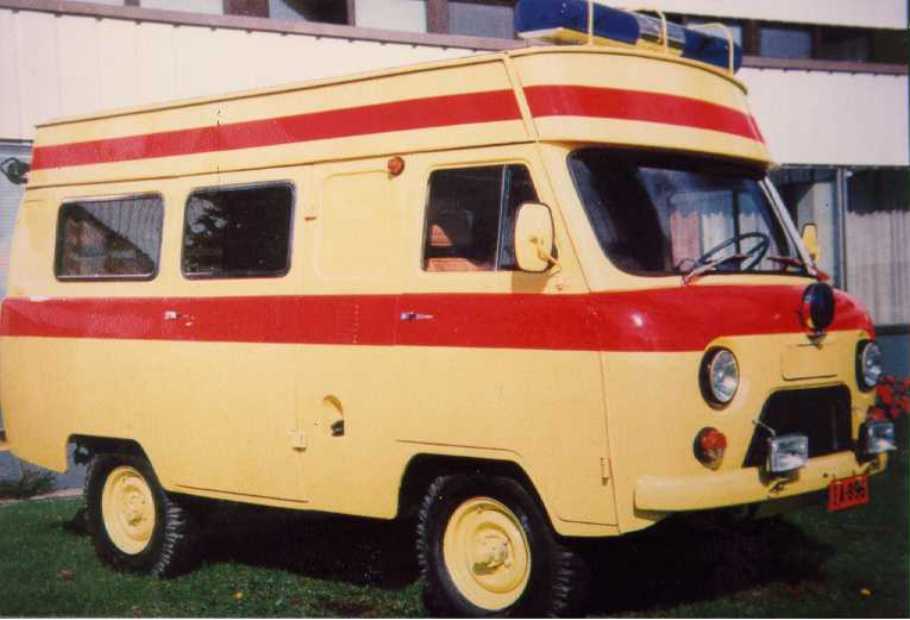

45 KB (color, side view [UAZ-Tamro ambulance] [42])

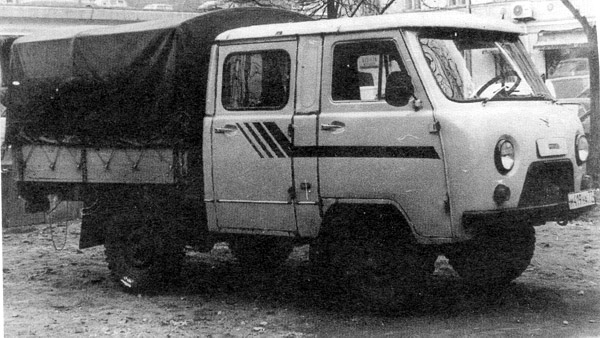

 77 KB (b/w, side view [UAZ-39094] [3])

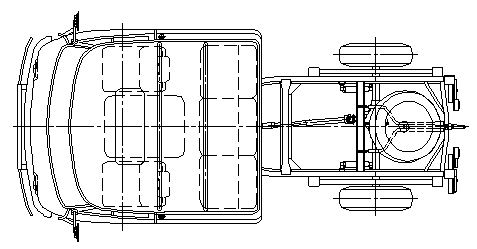

6 KB (b/w, top view, diagram [UAZ-39094] [63])

8 KB (color, side view [UAZ-39094] [7/10])

28 KB (color, front view [UAZ-39094] [63])

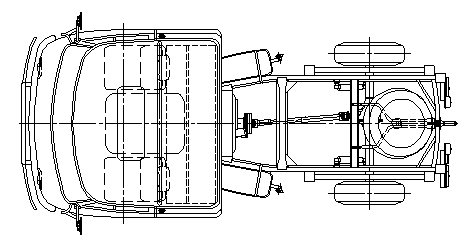

6 KB (b/w, top view, diagram [UAZ-39095] [63])

40 KB (color, side view [UAZ-39095] [63])

All of these [UAZ-3741, UAZ-2206, UAZ-3962, UAZ-3909] have UMZ-4178.10 engine (see above for details), fully metallic body with 3 side doors and one rear double-door. These vans differ only in the number of seats available and their net and full mass (they are given here with a comma in respective order) [UAZ-3741 see above; UAZ-2206: 11 seats, 1855 kg [4,081 lbs], 2,780 [6,116]; UAZ-3962: 7-9 seats, 1,825 [4,015], 2,500 [5,500]; UAZ-3909: 7 seats + 475 kg [1,045 lbs] or 2 seats + 850 kg [1,870 lbs], 1,820 [4,004], 2,820 [6,204]]

Also available are [UAZ-37419, UAZ-22069, UAZ-39629, UAZ-39099], which have UMZ-4218.10 engine (2.89L, 98 hp [73 kW] @ 4,000 rpm, 20.5 N·m [133 lb·ft] @ 2,200-2,500 rpm, 4I cyl., 4-tact, ohv, carb.) and 117 km/h [73 mph] maximum speed. These vans are also fully metallic body with 3 side doors and one rear double-door. The differences between these models are the same as described in previous paragraph for models with UMZ-4178.10 engine.

These vans (capable of 30 degree climbs and up to 0.7 m deep river fording) replace the previous generation of UAZ-450, UAZ-451, UAZ-452.
