| Model | UAZ-33039 (UAZ-33036)* | UAZ-2923 |
| Seating | 2 | 2 |
| Net-weight, kg [lb] | 1,650 [3,630] (1,750 [3,850]) | 1,750 [3,850] |
| Full load weight, kg [lb] | 2,650 [5,830] (3,050 [6,710]) | 2,700 [5,950] |
| Load weight, kg [lb] | 1000 [2,200] (1,150 [2,530]) | 800 [1,760] |
| Total trailer weight, kg [lb] | - | - |
| Length, mm [in.] | 4460 [176] (4540 [179]) | 4460 [176]? |
| Width, mm [in.] | 1965 [77] (1974 [78]) | 1965 [77]? |
| Height, mm [in.] | 2070 [81] (2340 [92]) | ? |
| Base, mm [in.] | 2300 [91] (2550 [100]) | 2300 [91] |
| Minimal clearance, mm [in.] | 220 [8.7] (195 [7.7]) | 195 [7.7]? |
| Minimal radius of turn, m [yards] | - | - |
| Maximum speed, km/h [mi/h] | 110 [68] w/out tent (100 [62]) | 100 [62] |
| Maximum horsepower, hp [kW] | 98 [73] @ 4,000 rpm | 92 [69] @ 4,000 rpm |
| Maximum torque, N·m [lb·ft] | 20.5 [133] @ 2,200-2,500 rpm | 17.5 [114] @ 2,200-2,500 rpm |
| Engine displacement, liters [cc] | 2.89 [2,890] | 2.45 [2,445] |
| Compression ratio | - | 7.5:1 |
| Gear ratios | I-4.124/II-2.641/III-1.580/IV-1.000/R-5.224 | |
| Main gear ratio | 4.625 | 4.625 |
| Transfer box ratio | 1.94 and 1.00 | - |
| Mileage, liters/100km [mi/gal] | 17.3 [13.6] | 17.5 [13.4] |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - | - |
| Breaking distance, m [yards] | - | - |
| Fuel tank capacity, liters [gal] | 56 X 2 [14.8 X 2] | |
| Years of production | ? | ? |
| Type of engine | UMZ-4218.10, 4I cyl., 4-tact, ohv, carb.** | UMZ-4178.10, 4I cyl., 4-tact, ohv, carb. |
| Bore/Stroke, mm [in.] | - | - |
| Wheel formula | 4 X 4 | 4 X 4 |
| Pictures | 16 KB (color, side view [UAZ-3303]

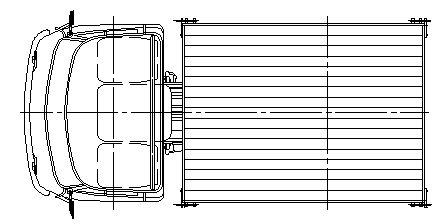

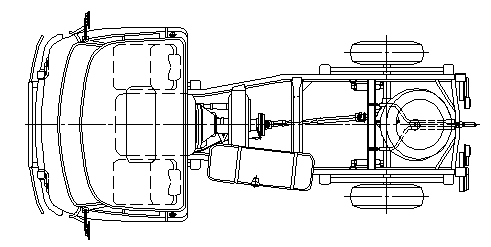

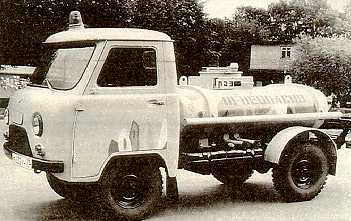

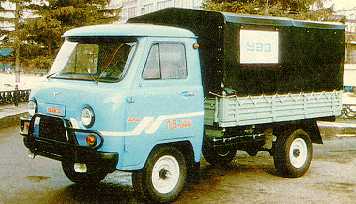

[63]) 8 KB (color, side view [UAZ-33035] [7/10]) 16 KB (color, side view [UAZ-33036] [7/10]) 41 KB (color, side view [UAZ-33036] [63]) 23 KB (color, front view, [3303 UAZ of America] [62]) 14 KB (color, front view [UAZ-33035] [63?]) 4 KB (b/w, top view, diagram [UAZ-3303] [63]) 6 KB (b/w, top view, diagram [UAZ-33036] [63]) 19 KB (b/w, side view [UAZ-3303 cistern] [7/10]) |

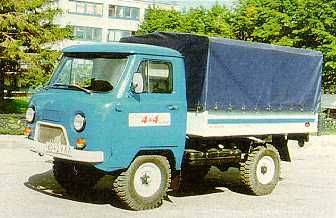

17 KB (color, side view [UAZ-2923] [63/10]) |
* (parenthesis) indicate technical parameters of UAZ-33036 that are different from those of UAZ-33039.
** UAZ-33039, UAZ-33036, and UAZ-2923 have the 98 h.p. UMZ-4218.10 engine. UAZ-3303 and UAZ-2746 have the 92 h.p. UMZ-4178.10 engine.

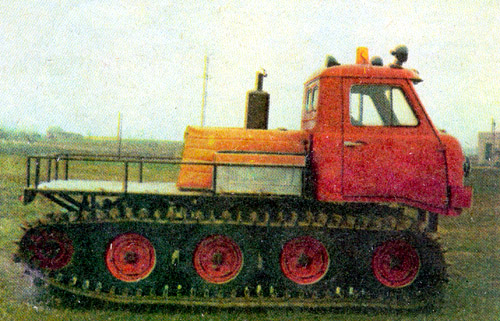

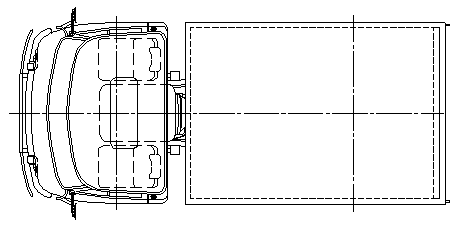

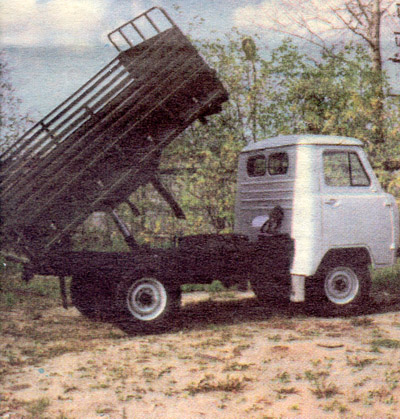

UAZ-2746 "Termos" [4 KB (b/w, top view, diagram [UAZ-2746] [63]), 35 KB (color, side view [UAZ-2746] [63])] (iso-thermal truck) is based on long base UAZ-33036. However, it has the less powerful 2.445L UMZ-4178.10 engine. With a carcass and tent, the height of UAZ-3303 increases to 2460 mm [97 in]. The 220 mm clearance 4 X 4 trucks can climb ascents of up to 30 degrees and cross rivers of up to 0.7 meters deep,while those with 195 mm clearance can only cross 0.5 meter rivers. There is also a dump-truck version, called UAZ-1501 [88 KB (color, side view [UAZ-1501] [13]). Also exists UAZ-Lvov on caterpillar tracks [95 KB (color, side view [UAZ-Lvov] [50]).
These trucks replace the previous generation of
UAZ-450, UAZ-451,
UAZ-452.
