| Model | RAF-10 |
| Seating | 9seats |
| Net-weight, kg [lb] | 1,640 [3,608] |
| Full load weight, kg [lb] | 2,270 [4,994] |
| Load weight, kg [lb] | - |
| Total trailer weight, kg [lb] | - |
| Length, mm [in.] | 4940 [194] |
| Width, mm [in.] | 1810 [71] |
| Height, mm [in.] | 1940 [76] |
| Base, mm [in.] | 2700 [106] |
| Minimal clearance, mm [in.] | 190 [7.5] |
| Minimal radius of turn, m [yards] | - |
| Maximum speed, km/h [mi/h] | 90 [56] |
| Maximum horsepower, hp [kW] | 70 [52] @ 4,000 rpm |
| Maximum torque, N·m [lb·ft] | 17 [110] |
| Engine displacement, liters [cc] | 2.445 [2,445] |
| Compression ratio | 6.6:1 |
| Gear ratios | 3 speeds |
| Main gear ratio | - |
| Mileage, liters/100km [mi/gal] | 18.5 [12.7] |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - |
| Breaking distance, m [yards] | - |
| Fuel tank capacity, liters [gal] | 60 [16] (A-72) |
| Years of production | 1957-1959 |
| Type of engine | M-21V, 4 cyl., carb., 4-tact, ohv |
| Bore/Stroke, mm [in.] | 92 [3.62]/ 92 [3.62] |
| Wheel formula | 4 X 2 |

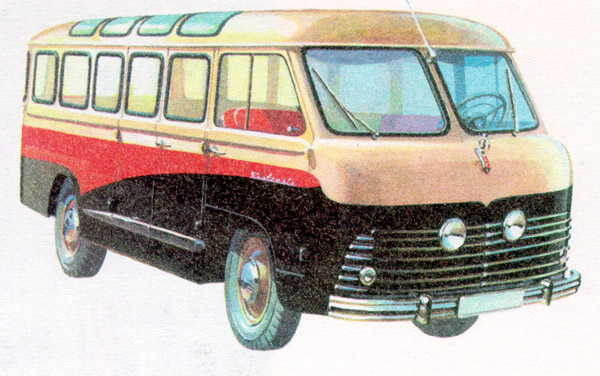

| Pictures | 81 KB (color, side view,

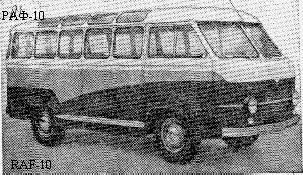

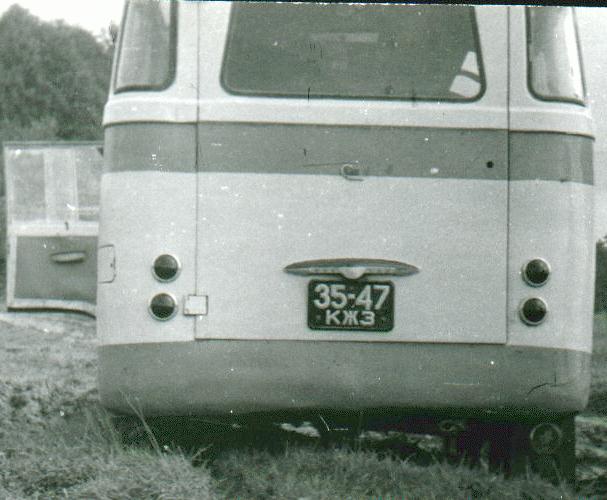

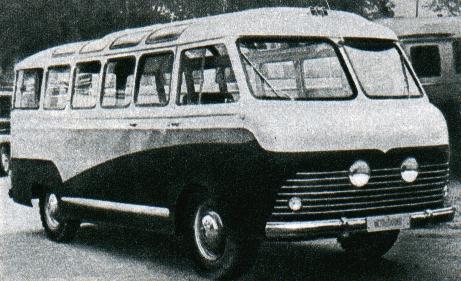

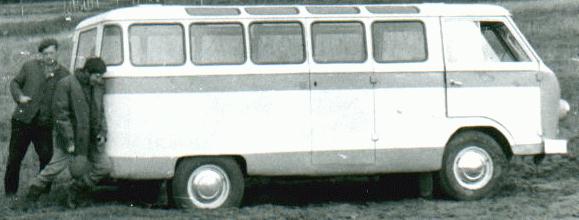

drawing [106]) 21 KB (b/w, side view [28]) 45 KB (b/w, rear view [28]) 2 KB (b/w, front view [28]) 69 KB (b/w, side view [1]) 34 KB (b/w, 1957 prototype, side view [28]) 90 KB (color, 1957 prototype, drawing, side view [3]) |
Main model was produced 1957-1959 and had many components,
including the engine, from
GAZ-M-21.
