PAZ-672, PAZ-3201

SovAvto Website.



Model  PAZ-672
Seating 23 seats/ 45 total
Net-weight, kg 4,535
Full load weight, kg 8,060
Load weight, kg -
Total trailer weight, kg -
Length, mm 7150
Width, mm 2440
Height, mm 2952
Base, mm 3600
Minimal clearance, mm 280
Minimal radius of turn, m -
Maximum speed, km/h 80
Maximum horsepower, h.p. 115 @ 3,200 rpm
Engine capacity, liters 4.25
Gear ratios -
Main gear ratio -
Mileage, liters/100km 20.5
Breaking distance, m -
Fuel tank capacity, liters 105 (A-72)
Years of production 1968-1989
Type of engine ZMZ-672, V8, carb., 4-tact, ohv
Compression ratio 6.7:1
Wheel formula 4 X 2
Pictures  see below

PAZ-672 was the basic model which stayed in production from 1968-1989.

Model Use Specification Photos

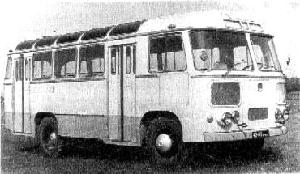

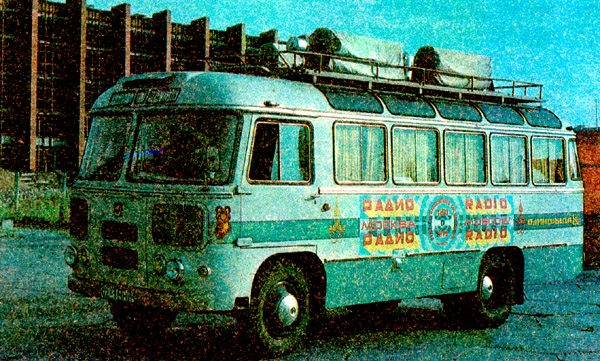

PAZ-672 standard see in above table 197 KB (color, side view, reporters' bus [3]), 14 KB (b/w, side view [105]), 89 KB (color, side view, drawing [106]), 27 KB (b/w, front view [114])

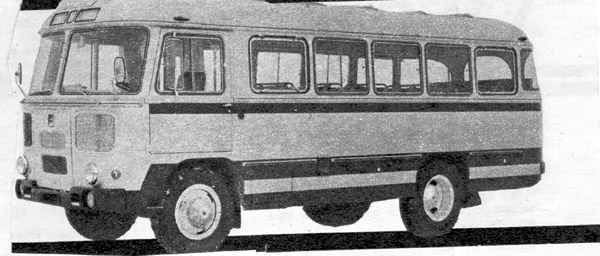

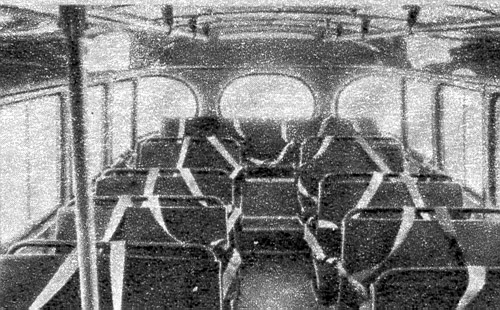

PAZ-672G mountainous regions 2 fuel tanks (each 105L), seat belts attached to the benches, power steering and additional brakes 60 KB (b/w, side view [4]), 86 KB (b/w, interior view w/ seat belts [4])
PAZ-672U tropical climate - -
PAZ-672S northern climate - -
PAZ-3202S northern climate - -

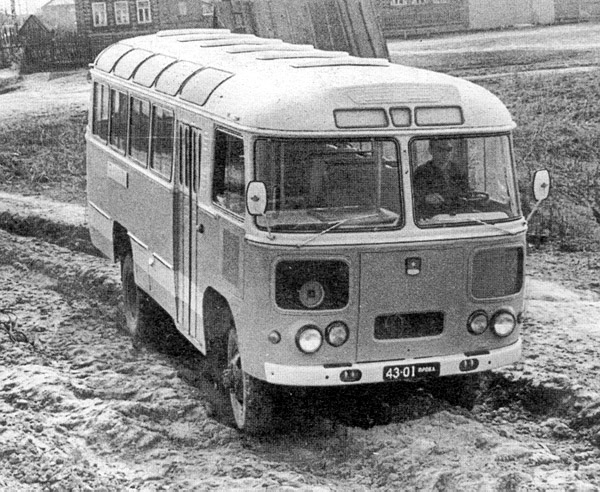

PAZ-3201 rough terrain (1972-1989)?, 4 X 4, mass of 4,860 kg, seating for 26 people 132 KB (b/w, front view [3])

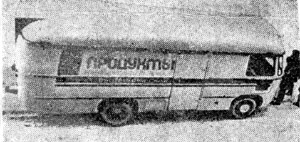

PAZ-3742 cargo bus (1981-1989)?, mass=4,000 kg, load 2,500 kg, length=7320 mm 25 KB (b/w, side view, food service bus [16])



Page created on Sunday, March 14, 1999. Page last updated on Tuesday, February 26, 2002 10:46:30 PM EST.
