| Model | PAZ-3205 [PAZ-320550]* | PAZ-3206 |
| Seating | 25 seats / 41 total [22 seats] | 25 |
| Net-weight, kg | 4720 | 5165 |
| Full load weight, kg | 7705 [8300] | 7010 |
| Load weight, kg | - | - |
| Total trailer weight, kg | - | - |
| Width of passenger door, mm | 726 | 726 |
| Height of the interior, mm | 1965 | 1965 |
| Length, mm | 7000 | 7000 |
| Width, mm | 2500 | 2520 |
| Height, mm | 2960 [3060] | 3105 |
| Base, mm | 3600 | 3600 |
| Minimal clearance, mm | 264 | 264 |
| Minimal radius of turn, m | - | - |
| Maximum speed, km/h | 90 | 90 |
| Maximum horsepower, h.p. | 130 | 130 |
| Engine capacity, liters | 4.67 | 4.67 |
| Gear ratios | - | - |
| Main gear ratio | - | - |
| Mileage, liters/100km | 26.5 | 26.5 |
| Breaking distance, m | - | - |
| Fuel tank capacity, liters | 105 | 105 |
| Years of production | 1989-present | 1989-present |
| Type of engine | ZMZ-5234.10, V8, carb. | ZMZ-5234.10, V8, carb. |
| Wheel formula | 4 X 2 | 4 X 4 |

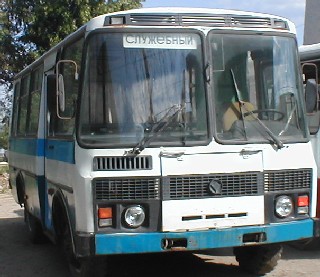

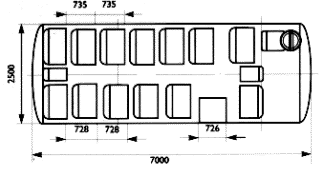

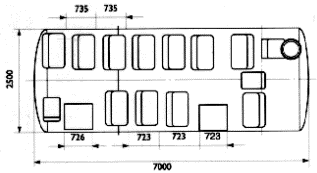

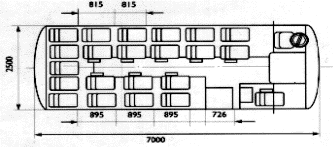

| Pictures | 21 KB (color, side view [80]) 9 KB (b/w, dimensions [80]) 8 KB (color, front view [80]) 11 KB (color, side view [80]) 3 KB (color, side view [80]) 34 KB (color, front view [PAZ-3205R] [155]) 19 KB (color, side view [PAZ-32051] [80]) 9 KB (b/w, dimensions [PAZ-32051] [80]) 8 KB (color, front view [PAZ-32051] [80]) 23 KB (color, side view [PAZ-320550] [80])13 KB (b/w, dimensions [PAZ-320550] [80]) |

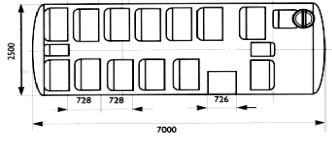

23 KB (color, side view [80]) 8 KB (b/w, dimensions [80]) 7 KB (color, front view [80]) 10 KB (color, side view [80]) |
* in [brackets] is data for PAZ-320550 that is different from PAZ-3205.

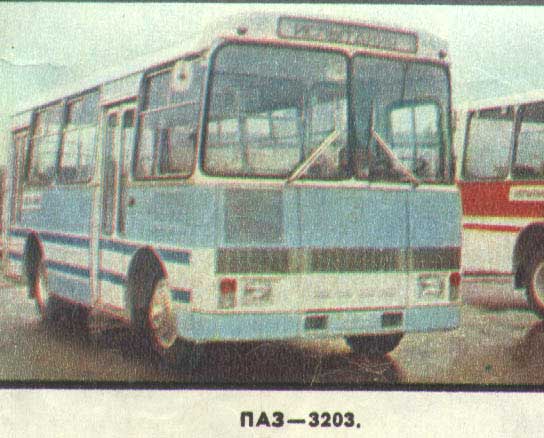

Older model (36 KB color, front view [PAZ-3203 ] [4]
PAZ-3205 (class II) bus is intended for transportation of passengers between cities. Buses may be equipped with diesel engines of Russian [MMZ-D-245.7] as well as western companies [HINO W04 CT].
PAZ-320550 (class III) bus is intended for long distance transportation. Buses may also be equipped with different diesel engines.
PAZ-3206 (class II) bus is intended for short distance or inter-city transportation.1033/770 Buses may be equipped with diesel engines of Russian [MMZ-D-245.7 w/ 122 h.p.] as well as western companies [HINO W04 CT w/ 138 h.p.]. It has two steps and one passenger double door which is 770 mm wide. The floor of the interior is 1033 mm above the road level.
