| Model | MAZ-500 | MAZ-504 |
| Seating | 3 | |
| Net-weight, kg [lb] | 6,500 [14,300] | 6,000 [13,200] |
| Full load weight, kg [lb] | 14,225 [31,295] | 13,925 [30,635] |
| Load weight, kg [lb] | 7,500 [16,500] | - |
| Total trailer weight, kg | 12,000 [26,400] | 18,000 [39,600] |
| Length, mm [in.] | 7330 [288] | 5555 [219] |
| Width, mm [in.] | 2650 [104] | |
| Height, mm [in.] | 2640 [104] | |
| Base, mm [in.] | 3850 [152] | 3200 [126] |
| Minimal clearance, mm [in.] | 295 [11.6] (under front axle) | |
| Minimal radius of turn, m [yards] | 9.0 [9.9] | 7.5 [8.25] |
| Maximum speed, km/h [mi/h] | 75 [47] | |
| Maximum horsepower, hp [kW] | 180 [134] (@ 2,100 rpm) | |
| Engine capacity, liters [cm3] | 11.15 [11,500] | |
| Compression ratio | 16.5:1 | |
| Gear ratios | 6.17/3.40/1.79/1.00/0.78/R-6.69 | |
| Main gear ratio | - | |
| Mileage, liters/100km [mi/gal] | 23 [10.2] | |
| Breaking distance, m | - | |
| Fuel tank capacity, liters [gal] | 200 [53] | 175 X 2 [46 X 2] |
| Years of production | 1965-late 1980s | |
| Type of engine | YaMZ-236, 4-tact, V6 diesel, ohv | |
| Wheel formula | 4 X 2 | |

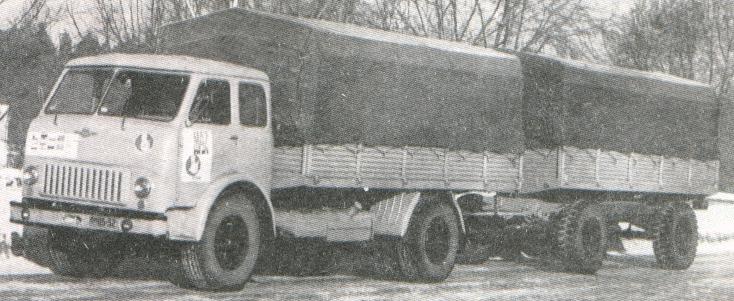

| Pictures | 56 KB (b/w, side view, with

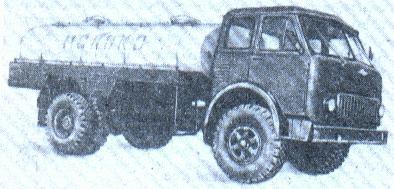

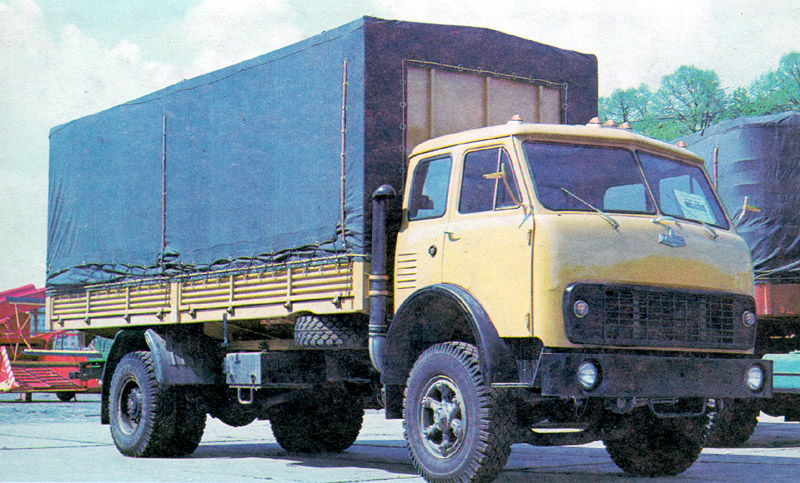

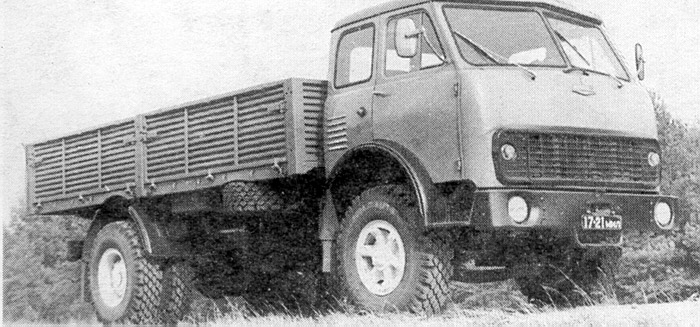

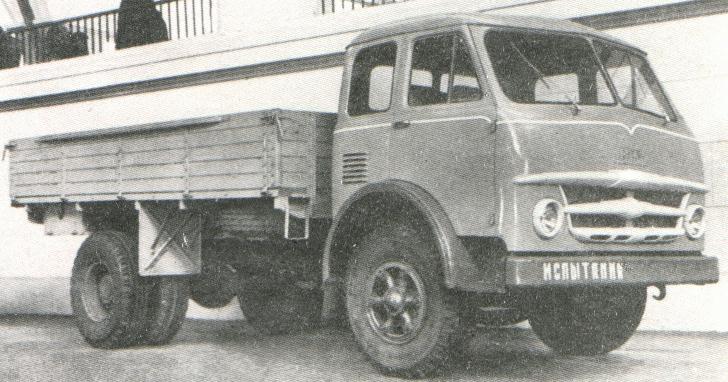

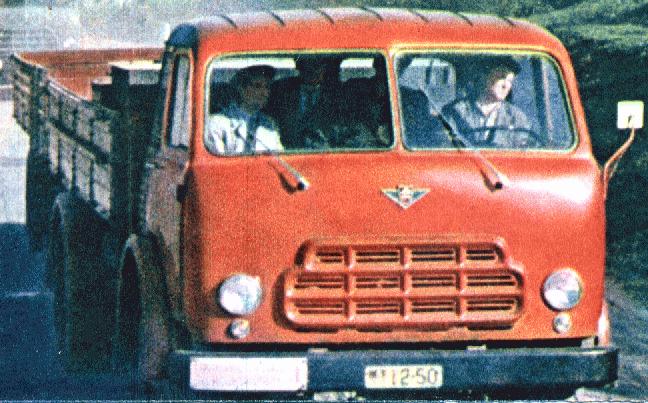

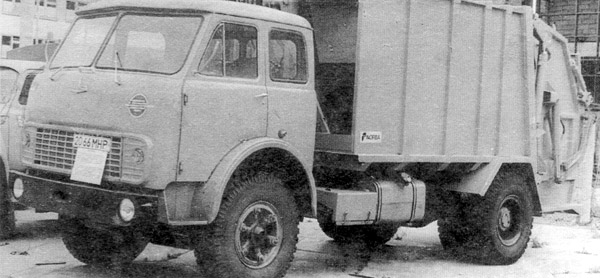

trailer, 1965 model [MAZ-500] [3]) 20 KB (b/w, side view, milk cistern [MAZ-500] [92]) 63 KB (b/w, front view, 1959 prototype [rare radiator] [3]) 68 KB (color, 1961 prototype [5]) 21 KB (b/w, side view [MAZ-500] [1]) 77 KB (color, front view, drawing [MAZ-500A] [106]) 56 KB (b/w, side veiw, garbage truck [MAZ-5335] [3]) 100 KB (b/w, side veiw, metal platform [MAZ-5335] [3]) 185 KB (color, side veiw, metal platform w/ tent [MAZ-5335] [3]) 87 KB (color, side view, milk cistern w/ cistern trailer [3]) |

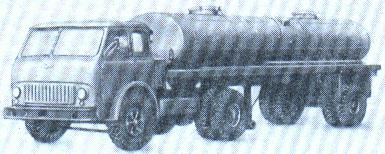

18 KB (b/w, front view w/

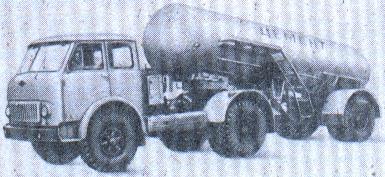

cistern semi-trailer [92]) 35 KB (b/w, front view [1]) 21 KB (b/w, side view w/ cement cistern semi-trailer [92]) 46 KB (color, side view [4]) 56 KB (color, side view, drawing, MAZ-504A [106]) |
These models have made the name for the MAZ company. In the early 1990s however a new production line began and the MAZes got a more modern design. All MAZes on this page are equipped with power steering. MAZ-500 has a 30 degree approach angle and a 28 degree departure angle.
| Model | Special Characteristics | Years of Production |
Pictures |

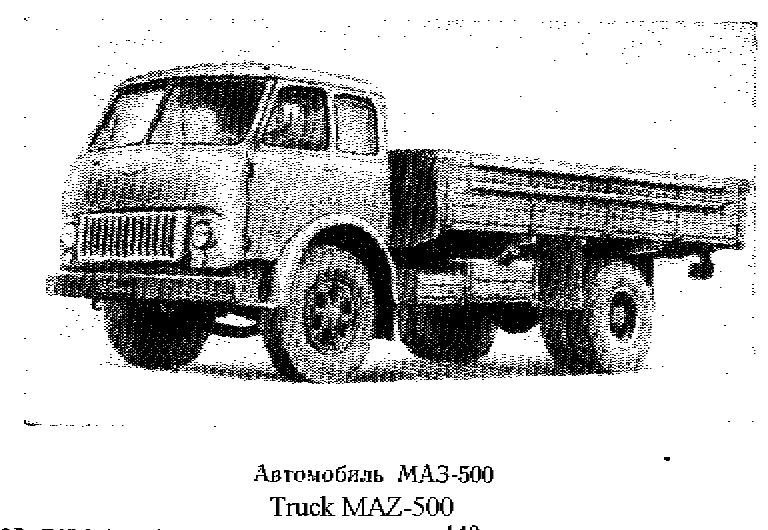

| MAZ-500 | regular wooden board platform truck | 1965-1970 | see above table |
| MAZ-500A | modification of MAZ-500 (wooden board platform truck) (radiator grill modified) | 1970-1977 | see above table |
| MAZ-5335 | modification of MAZ-500A (wooden board platform truck) | 1977-late 1980's | see above table |

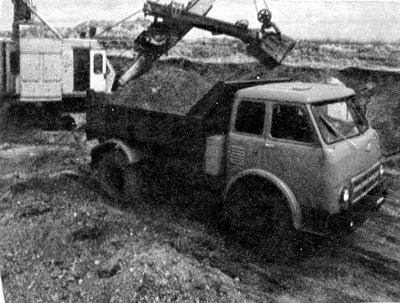

| MAZ-503 | 4 X 2 dump-truck, load mass 7,000 kg | 1965-1970-1977 | (115 KB color, front view [3]) (55 KB b/w, side view [4]), (86 KB color, side view, drawing [106]) |

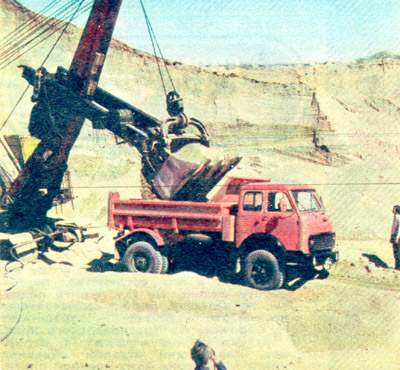

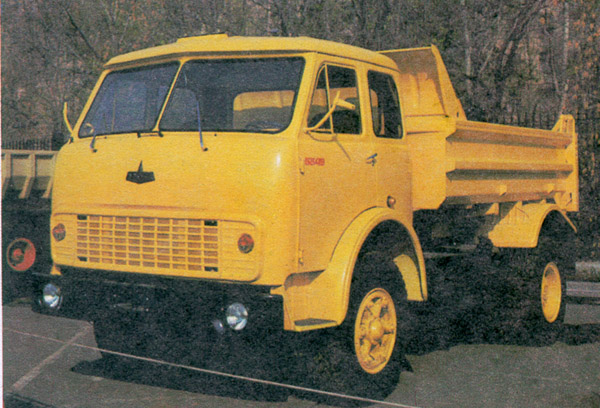

| MAZ-5549 | 4 X 2 dump-truck | 1977-late 1980's? | (82 KB color, side view [4]) (109 KB color, front view [3]) |

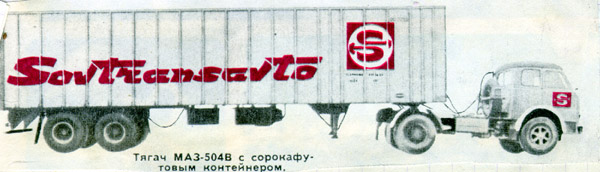

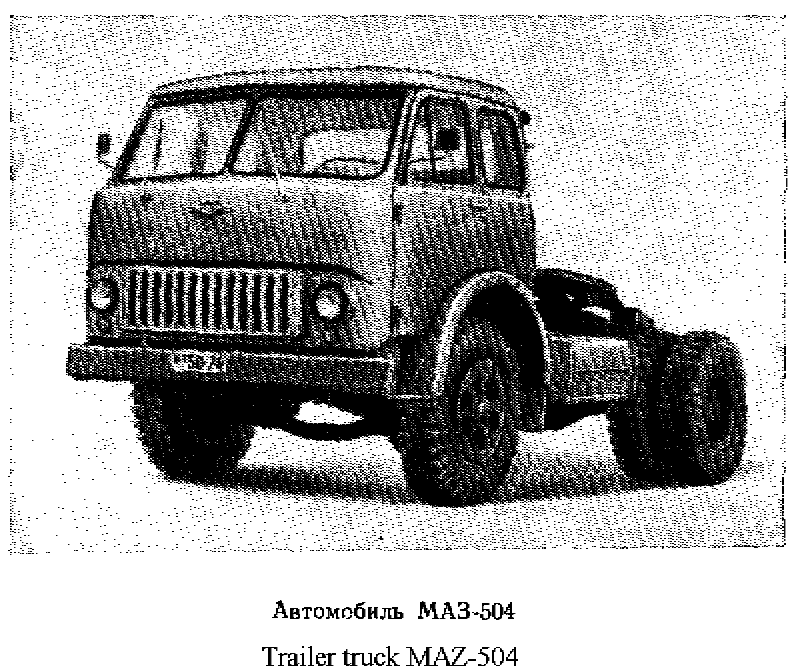

| MAZ-504 | 4 X 2 tractor trailer (used with semi-trailers) | 1965-1970 | see above table |
| MAZ-504B | 4 X 2 tractor trailer for work with dump-trailers (same info as MAZ-504) | - | - |

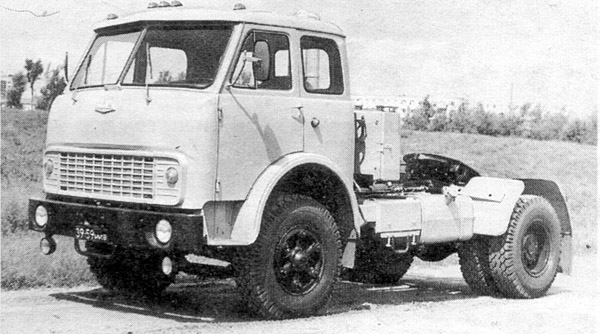

| MAZ-514 | 4 X 2 tractor trailer (used with semi-trailers) | 1970-1977? | (70 KB b/w, side view [3]) |

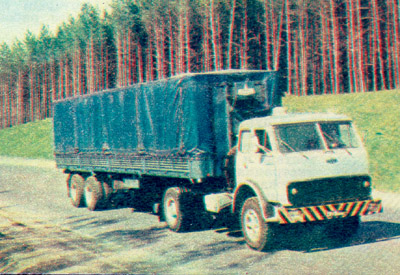

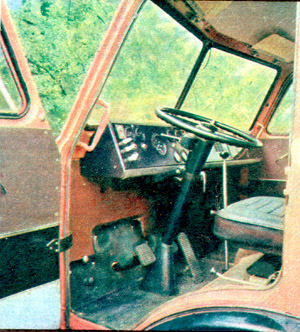

| MAZ-5429 | 4 X 2 tractor trailer (used with semi-trailers) | 1977-late 1980's | (78 KB color, front view, on highway [4]) (69 KB color, cabin interior [4]) |

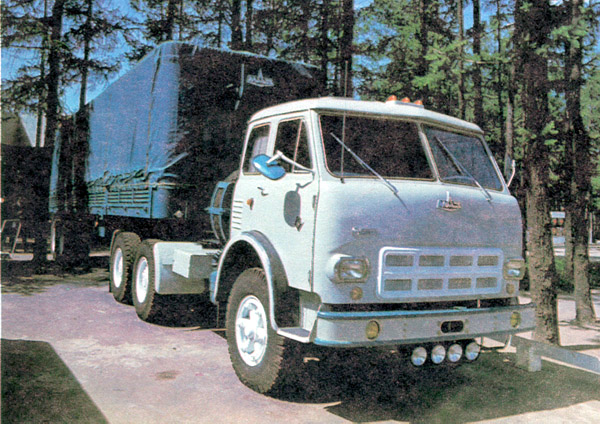

| MAZ-515 | 6 X ? tractor trailer | ? | (130 KB color, front view [3]) |

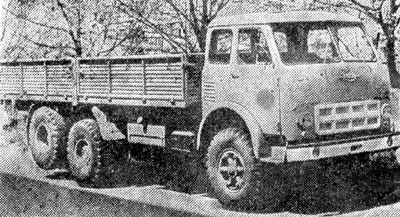

| MAZ-514B | 6 X ? board platform | ? | (53 KB b/w, side view [16]) |
| MAZ-516 | 6 X 2 flatbed truck | 1968-? | (61 KB color, side view, drawing [106]) |
| MAZ-509 | 4 X 4 timber tractor trailer | 1966-1969 | - |

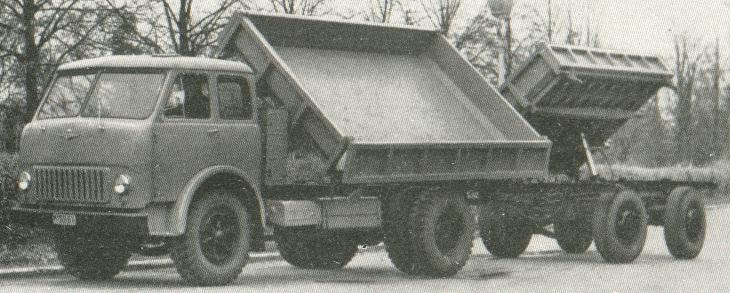

| MAZ-511 | 4 X 2 dump truck with side unloading | 1966 (experimental) | (54 KB b/w, side view [3]) |

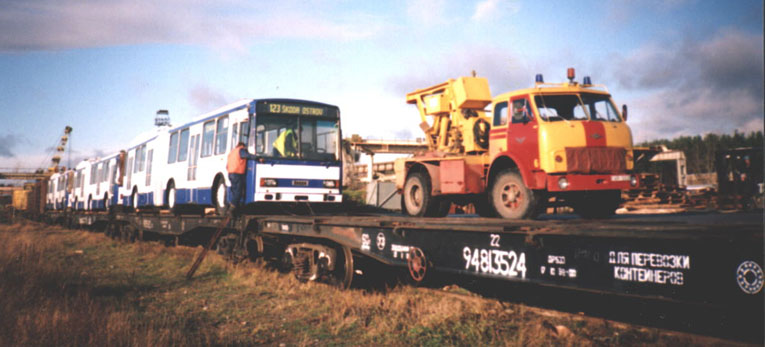

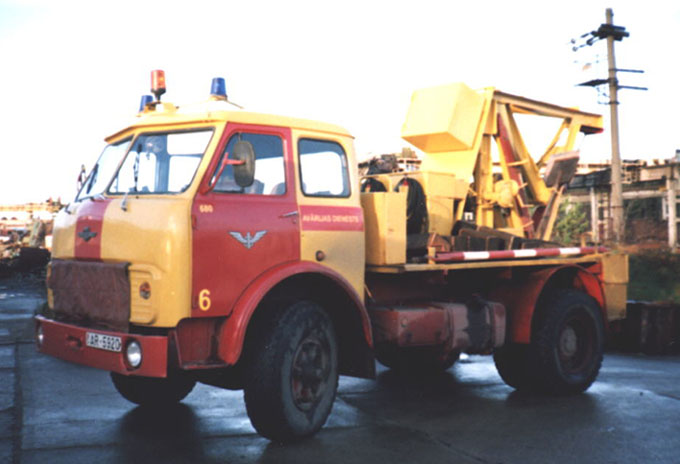

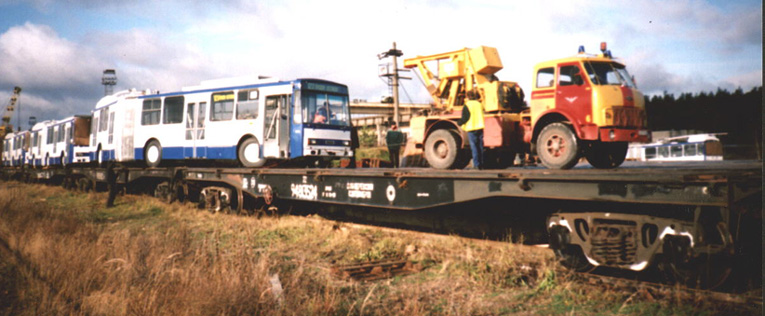

| MAZ-??? | 4 X 2 gas line repair truck | ? | (113 KB color, side view, on train [7]) (66 KB color, front view, on train [7]) (58 KB color, side view [7]) |
