| Model | LAZ-698 (LAZ-696)* |
| Seating | 26 seats / 105 total (34 seats / 84 total) |
| Net-weight, kg [lb] | 7,768 [17,090] (8,260 [18,172]) |
| Full load weight, kg [lb] | 12,970 [28,534] (14,210 [31,262]) |
| Load weight, kg [lb] | - |
| Total trailer weight, kg [lb] | - |
| Length, mm [in.] | 9760 [384] (10,980 [432]) |
| Width, mm [in.] | 2500 [98] |
| Height, mm [in.] | 2930 [115] |
| Base, mm [in.] | 4360 [172] (5760 [227]) |
| Minimal clearance, mm [in.] | 170 [6.7] |
| Minimal radius of turn, m [yards] | - |
| Maximum speed, km/h [mi/h] | 78 [48] |
| Maximum horsepower, hp [kW] | 180 [132] @ 3,200 rpm |
| Maximum torque, N·m [lb·ft] | - |
| Engine displacement, liters [cc] | 7.0 [7,000] |
| Compression ratio | 6.5:1 |
| Gear ratios | automatic |
| Main gear ratio | - |
| Mileage, liters/100km [mi/gal] | 55 [4.3] (38 [6.2]) |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - |
| Breaking distance, m [yards] | - |
| Fuel tank capacity, liters [gal] | - |
| Years of production | ? |
| Type of engine | ZIL-375, carb., 4-tact, V8, ohv |
| Bore/Stroke, mm [in.] | - |
| Wheel formula | 4 X 2 |

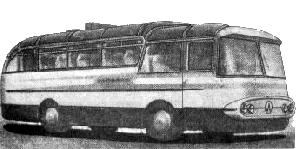

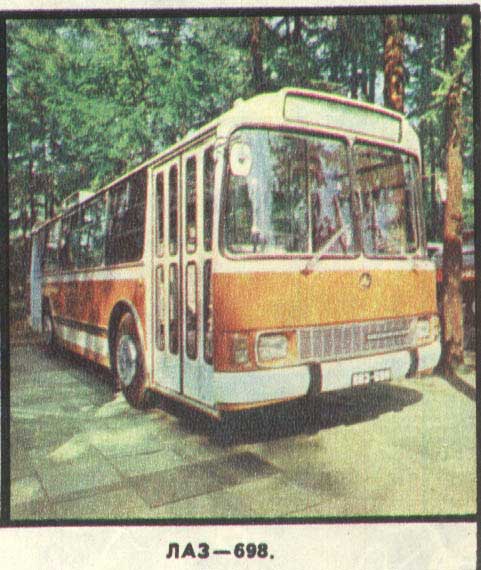

| Pictures | 47 KB (color, front view
[4])
61 KB (color, side view, drawing [106]) 11 KB (b/w, side view [104]) 78 KB (color, side view, drawing [106]) |
*technical parameters of LAZ-696 that are different from thsoe of LAZ-698 are given in (parenthesis).
This bus was not abundant.
