Model YaG-6 (YaS-3)*
Seating 3 (2)
Net-weight, kg [lb] 4,930 [10,846] (5,820 [12,804])
Full load weight, kg [lb] 10,155 [22,341] (9,970 [21,934])
Load weight, kg [lb] 5,000 [11,000] (4,000 [8,800])
Total trailer weight, kg [lb] -
Length, mm [in.] 6500 [256] (6240 [246])
Width, mm [in.] 2500 [98] (2410 [95])
Height, mm [in.] 2550 [100]
Base, mm [in.] 4200 [165]
Minimal clearance, mm [in.] 300 [11.8]
Minimal radius of turn, m [yards] 9 [9.9]
Maximum speed, km/h [mi/h] 40 [25]
Maximum horsepower, hp [kW] 73 [54] @ 2,300 rpm
Maximum torque, Nm [lbft] 28.5 [185]
Engine displacement, liters [cc] 5.55 [5,555]
Compression ratio 4.6:1
Gear ratios I-6.600, II-3.740, III-1.840, IV-1.000, R-7.630
Main gear ratio 10.90
Mileage, liters/100km [mi/gal] 43.5 [5.4] (45.5 [5.2])
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] 177 [47]
Years of production 1936-1942 (1936-1941)
Type of engine ZIS-5, 6 cyl., carb., 4-tact, sv
Bore/Stroke, mm [in.] 101.6 [4.00]/ 114.3 [4.50]
Wheel formula 4 X 2
Pictures  68 KB (color, front view, drawing [106])

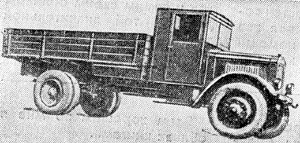

56 KB (b/w, side view [1])

29 KB (b/w, side view [16])

80 KB (color, front view, drawing [YaS-3] [106])

4 KB (b/w, front view [YaS-3] [3])

58 KB (b/w, side view [YaS-3] [1])

* parameters for YaS-3 that are different from those of YaG-6 are given in (parenthesis).

YaG-6 stands for Yaroslavl Gruzovik (truck) and YaS-3 stands for Yaroslavl Samosval (dump-truck).
