YaG-4, YaS-1

SovAvto Website.



Model  YaG-4
Seating 3
Net-weight, kg [lb] 4,750 [10,450]
Full load weight, kg [lb] 9,975 [21,945]
Load weight, kg [lb] 5,000 [11,000] (3,500 [7,700] on unpaved roads)
Total trailer weight, kg [lb] -
Length, mm [in.] -
Width, mm [in.] -
Height, mm [in.] -
Base, mm [in.] 4200 [165]
Minimal clearance, mm [in.] -
Minimal radius of turn, m [yards] -
Maximum speed, km/h [mi/h] 40 [25]
Maximum horsepower, hp [kW] 73 [54] @ 2,400 rpm
Maximum torque, N·m [lb·ft] 28.5 [185]
Engine displacement, liters [cc] 5.55 [5,555]
Compression ratio 4.6:1
Gear ratios 4 speeds
Main gear ratio -
Mileage, liters/100km [mi/gal] 43.5 [5.4]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] -
Years of production 1934-1936
Type of engine 6 cyl., carb., 4-tact, sv
Bore/Stroke, mm [in.] 101.6 [4.00]/ 114.3 [4.50]
Wheel formula 4 X 2
Pictures 50 KB (color, side view, drawing [106])

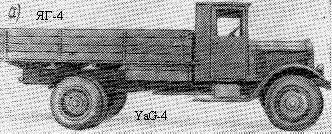

57 KB (b/w, side view [1])

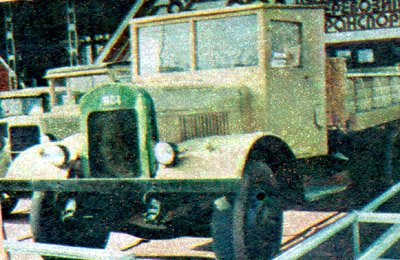

79 KB (color, front view [YaS-1] [4])

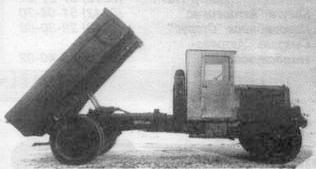

9 KB (b/w, side view [YaS-1] [7])

YaG-4 stands for Yaroslavl Gruzovik (truck) and YaS-1 stands for Yaroslavl Samosval (dump-truck).
