YaG-12

SovAvto Website.



Model YaG-12
Seating 3
Net-weight, kg [lb] -
Full load weight, kg [lb] -
Load weight, kg [lb] 12,000 [26,400]
Total trailer weight, kg [lb] -
Length, mm [in.] -
Width, mm [in.] -
Height, mm [in.] -
Base, mm [in.] -
Minimal clearance, mm [in.] -
Minimal radius of turn, m [yards] -
Maximum speed, km/h [mi/h] 40 [25]
Maximum horsepower, hp [kW] 93 [69]
Maximum torque, Nm [lbft] 38 [247]
Engine displacement, liters [cc] 7.02 [7,020]
Compression ratio 4.6:1
Gear ratios -
Main gear ratio -
Mileage, liters/100km [mi/gal] 52 [4.5]
Acceleration time from 0-100 km/h [62 mi/h], seconds -
Breaking distance, m [yards] -
Fuel tank capacity, liters [gal] -
Years of production 1932-1941
Type of engine 6 cyl., carb., 4-tact, sv
Bore/Stroke, mm [in.] 111 [4.37]/ 120.6 [4.75]
Wheel formula 8 X 4

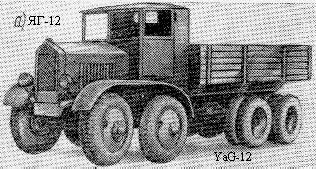

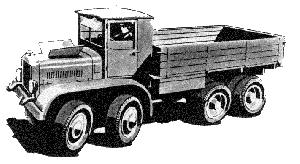

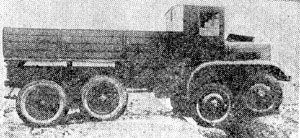

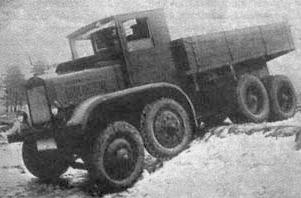

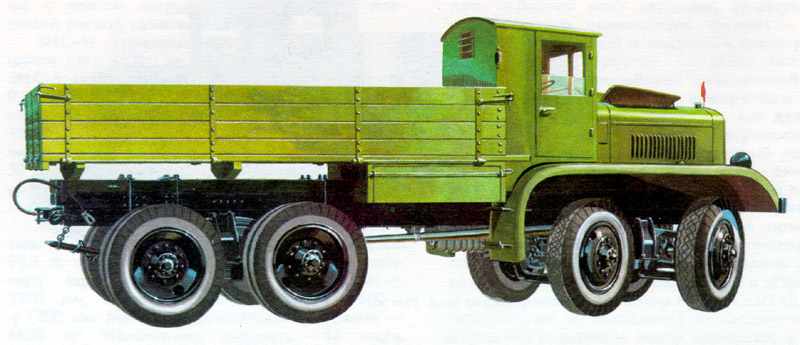

Pictures 67 KB (color, side view, drawing [106])

12 KB (b/w, side view [7])

106 KB (color, side view [3])

27 KB (b/w, side view [16])

68 KB (b/w, side view [1])

14 KB (b/w, side view [103])
