| Model | YaG-10 |
| Seating | 3 |
| Net-weight, kg [lb] | 5,430 [11,946] |
| Full load weight, kg [lb] | 13,655 [30,041] |
| Load weight, kg [lb] | 8,000 [17,600] |
| Total trailer weight, kg [lb] | - |
| Length, mm [in.] | - |
| Width, mm [in.] | - |
| Height, mm [in.] | - |
| Base, mm [in.] | - |
| Minimal clearance, mm [in.] | - |
| Minimal radius of turn, m [yards] | - |
| Maximum speed, km/h [mi/h] | 40 [25] |
| Maximum horsepower, hp [kW] | 60 [45] |
| Maximum torque, N·m [lb·ft] | 25 [162] |
| Engine displacement, liters [cc] | 4.88 [4,880] |
| Compression ratio | 4.6:1 |
| Gear ratios | - |
| Main gear ratio | - |
| Mileage, liters/100km [mi/gal] | 43 [5.4] |
| Acceleration time from 0-100 km/h [62 mi/h], seconds | - |
| Breaking distance, m [yards] | - |
| Fuel tank capacity, liters [gal] | - |
| Years of production | 1932-1934 |
| Type of engine | 6 cyl., carb., 4-tact, sv |
| Bore/Stroke, mm [in.] | 95.25 [3.75]/ 114.3 [4.50] |
| Wheel formula | 6 X 4 |

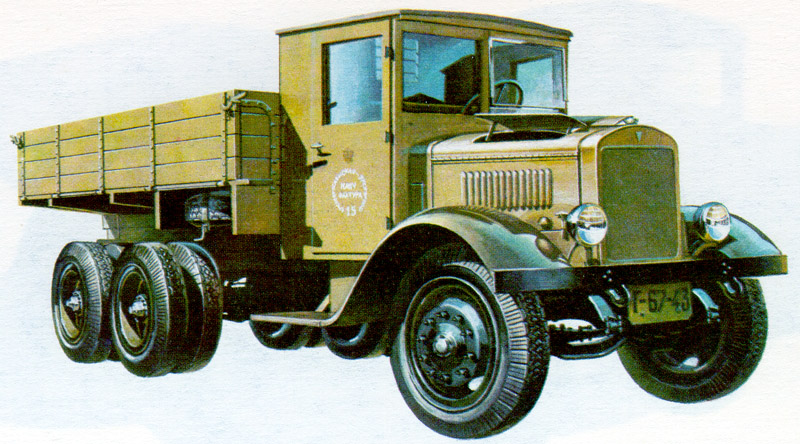

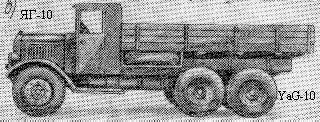

| Pictures | 59 KB (color, side view,
drawing [106]) 4 KB (b/w, side view [3]) 173 KB (color, front view [3]) 51 KB (b/w, side view [1]) |
